The following figure shows the recommended site layout. If your site layout requires
dierent placements, prepare for them when ordering your equipment by, for example,
planning for dierent cable lengths. For more information about available options for each
sensor, see the relevant sensor documentation.

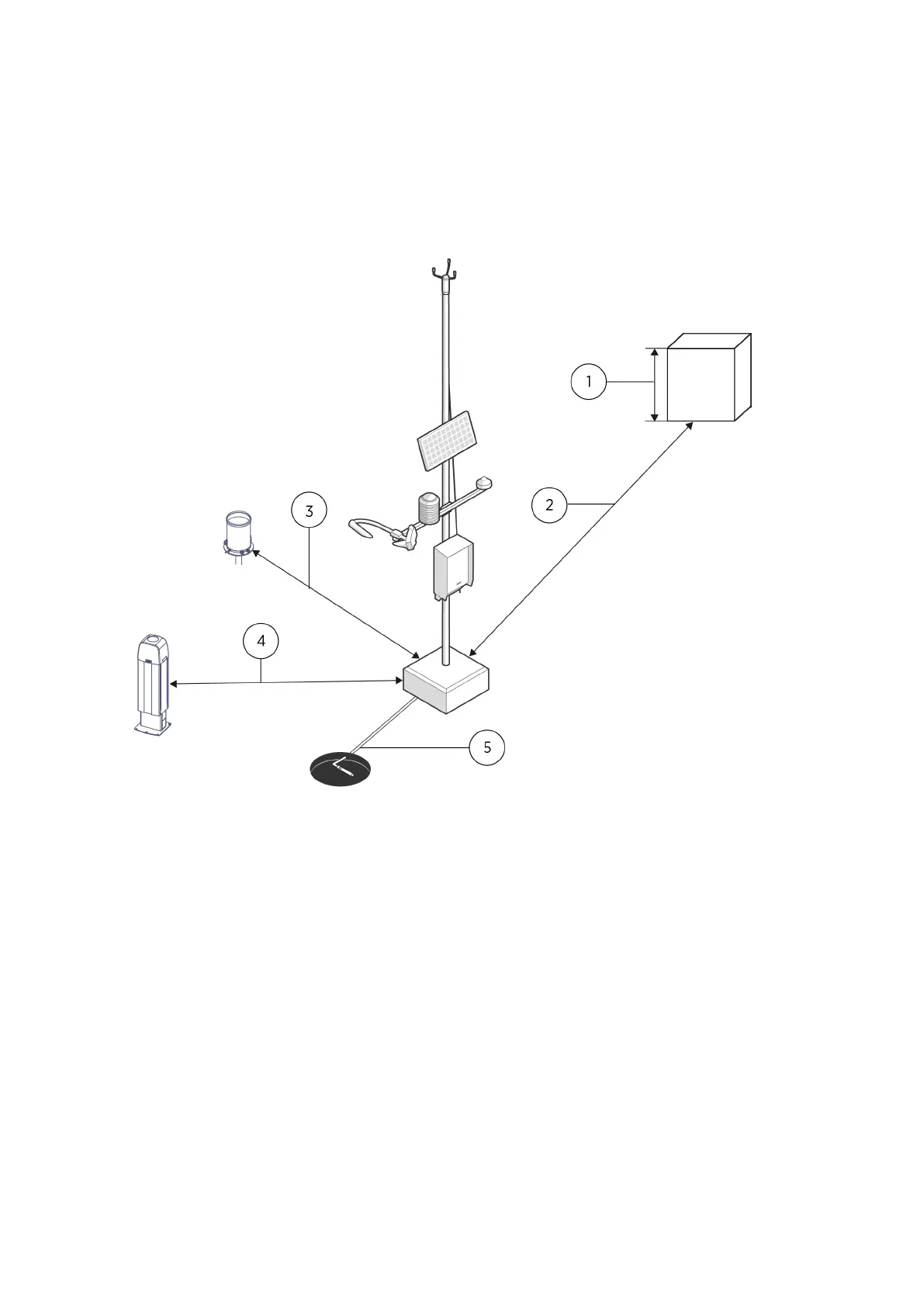

Figure 3 Recommended Site Layout with Distances
1 Object of height H
2 Minimum distance to the object is 10 × H
3 Maximum distance to rain gauges is 6 m (19 ft 8 in)
4 Maximum distance to ceilometer is 8 m (26 ft 3 in)
5 Maximum distance to subsurface sensors is 10 m (32 ft 10 in) or 35 m (114 ft 10 in) with
an extension cable
Chapter 3 – Installation Preparation
25
