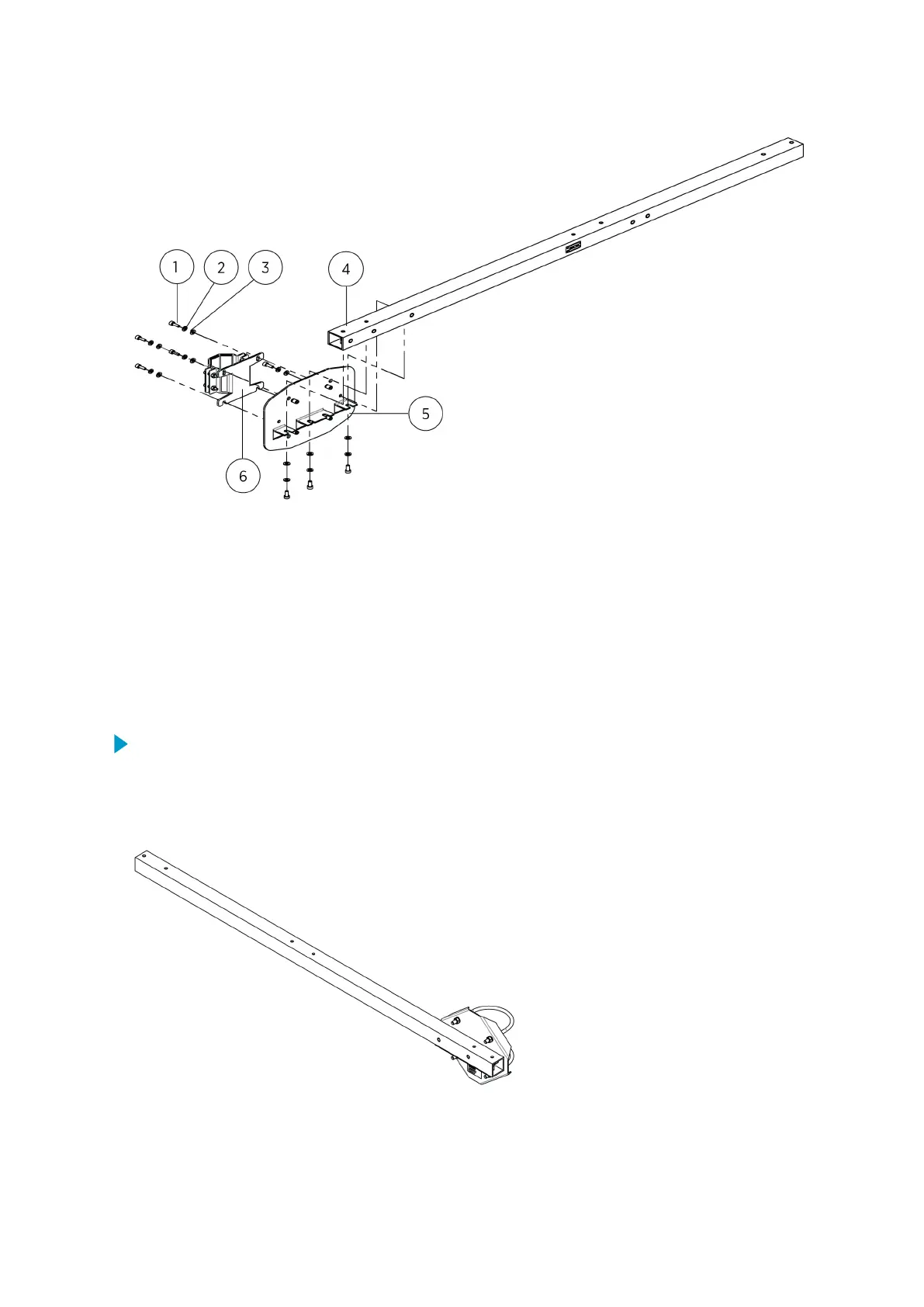

Figure 26 DKP060SUP1 Installation Accessories
1 Hex screw M6×30 DIN912 A4 (4 pcs)
2 Spring lock washer A6 DIN127 A4 (4 pcs)
3 Flat washer A6 DIN125 A4 (4 pcs)
4 Sensor support arm (10391)
5 Mounting plate
6 APPK-SET
1. Mount the sensor support arm to the mast using a U‑bolt or an APPK‑SET and the
mounting plate.
2. Use a spirit level to verify that the arm is level.
Figure 27 DKP12SUP1 Installed
Chapter 10 – Sensor Support Arm Installation
95
