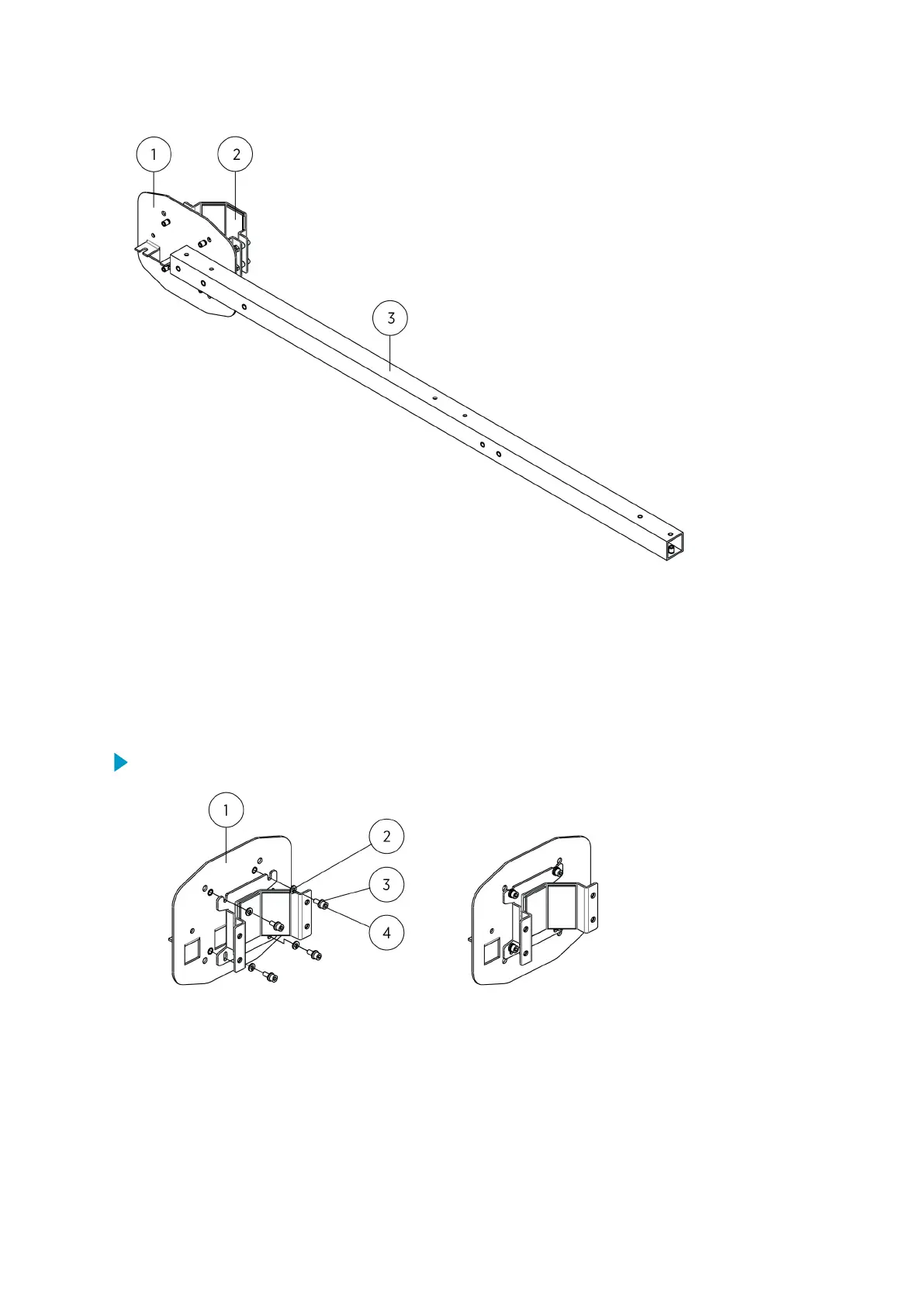

Figure 29 DKE110FSUP1 Installation Accessories

1 Mounting plate (META00253)

2 Mounting kit (APPK-SET106)

3 Sensor support arm (10391)

DKE110FSUP2 has 2 sensor support arms.

1. Attach the backplate of the mounting kit to the mounting plate.

1 Mounting plate

2 Flat washer A6 DIN125 (4 pcs)

3 Spring lock washer A6 DIN127 A4 (4 pcs)

4 Hex screw M6×30 DIN912 (4 pcs). Tightening torque 5 Nm.

Chapter 10 – Sensor Support Arm Installation
