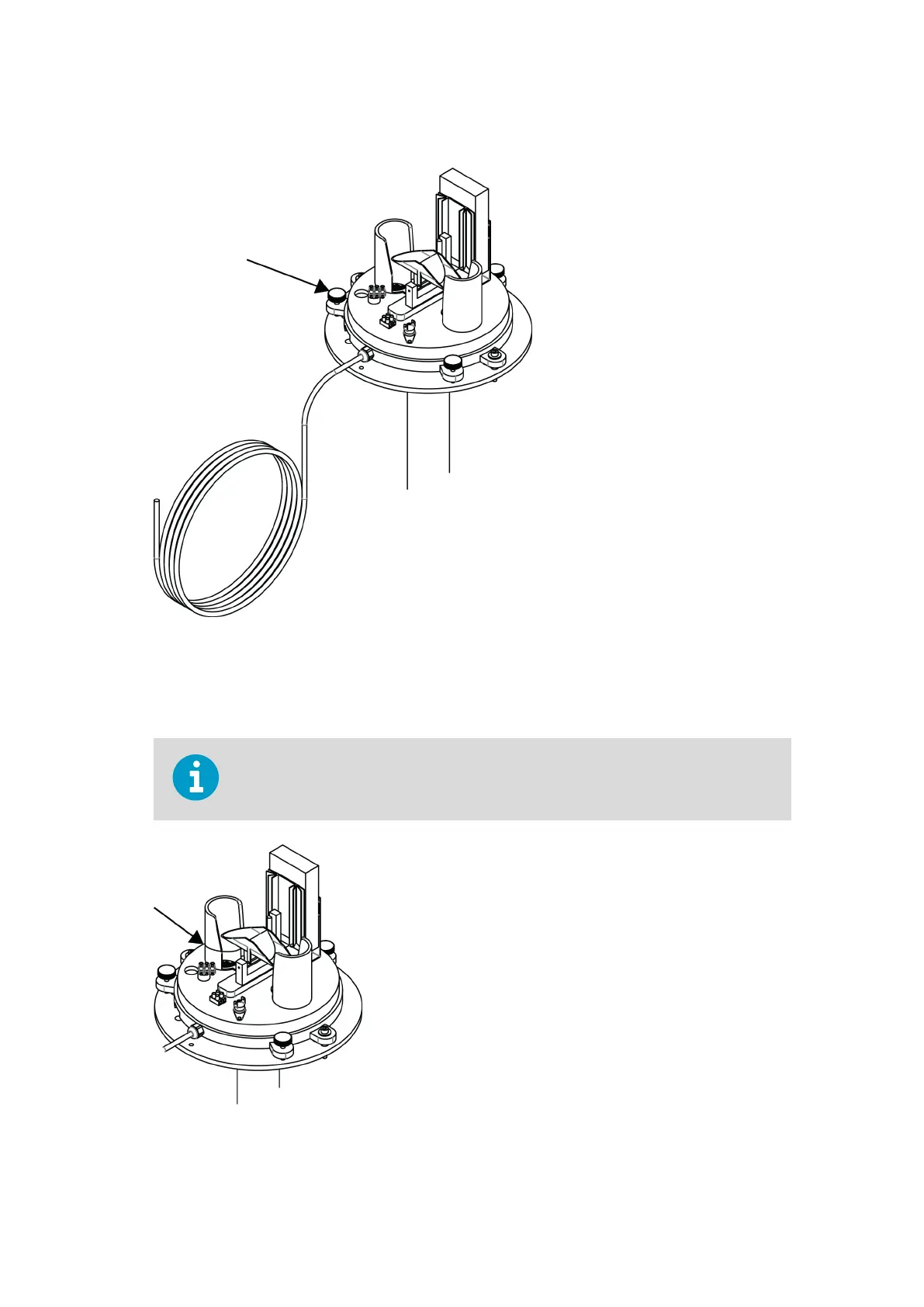

3. To level the sensor, use a spirit level and turn the leveling screws accordingly.

4. Tighten the hex screws.

5. Carefully remove the rubber band, which is

ﬁtted for transportation purposes, and

check that the bucket pivots easily.

The sensor does not report precipitation until you remove the rubber band.

AWS310/AWS310-SITE Installation Manual M211584EN-F

204
