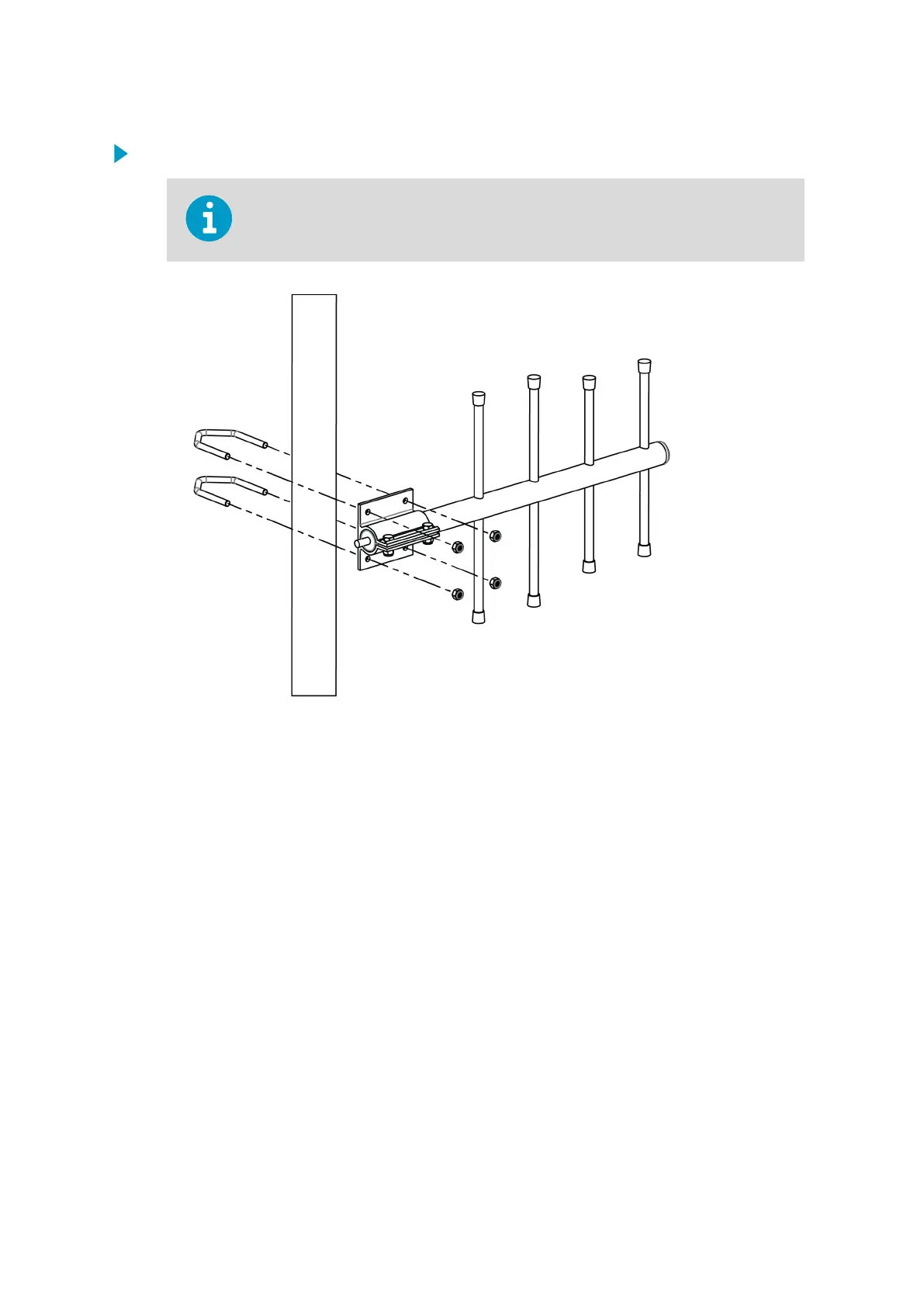

1. Fasten the antenna to the mounting bracket using the bolts and nuts provided.
Make sure that the marking DN on the antenna points downwards.
2. Fasten the assembly to the mast using the V‑bolts. Tighten the nuts loosely.
3. Align the antenna.
Sighting along the antenna, turn the whole antenna and mast mounting clamp
assembly until the antenna is pointing to the receiving antenna.
4. Guide the antenna cable along the mast, keeping it away from the grounding cable.
5. Secure the cable with cable ties.
6. Tighten the V‑bolts.
7. Secure the antenna cable to the mast using cable ties.
More Information
‣
Connecting Communication Cables (page 224)
Chapter 8 – Communication Device Installation
81
