Press the Temperature Button (or use the Navigation Buttons) to cycle
through the temperature screens until you reach the desired screen. See
Appendix C - System Maps for detailed navigation maps.

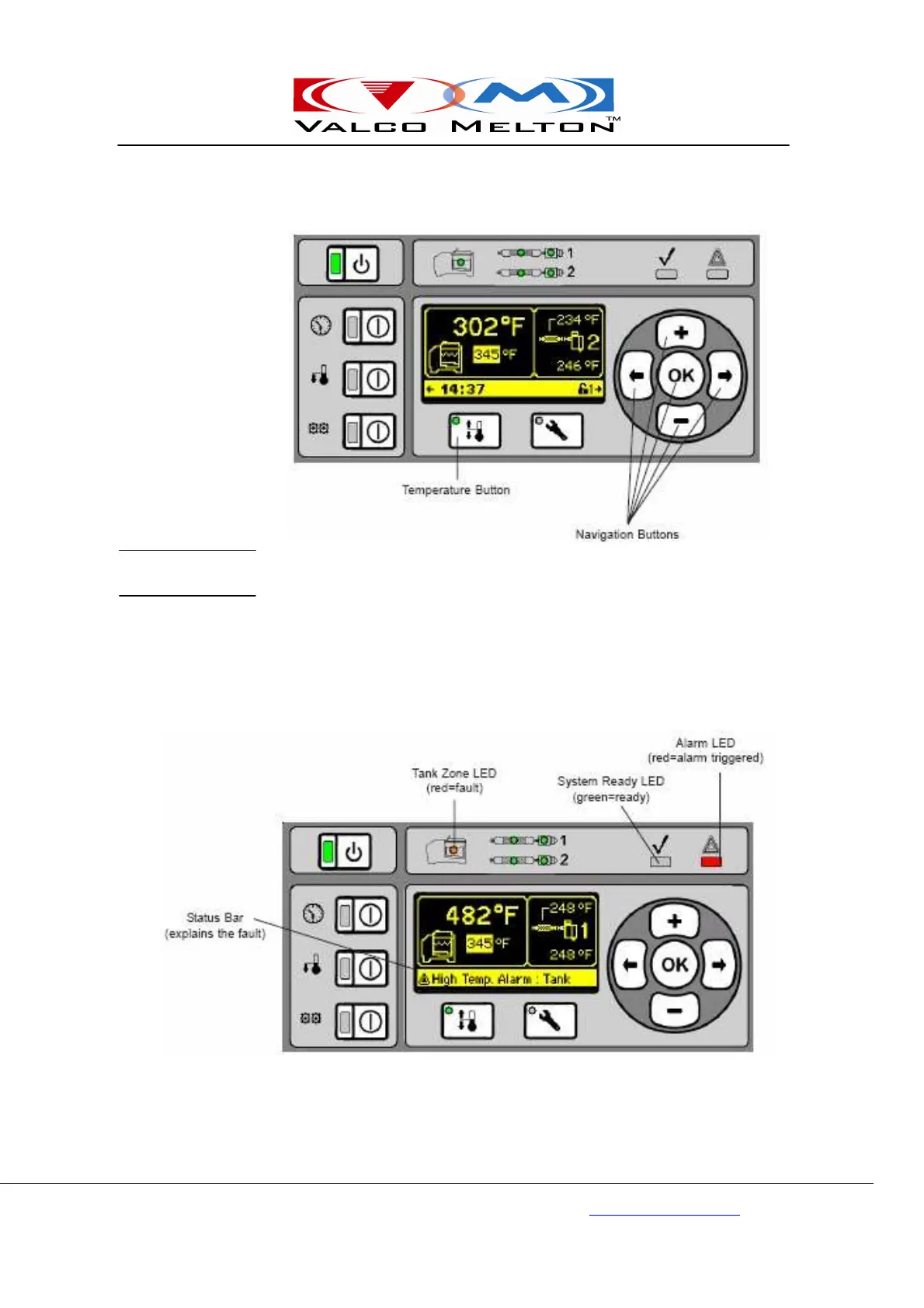

The Control Panel contains LEDs that indicate the status of each heated
zone. When the zone is in warm-up mode, the LED will illuminate green
and stay on continuously. Once the zone reaches its setpoint temperature,
the LED will blink on and off indicating that the heaters are switching on and
off to maintain the setpoint temperature. If the LED illuminates red, it
indicates a fault for that zone. The status bar will provide a more detailed
explanation of the fault. Also, if the fault triggers a temperature alarm, the
Temperature Alarm LED will illuminate red (see Section 5 - Setup, “Over
Temperature Alarm” and “Under Temperature Alarm” for details).
The system is ready (and the System Ready LED illuminates green) when
all zones reach their respective temperature setpoints minus the System
Ready Temperature Offset.
