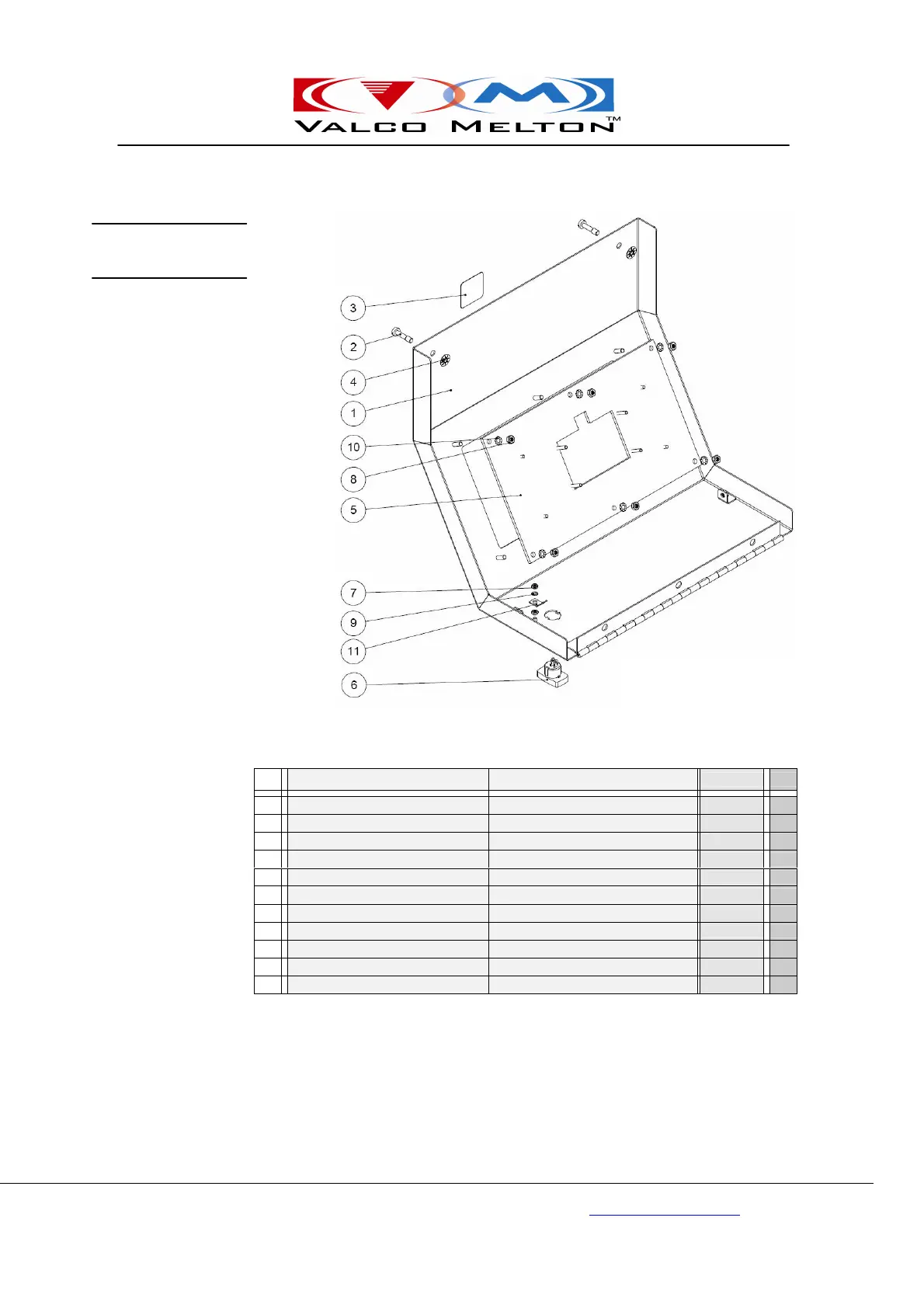

VALCO MELTON D4-E - Front Panel Assembly Parts

MM101 – D-4E HOT MELT UNIT 88
VALCO MELTON S.L.U. Pol. Ind. Agustinos C/G 34 3116 0 ORCOYEN, NAVARRA
TEL: +34 948 321580 Fax: +34 948 326584 melton@melton.es www.valcomelton.com
Nº Descripción Description Ref. Qty
1 Panel tarjeta Card panel 775XX864 1
2 Tornillo amarre carcasas Screw 2
3 Pegatina riesgo eléctrico Sticker electric risks 1
4 Reten SOUTHCO SOUTHCO detent 2
5 Conjunto pantalla / tarjeta de control Overlay assembly 137XX010 1
6 Conjunto interruptor Cable assembly, power switch 029XX379 1
7 Tuerca hexagonal M3 inox Stainless M3 hexagonal nut 2
8 Tuerca hexagonal M4 inox Stainless M4 hexagonal nut 6
9 Arandela dentada M3 inox Stainless M3 washer 1
10 Arandela dentada M4 inox Stainless M4 washer 6
11 Terminal faston M-panel TE938 Terminal faston M-panel TE938 1
Front panel
Assembly
