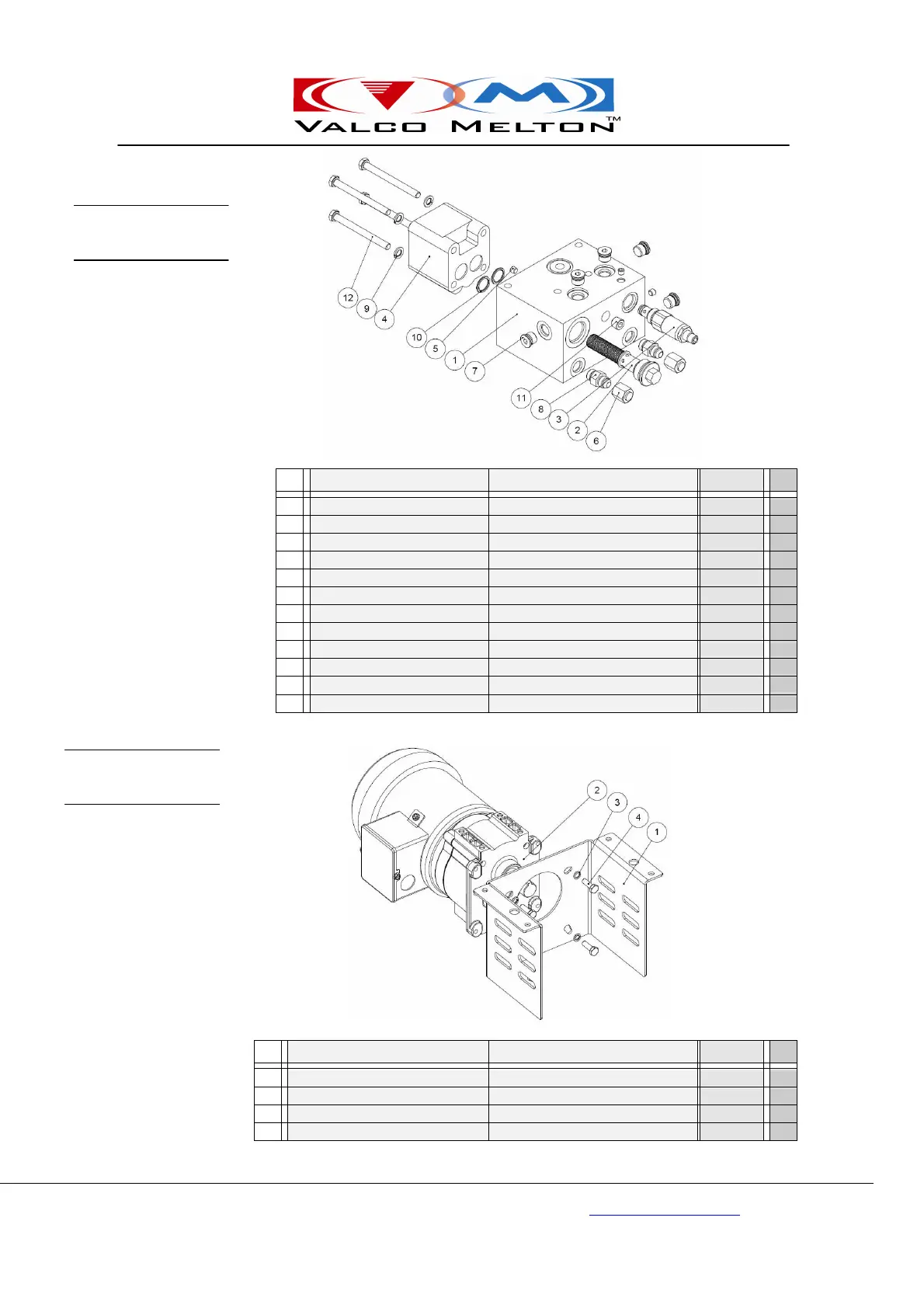

VALCO MELTON D4-E - Manifold and Motor Assembly Parts

MM101 – D-4E HOT MELT UNIT 87
VALCO MELTON S.L.U. Pol. Ind. Agustinos C/G 34 3116 0 ORCOYEN, NAVARRA
TEL: +34 948 321580 Fax: +34 948 326584 melton@melton.es www.valcomelton.com
Nº Descripción Description Ref. Qty
1 Distribuidor Manifold 775XX853 1
2 Conjunto filtro Filter assembly 593XX461 1
3 Válvula Valve, pressure relief 707XX222 1
4 Bomba , anchura standard Gear puma, Standard width 1
5 Tapon 1/16 NPT Plug, pipe, socket, 1/16 NPT 799XX548 3
6 Tuerca 3/8 X 1/2 LG JIC-CAP, 3/8I X 1/2 LG - STEEL 795XX508 2
7 Tapon 9/16” con junta Plug 9/16” with seal 5
8 Racor recto 9/16 M/M junta viton 9/16 M/M straight bushing 2
9 Arandela grover 8 inox Stainless 8 grover washer 4
10 Junta torica viton 17x2.62 17x2.62 viton o’ring 2
11 Tapon 1/4” GAS NPT 1/4" GAS NPT plug 1
12 Tornillo hexagonal M8x90 M8x90 hexagonal screw 4
Nº Descripción Description Ref. Qty
1 Soporte motor Motor support 775XX856 1
2 Motor de engranajes D4-E Gear motor D4-E 110XX357 1
3 Arandela 1/4 zinc Lock washer 1/4 zinc 798XX735 4
4 Tornillo hexagonal 1/4-28 X 3/4 zinc HHCS 1/4-28 X 3/4 zinc 884XX004 4
Manif
old
Assembly
Motor Assembly
