VALCO MELTON D4-E - Central Cover Assembly Parts

MM101 – D-4E HOT MELT UNIT 89
VALCO MELTON S.L.U. Pol. Ind. Agustinos C/G 34 3116 0 ORCOYEN, NAVARRA
TEL: +34 948 321580 Fax: +34 948 326584 melton@melton.es www.valcomelton.com
Nº Descripción Description Ref. Qty
1 Carcasa Cover 775XX863 1
2 Tapa deposito Lid, reservoir 775XX861 1
3 Soporte tapa deposito Bracket, reservoir lid 775XX862 1
4 Pegatina riesgo temperaturas Sticker temperatura risks 1
5 Asa grande negra Black handle 1
6 Tornillo cabeza redonda M6x10 BHCS M6x10 LG, S.S 784XX491 3
7 Tornillo allen M5x16 inox Stainless M5x16 allen screw 2
8 Arandela plana M6 M6 washer 2
9 Tuerca hexagonal M3 inox Stainless M3 hexagonal nut 2
10 Arandela dentada M3 M3 washer 1
11 Terminal faston M-panel TE938 Terminal faston M-panel TE938 1

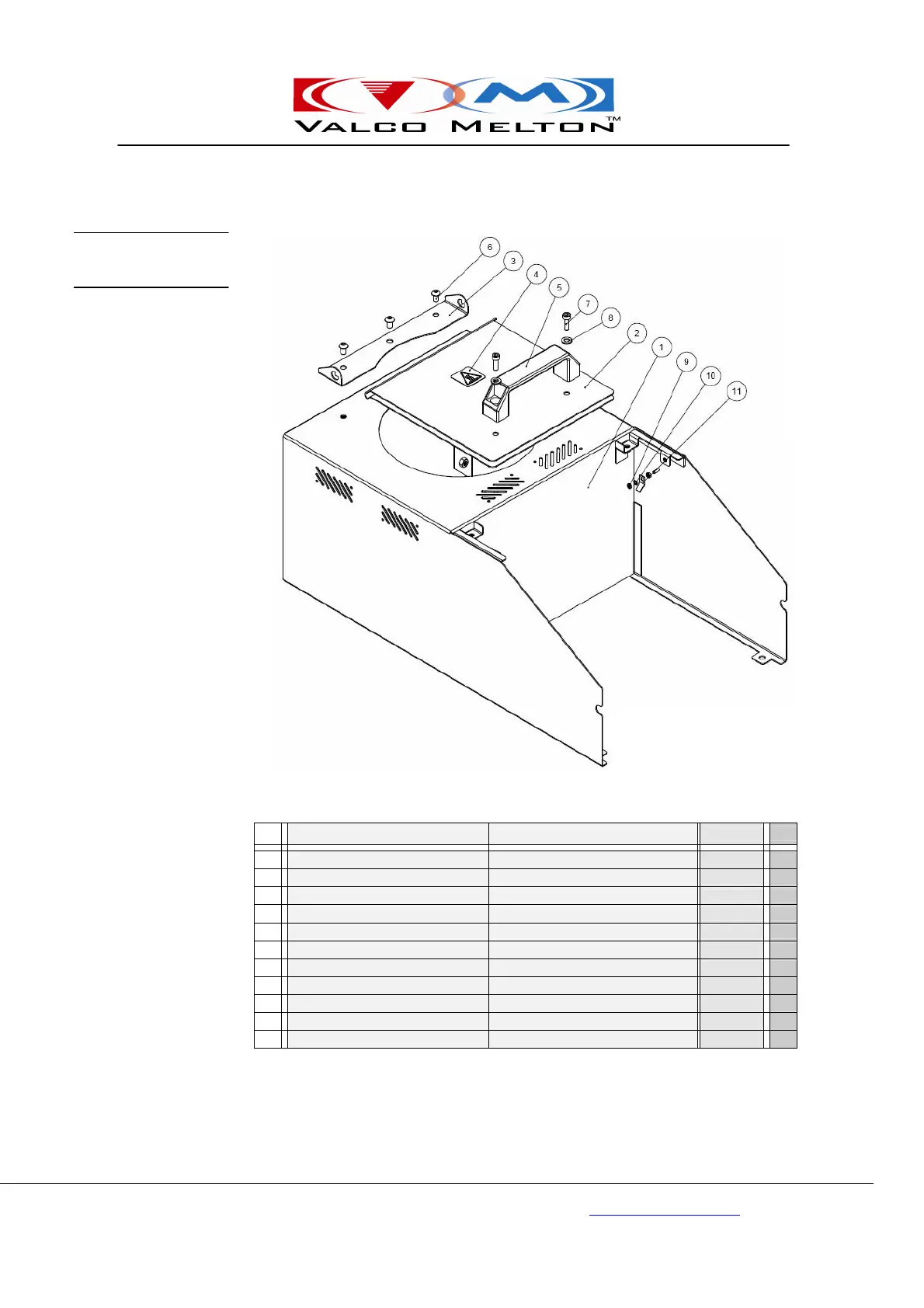

Central Cover
Assembly
