VALCO MELTON D4-E - Rear Panel Assembly Parts

MM101 – D-4E HOT MELT UNIT 90
VALCO MELTON S.L.U. Pol. Ind. Agustinos C/G 34 3116 0 ORCOYEN, NAVARRA
TEL: +34 948 321580 Fax: +34 948 326584 melton@melton.es www.valcomelton.com
Nº Descripción Description Ref. Qty
1 Panel trasero Rear panel 775XX865 1
2 Conjunto conector pistola/manguera Hot melt gun/hose cable assy 029XX383 1
3 Conjunto conector pistola/manguera 2 Hot melt gun/hose 2 cable assy 1
4 Arandela dentada M3 Me washer 9
5 Tuerca hexagonal M3 inox Stainless M3 exagonal nut 10
6 Terminal faston M-panel TE938 Terminal faston M-panel TE938 1
7 Pegatina riesgo de temperatura Sticker temperature risks 1
8 Pegatina riesgo electrico Sticker electric risk 1

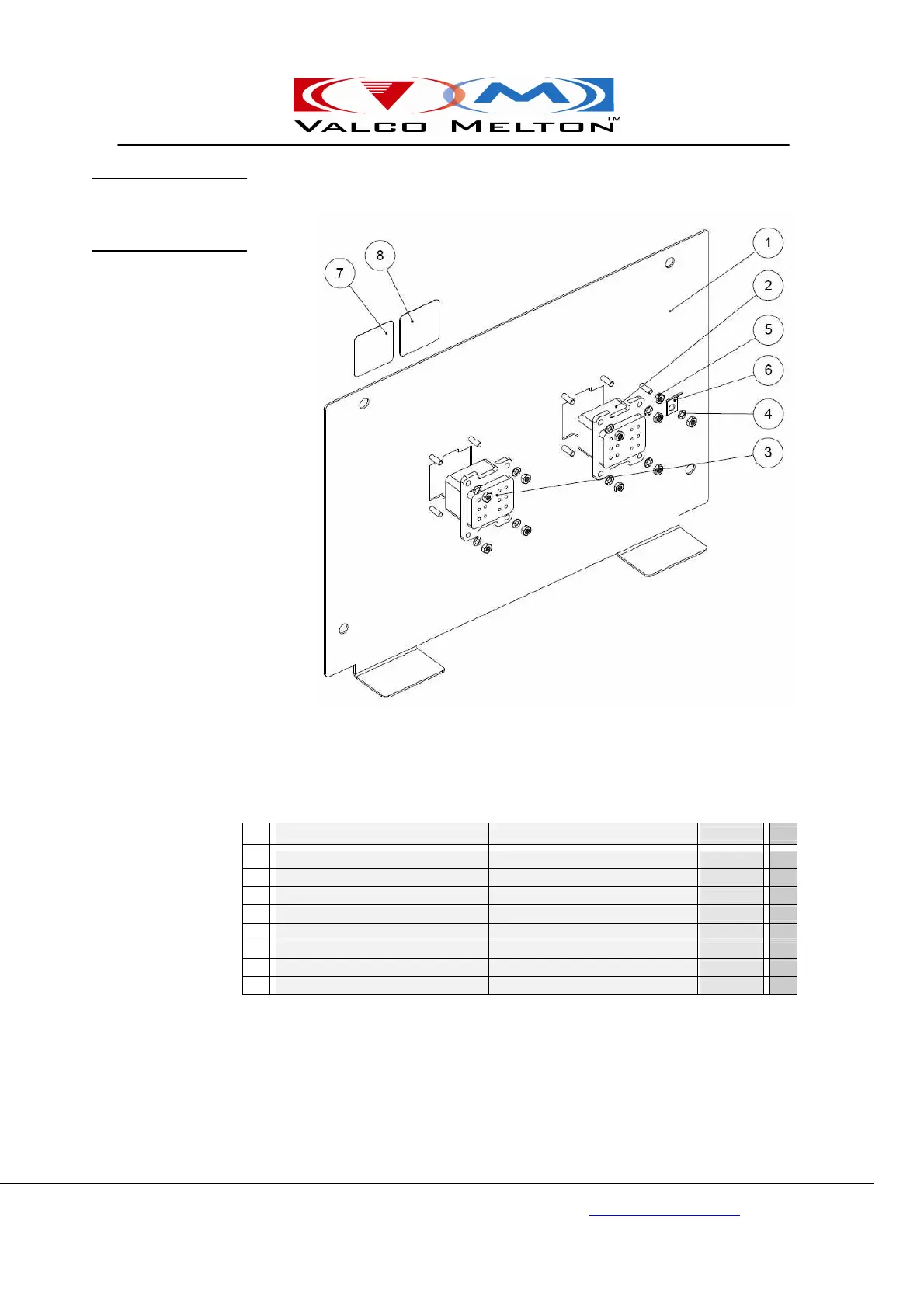

Rear panel
Assembly
