Valtra 6100 User Manual

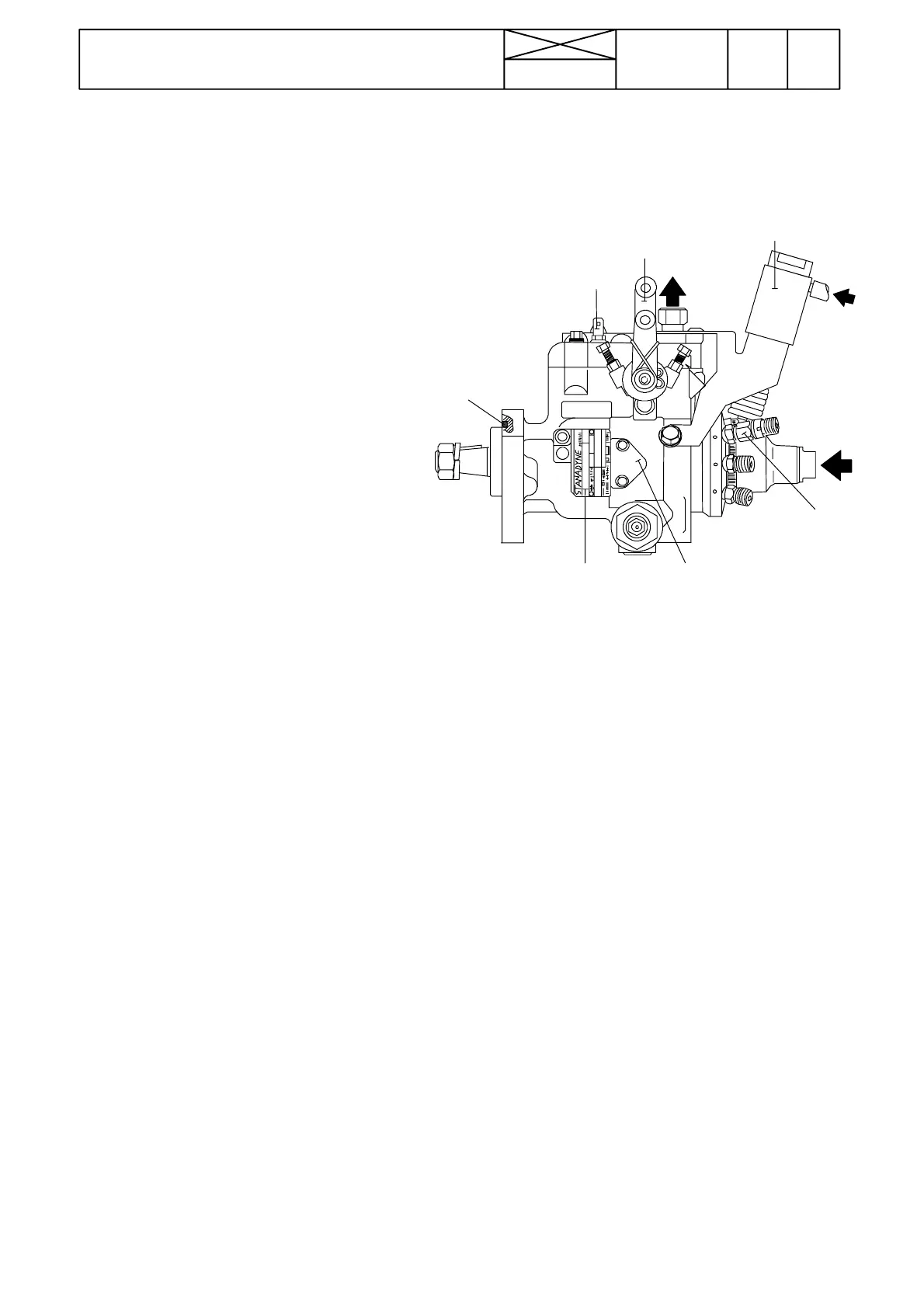

Picture. Stanadyne distributor pump
1. Sealing ring 8368 40858
2. Type plate with pump order number (see page 220/14)
3. Timing marks under the cover
4. Fuel inlet
5. Return fuel/overflow valve
6. Revolution lever
7. Connector for wire to electric stop solenoid
8. Aneroid (E ---engines)
9. Boost pressure (E ---engines)
10. Detector ring for injection timing (E ---engines)
1
23
4
5
6
7
8
9
10
20
Model Code Page
22. Fuel system
1. 9. 2002
6200--8550 220 10
1. 8. 2000
Specifications with Stanadyne distributor pump
Note! 6200, 8000R, 8050, 8150, 8450 and 8550 (also latest 6300 and 6400 from week 24/01 incl.) tractors have Stanadyne
distributor pump. Also 6250Hi---8550 Hi tractors have this pump.The pump is equipped with an electric running sol e noid (ignition
switch stop) and with an automatic bleeding syste m. Stanadyne pump internal lubrication happens with aid of fuel. A separate
fuel feed pump is of a membrane type and it is driven by the engine camshaft. The system includes also the Thermostart glow
plug.
Stanadyne distributor pump
Typ e:
--- 6200, 6300 and 6400 (24/01---), 6250Hi ---6850Hi DB4 (four pressure plungers)....................................
--- 8000R DB4 (four pressure plungers).......................................................................
--- 8050 DB 2 (two pressure plungers).........................................................................
--- 8150---8550 DB 4 (four pres sure plungers)...................................................................
Injection order:
--- 4 2 0 --- e n g i n e s 1---2---4---3.................................................................
--- 620/634---engines 1 --- 5 --- 3 --- 6 --- 2 --- 4..............................................................
Direction o f rotation Clockwise..............................................................
Injection advance, see page 220/14:
Tightening torque of pump gear wheel nut 90 Nm...........................................
Fuel feed pump
Construction membrane pump, separate....................................................................
hand pump
Fuel feed pressure (static ) 0,48 bar (48 kPa).........................................................
Fuel feed pressure at test point 0,2---0,5 bar....................................................
Injectors (see also page 220/15).
Typ e five hole nozzle...........................................................................
Opening pressure see page 220/15...............................................................
Setting pressure
1
) see page 220/15...............................................................
Sealing ring nro 8999 01495.....................................................................
Injector nozzle sleeve, ti ghtening torque 60 Nm.............................................
Injector attaching nuts (on studs) 15 Nm...................................................
1
) Value to be used when adjusting the opening pressure of a new or used injector.
