36
Model Code Page
21. Engine
15. 5. 1993
6000--8750
210 14
1. 9. 1992

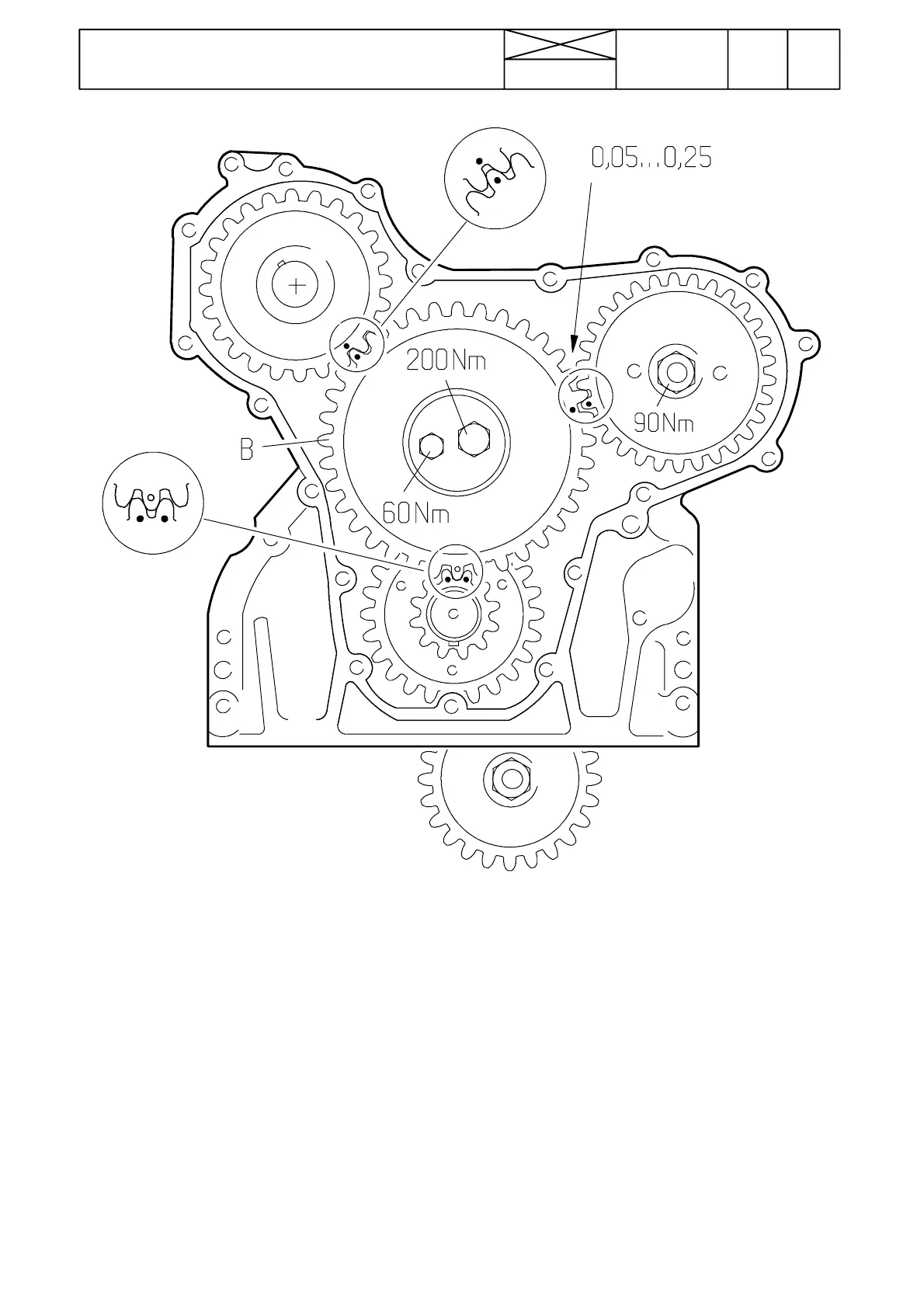

Timing gears
The timing gear train consists of hardened, helically cut gear
wheels. The gears are encased by the timing gear casing
which is fitted to the front of the engine. The timing gear drives
the camshaft, fuel injection pump and oil pump.
The idler gear is supported with a bearing sleeve on the shaft
on the front face of the cylinder block.
