V almet 6000---8400 tractors’ compressor type:
Diesel Kiki model DKS 15 CH.
Specifications
Number of cylinders 6 pcs.........
Cyl. diam x stroke ø34 mm x 24 mm...........
Max. revs 7000 r/min..................
Lubricating oil: Freol DS---83P or Exxon (Esso)
2980 (R12) or ZXL 100 PG (DH---PS) (Valtra UC
1300) if refrigerant R134a.
Oil volume: 200 cm
3
(2,0 dl)
Magnetic clutch:
Voltage 12 V (DC)....................
Starting moment 50 Nm............
Power consumption 44 W (max).........
Clutch clearance value 0,3---0,6 mm.......

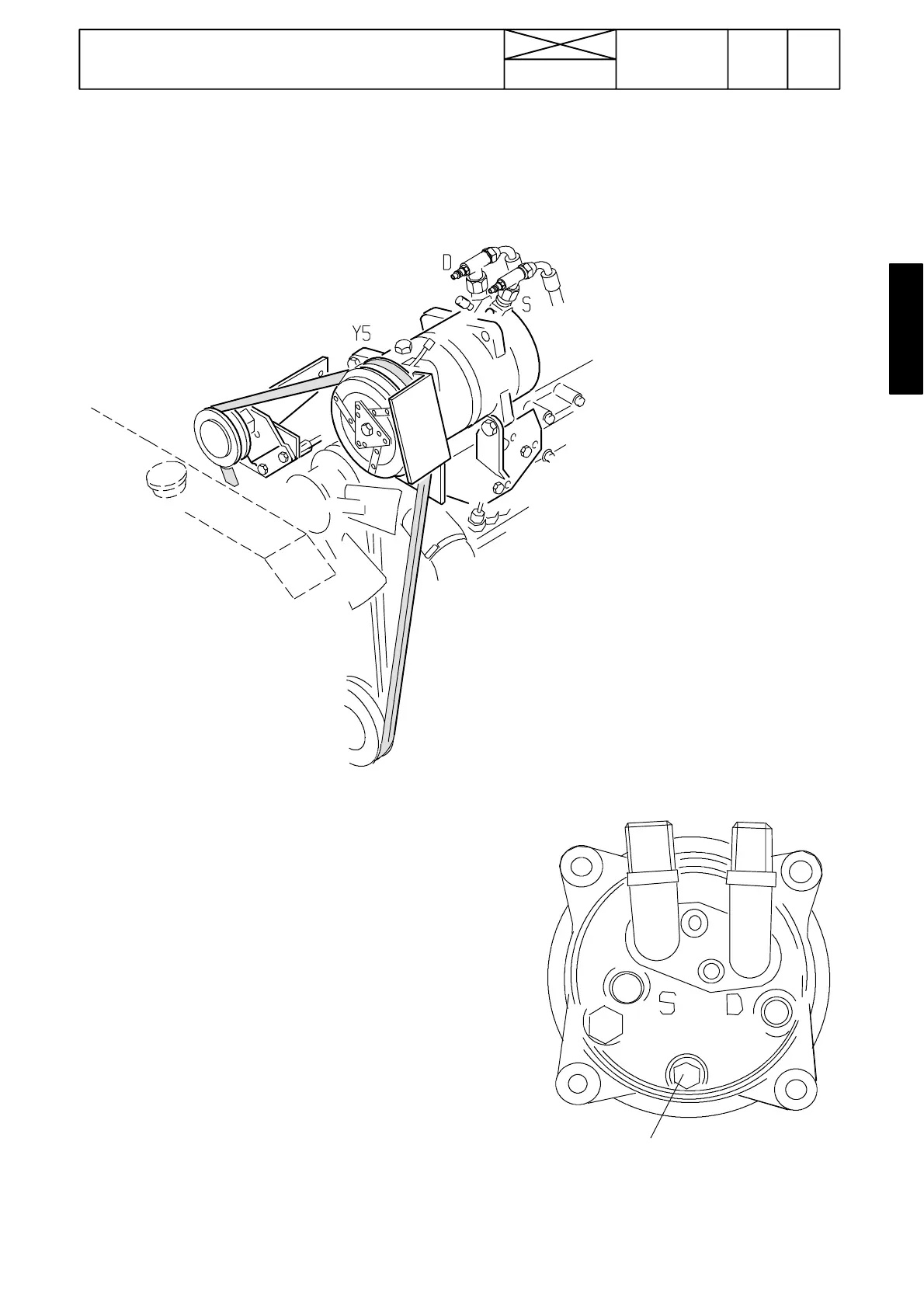

D=Discharge
S=Suction
Y5 = magnetic clutch
Draining/filling plug for lubricating oil.
Note! Do not open the plug, if the s ystem is filled
with refrigerant. Compressor oil should be stored in a
closed container. If refrigerant is freon R12, the ser-
vice valves are fitted on the rear side of the compres-
sor (S and D in picture above).
The service valves (D and S) are fitted on the pipe
connectors on air conditioners that have refrigerant
R134a as in figure below
If the compresso r should be c hanged, contact an expert
who knows refrigerating systems.
Anewcompressorisfilledwith2,0dloilinthefactory.
Drain the oil in the new compressor. 1,6 dl oil must run
out. Pour the oil back to the compressor and fit the
plug. If the drained oil amount was not 1,6 dl, add or
reduce the oil volume to 1,6 dl (on account of the inter-
nal build---in, all oil in the compressor does not run out).
Note! If the s ystem is opened and refrigerant changed,
the compressor oil should also be changed. In this
case, fill the compressor with 2,0 dl oil.
Detach the new compressor protective caps very care-
fully so that the threads and connections do not
damage.
Tightening torques:
--- 3/4” connection on pressure side 24,5---29,5 Nm.
--- 7/8” connection on suction side 29,5---33,5 Nm.
1151
Model Code Page
83. Air conditioner
6000--8950
831 9
1. 8. 2000
1. 1. 1994
Compressor
