806
Model Code Page
45. Final drives
8. 11. 1990
6000--8750 451 2

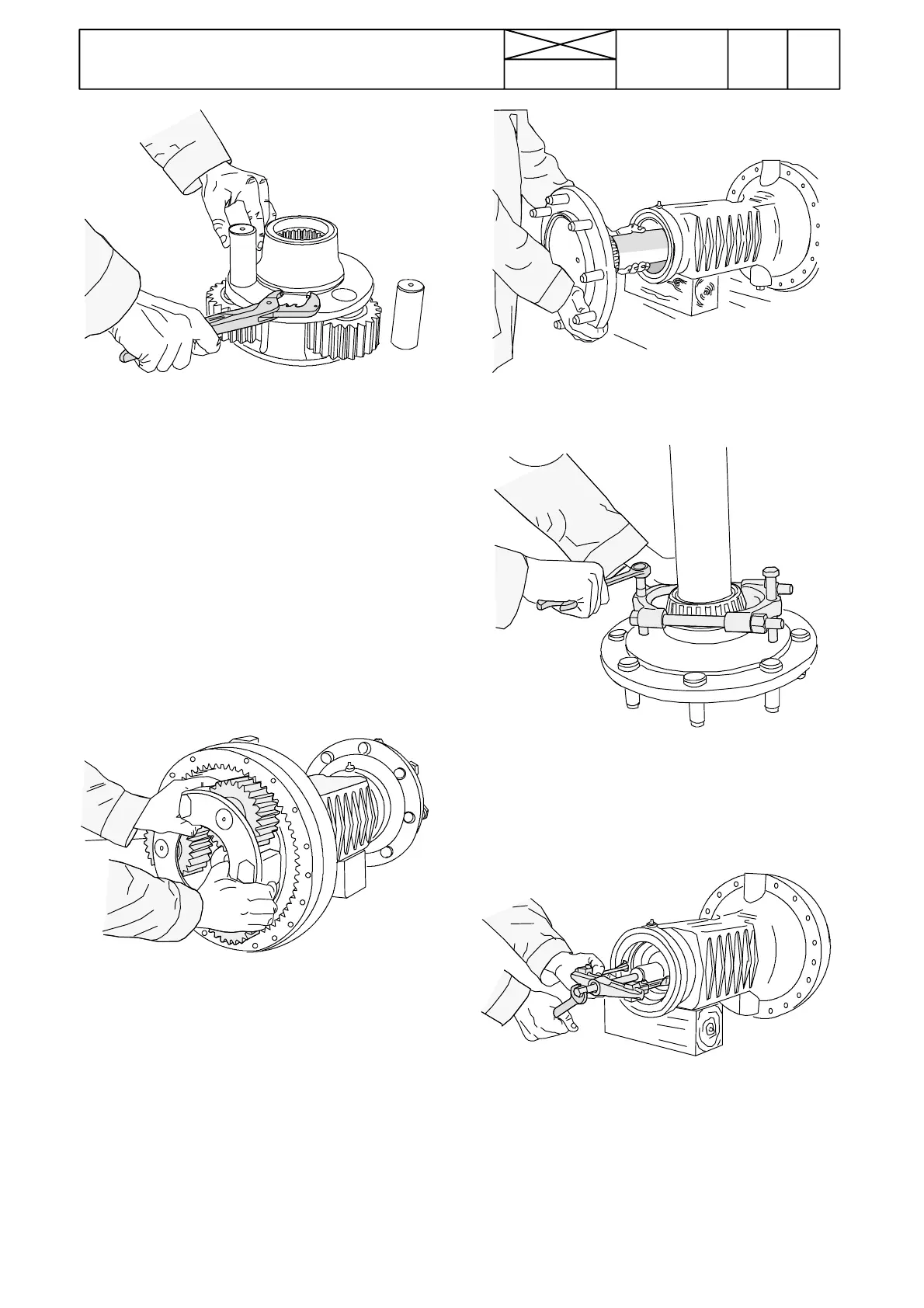

5. Press the bearing wear washers againstthe sidesof the pla-
netary gears and press them into the retainer. Compress the
lock ing spring and push the shaft studs into position and
make sure the lockingspring engagesthegroovein thestuds.
Note! Fit the attaching plate for the planetary gears retainer
before fitting the third planetary gear.
6. Push in 1,5 mm wire under the locking spring when the pla-
netary shaft studs have been fitted and wind the wire endsone
to one and a half turns and bend them.
7. a) Models 6100---6400 and 8000: the ring gear is fitted with
a tight press fit in the rear axle housing. Remove o r fitting the
gear should be done using stur dy hydraulic pressing tools.
7. b) Models 6600, 8100 and 8400: the ring gear can be loose-
ned with a drift. Before fitting the ring gear apply sealing com-
pound on the sides of the ring gear.
8. Push the planetary gear onto the splines on the outer drive
shaft. Secure the planetary gear by tightening the centre
screw (24 mm).
9. Adjust the bearing clearance of the outer drive shaft (para-
graph D) and fit the assembly to the tractor (paragraph E).
C. Changing bearings and seals for outer
drive shaft
1. Remove the final drives (instr. A) and detach the planetary
gear (i n s t r. B : 1 --- 2 ).
2. Tap at the end of the dr ive shaft so that it slides out of the
bearings. Pull the shaft out of the axle housing.
3. Remove the outer drive shaft bear ing using a puller. Warm
up a new bearing and fit it onto the shaft fully home.
Note! If the wear ring on the shaft has damaged, change it
before fitting the bearing.
4. Remove the outer seal for the shaft using a puller (fit a suita-
ble counter hold inside the rear axle housing).
