111
Model Code Page
33. Agroline ---instrument
1. 9. 2002
333 7
6200--8950Hi
5. Sensors and switches

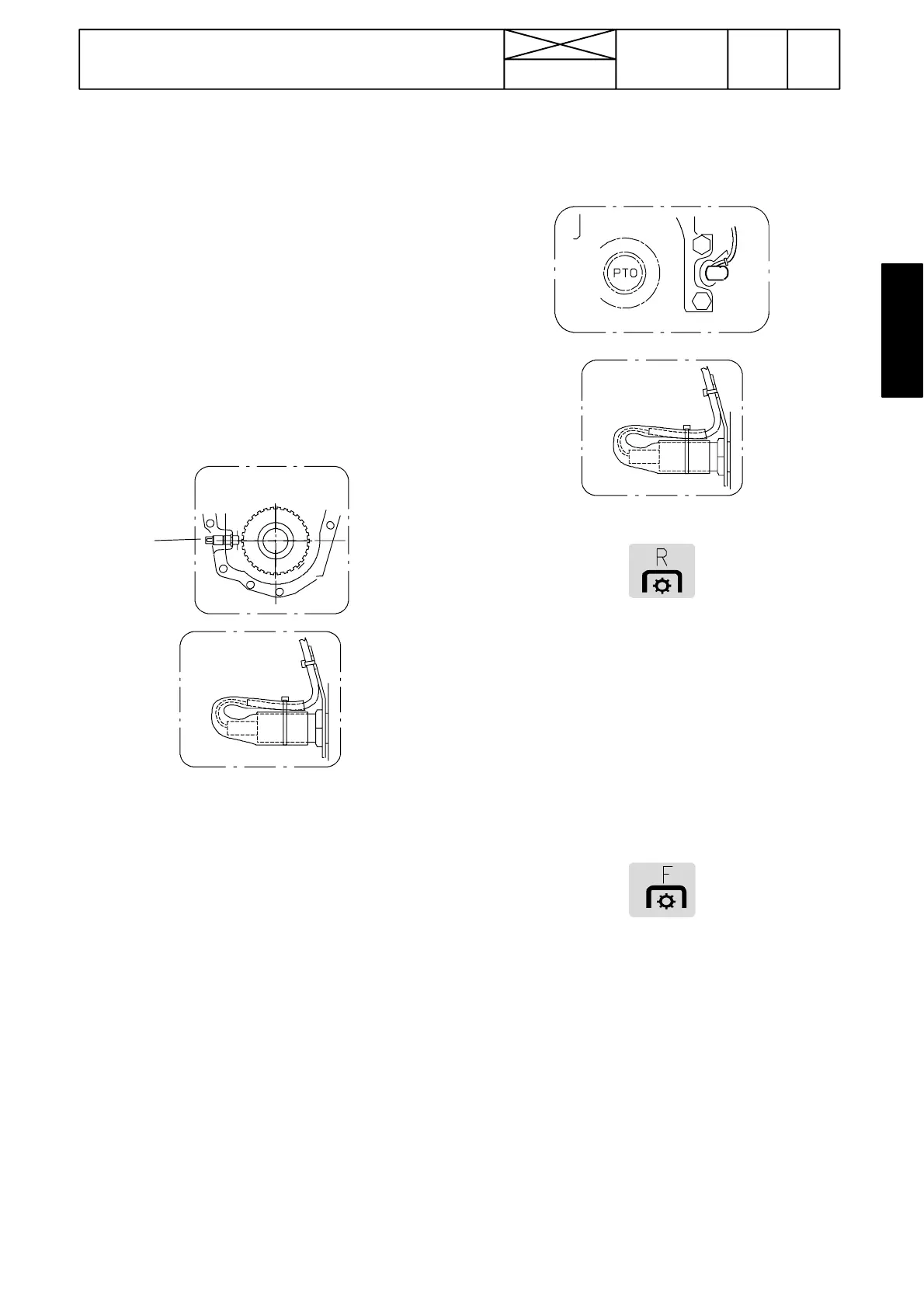

A. Gearbox speed sensor B6
(For monitoring the speed and distance)
Note! The sensor is placed in the lower part of t he shuttle
housing on the RH side of the gearbox. The sensor is the
same as in the Agrodata---instrument.
Note! If the driving speed and travelling distance values are
incorrect in the diplay, the reason can also be faulty calibra-
tion of the tyres, see page 333/4.
Note! The sensor resistanc e should be between 1,0---1,10
kΩ. It can be measured from pins X26/5 and X26/22.
If the resistance was infinite, it must be measured from sen-
sor poles, so that possible continuity problems can be iden-
tified.
B6
Changing the speed sensor, see page 331/4.
Note! The instruction are as for Agrodata --- instrument but
connectors have differences, see wiring diagrams.
B. Rear PTO speed sensor B7
(for monit oring PTO revs.).
B7
The sensor is the same as in Agrodata---instrument. The
sensor resistance should be 1,0---1,10 kΩ. The resistance
can be measured from pins X26/9 and X26/22.
If the resistance was infinite, it must be measured from sen-
sor poles, so that possible continuity problems can be iden-
tified.
Changing the sensor, see page 331/ 4
Note! The instruction are as for Agrodata --- instrument but
connectors have differences, see wiring diagrams.
IMPORTANT! If the tractor has front PTO, the speed signals
comes from alternator or separate speed sensor.
The Agroline---instrument has front PTO pilot light and its rota-
tion speed can be selected in the instrument LCD---display.
