33. Agrodata---instrument
6000--8950 331 1
1. 8. 2000
15. 4. 1995
Agrodata---instrument
Note! This is a different device as Agrodata performance
monitor shown under code 330. Agrodata is a f a c t o r y ---
mounted option. Standard equipment in HiTech tractors.
B
A
C

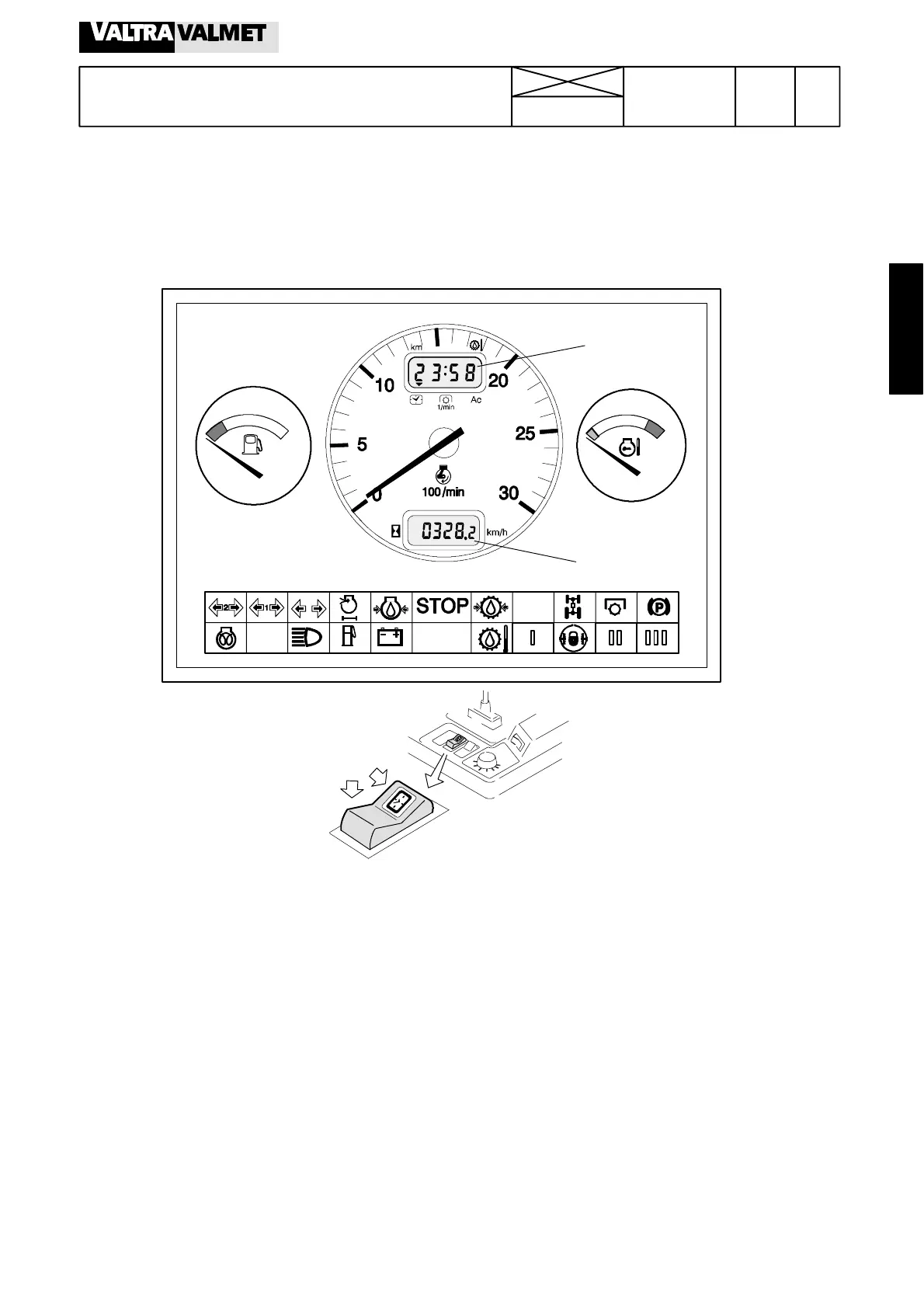

Agrodata has two digital number displays, which is fitted in
place of the standard instrument.
Agrodata has a rev. counter, a temperature gauge and a fuel
gauge as the standard instrument.
In addition, the lower digital display B shows:
1. Running hours, when the tractor is stationary (also when
the current is switched of).
2. Driving speed, when the tractor is moving (from 0,3 km/h.
There is letter L in front of the value, when the driving speed
is slower than 7 km/h).
The upper digital display A shows:
1. Time (allways when ignition is switched off)
2. PTO shaft rotation speed (r/min)
3. Position of lower links (0---99)
4. Distance travelled (up to1000 km, after which is zeroed)
5. Gearbox temperature (from +40˚C. LO is shown at lower
temperatures).
The different functions of the upper display can be changed
by pressing the rear edge (spring returned) of the switch C on
the LH side of the position control potentiometer. The black
arrow indicates which function is selected.
Tractors, which have Agrodata, have two rotation speed sen-
sors. One on the RH side of the reverse shuttle housing (dri-
ving speed, distance travelled) and another at the rear of the
tractor for measuring the PTO shaft rotation speed. The sen-
sors are the same as on AC IV system or in HiTech tractors.
