217
Model Code Page
45. Final drives
6200--8950
450 7
1. 8. 2000

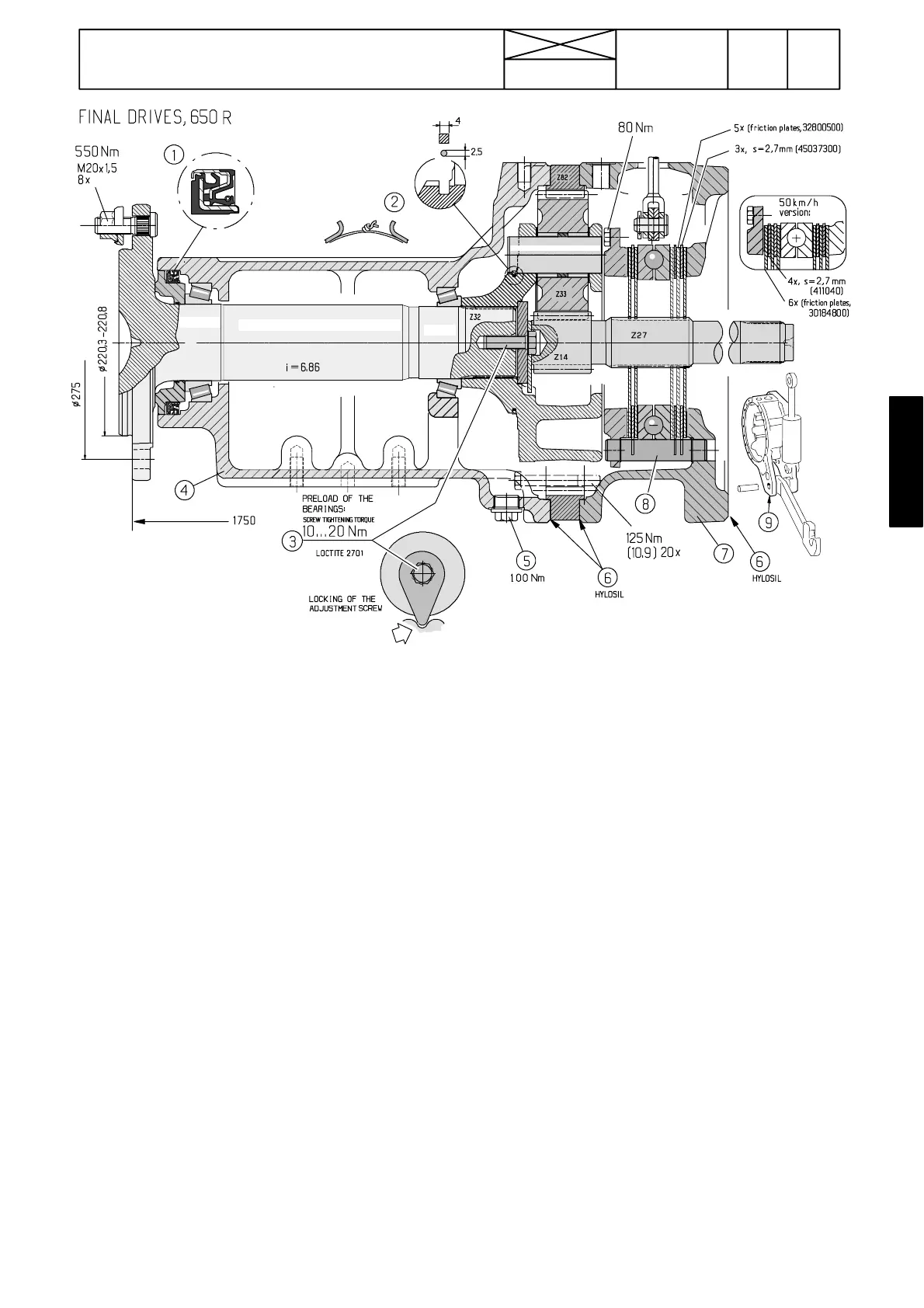

Picture 5. Final drives 650 with greater oil volume in transmission 550/650 (6200 ---8950).
These final drives in 6200 ---8950 tractors:
--- 6200 ---6400, K41106 ---.
--- 6250Hi ---8950Hi and 6800 ---8550, K36108 ---, *).
1. Hub axle outer oil seal has been changed into a cassette seal (inner oil seal and grease nipple removed)
2. Wind the wire ends one to one and a half turns and bend them
3. Bearing clearance is adjusted by tightening the centre bolt to 10---20 Nm. Apply Loctite 270 onto bolt threads.
4. Axle housing oil volume has been increased.
5. Oil draining plug
6. Sealing compound Hylosil RTV Grade A (UK 0067) onto the ring gear sides
7. Brake housing
8. Support bolt
9. Lower link attachment
Larger oil volume in transmission:
Dipstick min. mark 45 l
Max. mark 55 l
Extra max. mark 65 l
*) Also K26616, K26440, K25332, K25414, K23241, K23423, K23538, K34139, K34211, K34311, K34443, K34511, K35307.
