140 Nm
140 Nm
45 Nm (m12.9)
85 Nm
240 Nm (4
pcs)
Kuva 16. Etukoneisto 6000---8150
WRONG
RIGHT
846
Model Code Page
46. Front PTO
1. 11. 1998
6000--8150 463 4
1. 4. 1997
Picture 14. Front PTO on 6000---8150
Note! The max allowed (co ntinuous) loading in the engine
crankshaft is 400 Nm, which corresponds to an output of
78 kW (106 hp) in the PTO shaft at an engine speed of
1860 r/min. This must be observed, when large implements
are attached to the front PTO. Use a torque limiting clutch, if
necessary. With the torque l imiting clutch the max. torque
can reach up to 750 Nm.

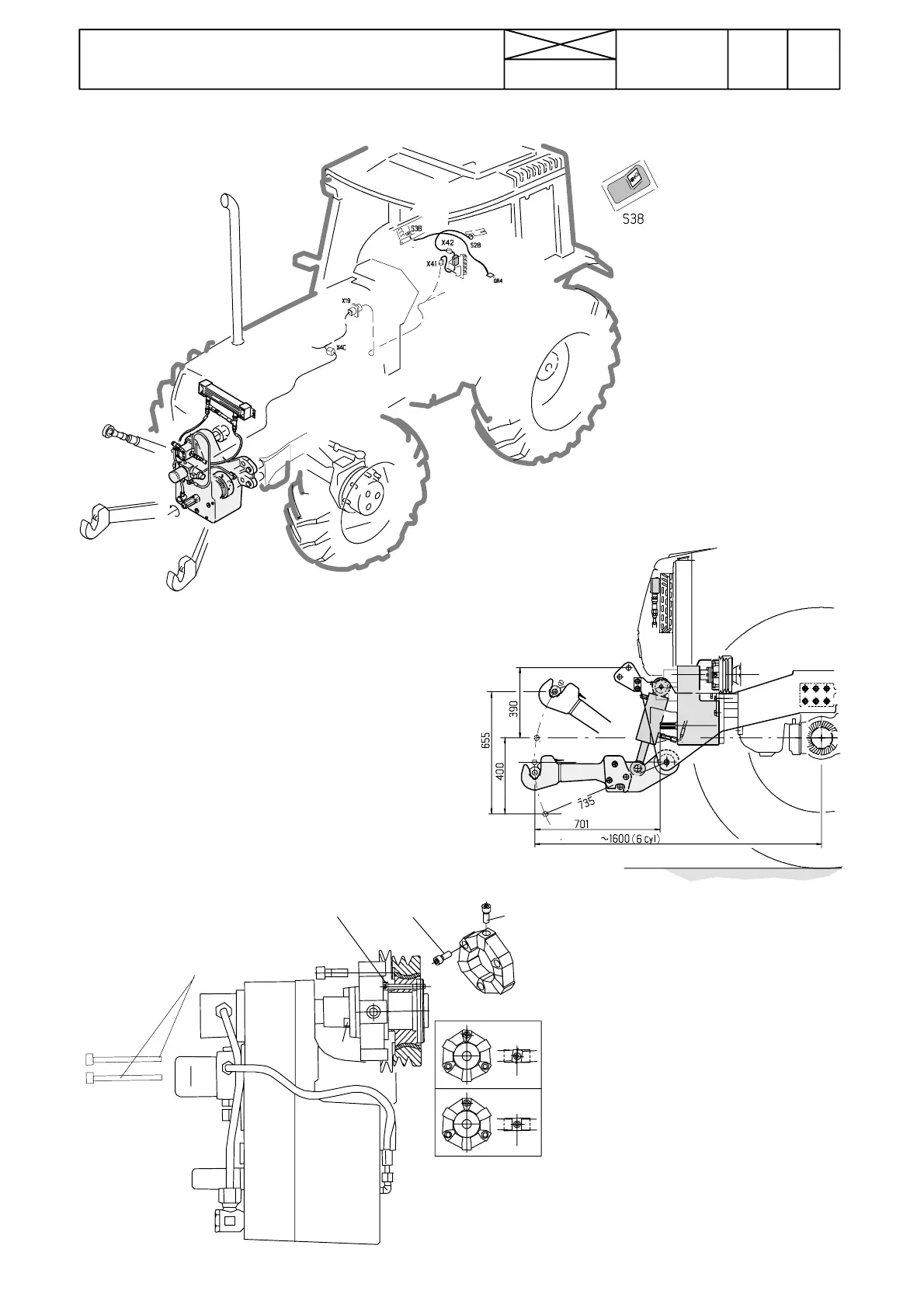

Picture 15. Front PTO and front lift, dimensional drawing
The PTO unit has been fastened to the
engine oi l sump front surface with four bolts.
There are spacer sleeves of 80 mm (6---cyl.
engines) between the o il sump and the PTO
unit.
There is an elastic rubber joint between the
crankshaft front end and the front PTO. On
the 4---cylinder engines (6000---6800), the
elastic joint is placed inside the belt pulley.
Note! Before removing the front PT O unit,
the engine coolant should be drained and
the engine radiator and its cowl must be
removed.
