Fuses and the most important
circuits they protect
Some circuits m ay be protected by severa l
fu se s.

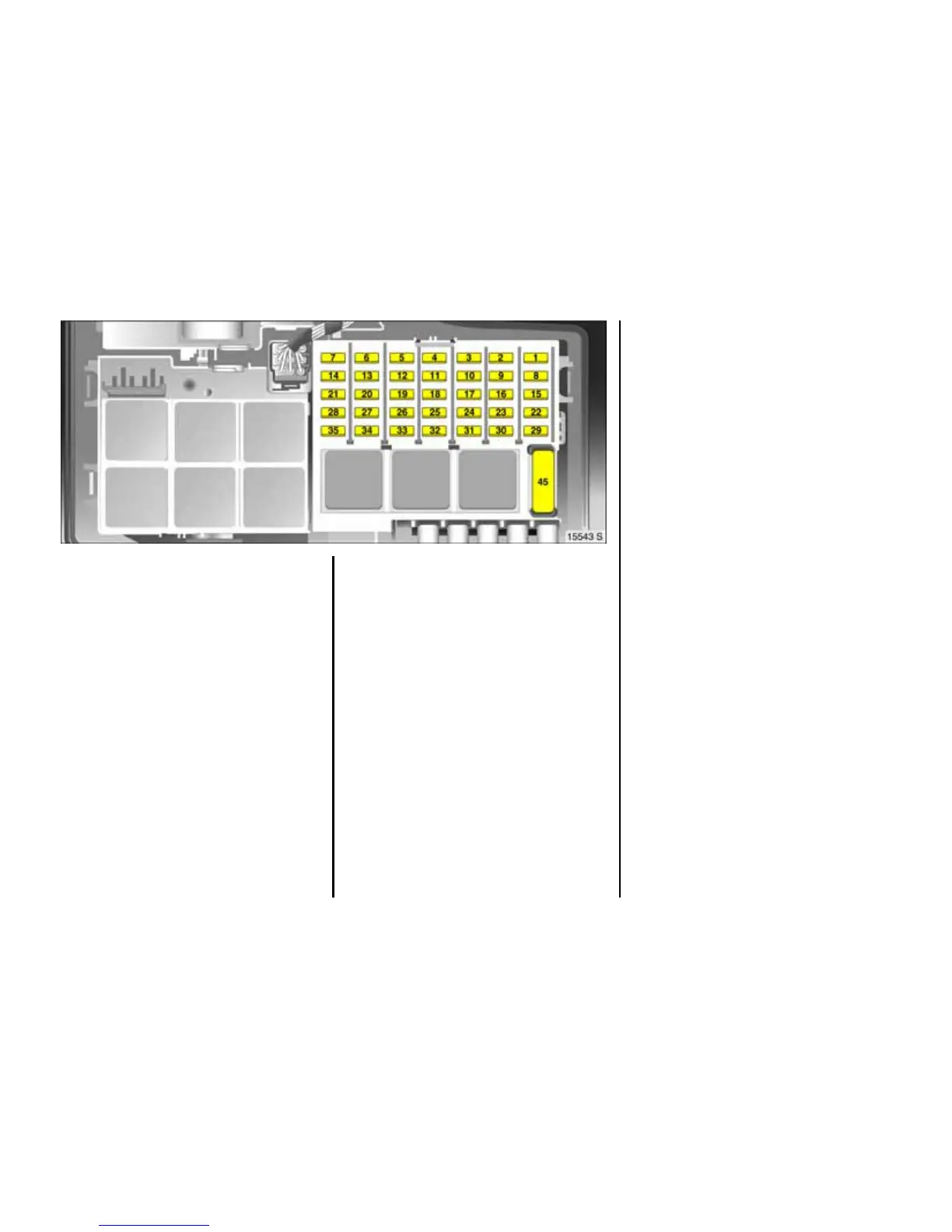

The figures on pages 196, 197 depict
the fus e b ox es of ve hic les with engine
Z13DT
1)
. Fuse boxes of other engines
are depicted on pages 198, 199.
1)
Sales designation – see page 235.
Fuse Circuit Rating
1 Central control unit 7.5 A
2 E ng ine co n tr ol un it 7.5 A
Fuse Circ ui t Rat ing
3 Instrume nts,
information display,
light switch,
horn,
hazard wa rning lights,
immobiliser
7.5 A
4 Towing equipment,
number plate lights
20 A
Fuse Circuit Rating
5 Electric w indow (left) 20 A
6 Automatic transmission 10 A
7 Headlight wash system 30 A
8 Starter 10 A
9 Fuel injection system,
fuel pump,
stationa ry heater
20 A
10 Horn 10 A
11 Central control unit 15 A
12 Information display,
infotainment system:
engine
1)
Z 13 DT,
Z 17 DTH
20 A
10 A
13 Vauxhall alarm system 7.5 A
14 E xt e ri o r m i rr o rs 7. 5 A
15 Windscreen wash
system
15 A
16 C ourte sy ligh t 7. 5 A
17 Central control unit 20 A
18 Sun roof 20 A
