202
Main beam
1. Open bonnet and engage supp ort.
2. When replacing bulb s on the left-hand
side, open the cover of the fuse box.
When replacing bulbs on the right-hand
side, detach the air hose from the a ir
filter.

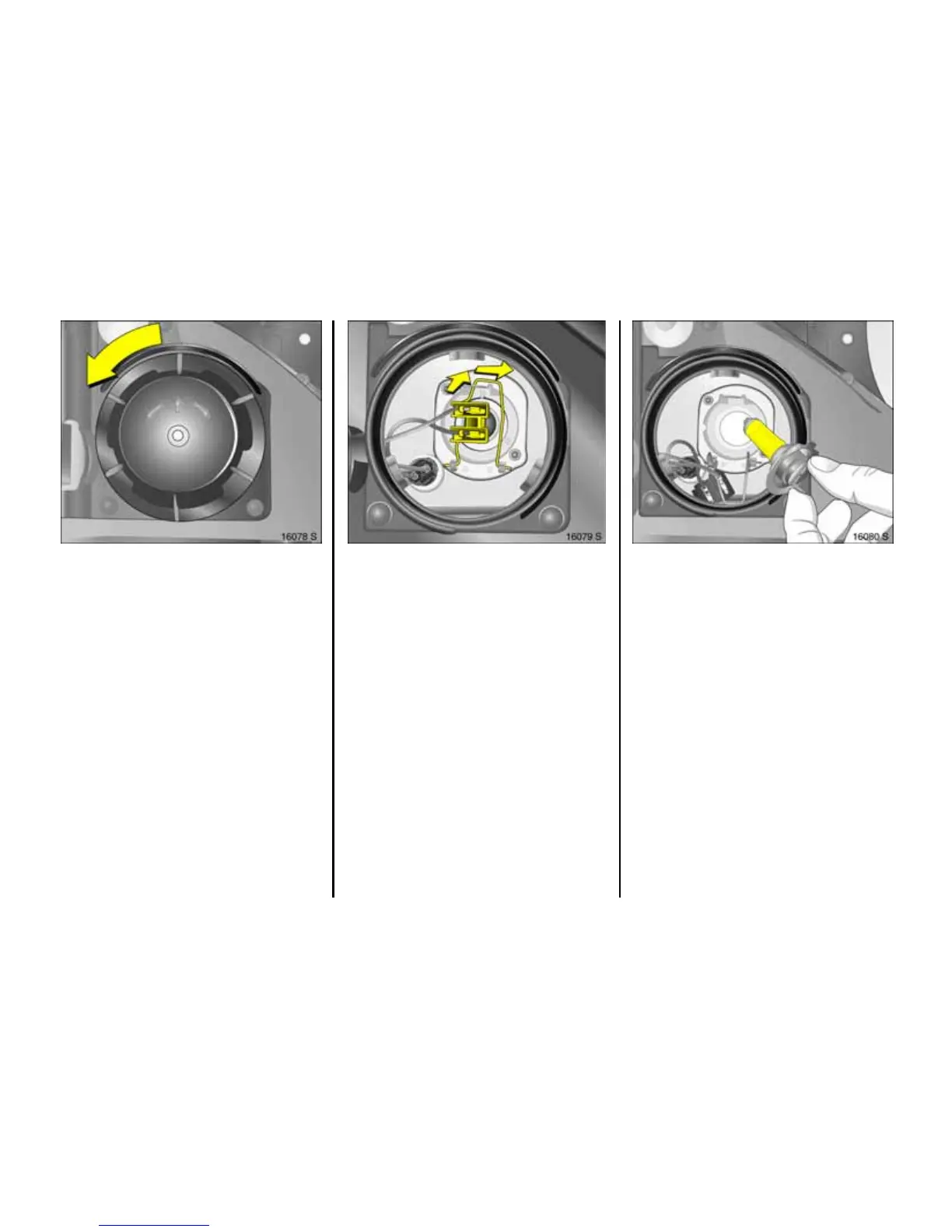

3. Rotate the cap anticlockw ise and
remove.
4. Detach plug connector from bulb.
5. Disengage spring wire clip from
retaining lugs by m oving it forw ard a nd
swivelling it to the side.
6. Remove bulb from reflector housing.
7. When fitting a new bulb, engage the
lugs in the recesses on the reflector
without touching the glass.
8. Engage spring wire clip, plug connector
onto bulb.
9. Place headlight protec tive cover in
position and close.
10. After replacing bulbs on the left-hand
sid e, close the cover of the fuse box.
After replac ing bulbs on the right-hand
sid e, reattach the air hose to the air
filter and engage.
