RDS Solution With vMatrix User Manual

1.3 Device Connections

Model: S100

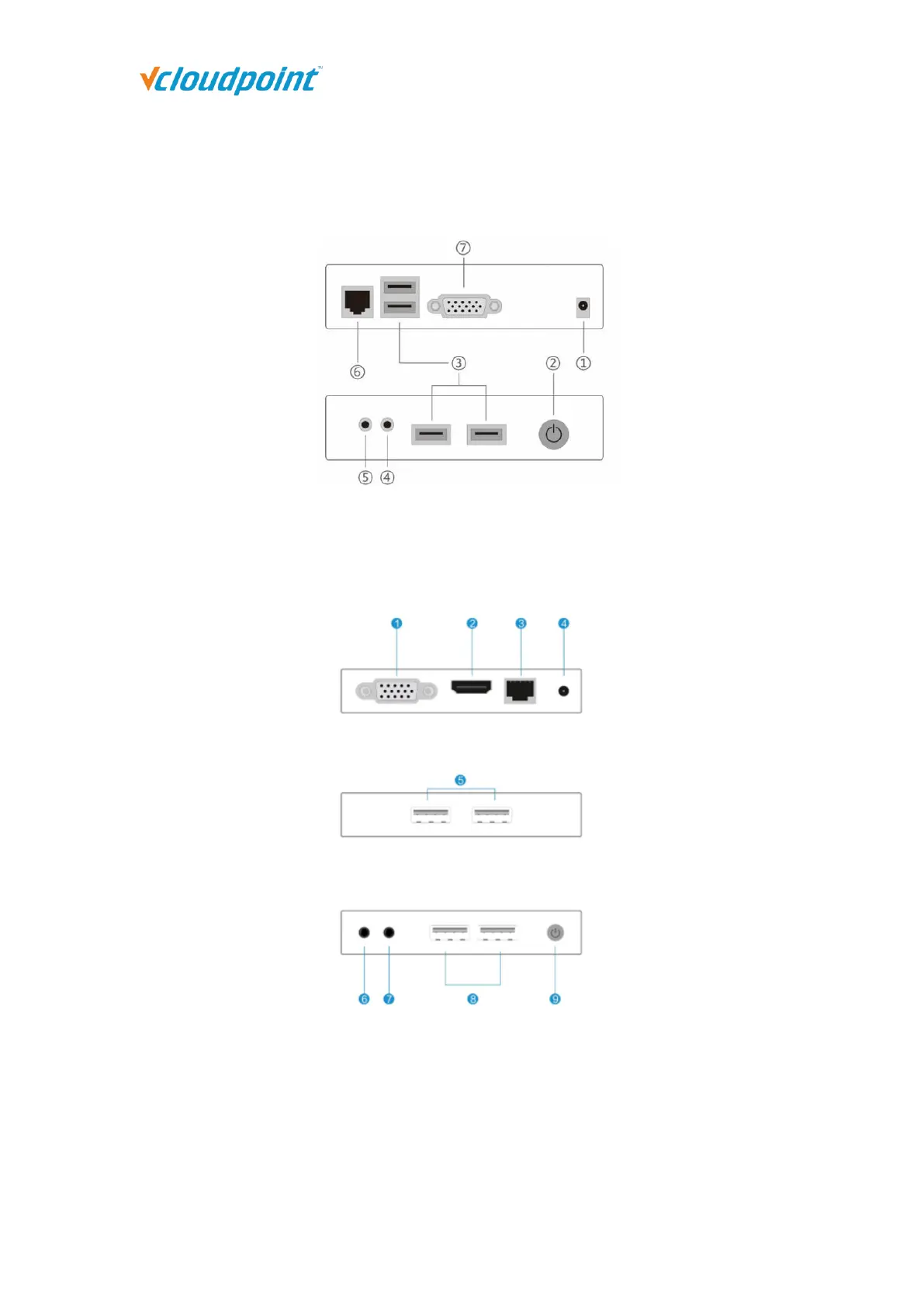

① 5V DC Power Input ② Power& Reset Button ③ USB2.0 Ports ④ 3.5mm Mic Jack

⑤ 3.5mm Speaker Jack ⑥ RJ45 Ethernet Input ⑦ VGA Display Port

Model: V1

① VGA Display Port ② HDMI Display Port ③ RJ45 Ethernet Input ④ 5V DC Power Input

⑤ 5V DC Power Input ⑥ 3.5mm Speaker Jack ⑦ 3.5mm Speaker Jack

⑧3.5mm Mic Jack ⑨ Power& Reset Button
