D.1 Interface Box Wiring Diagram

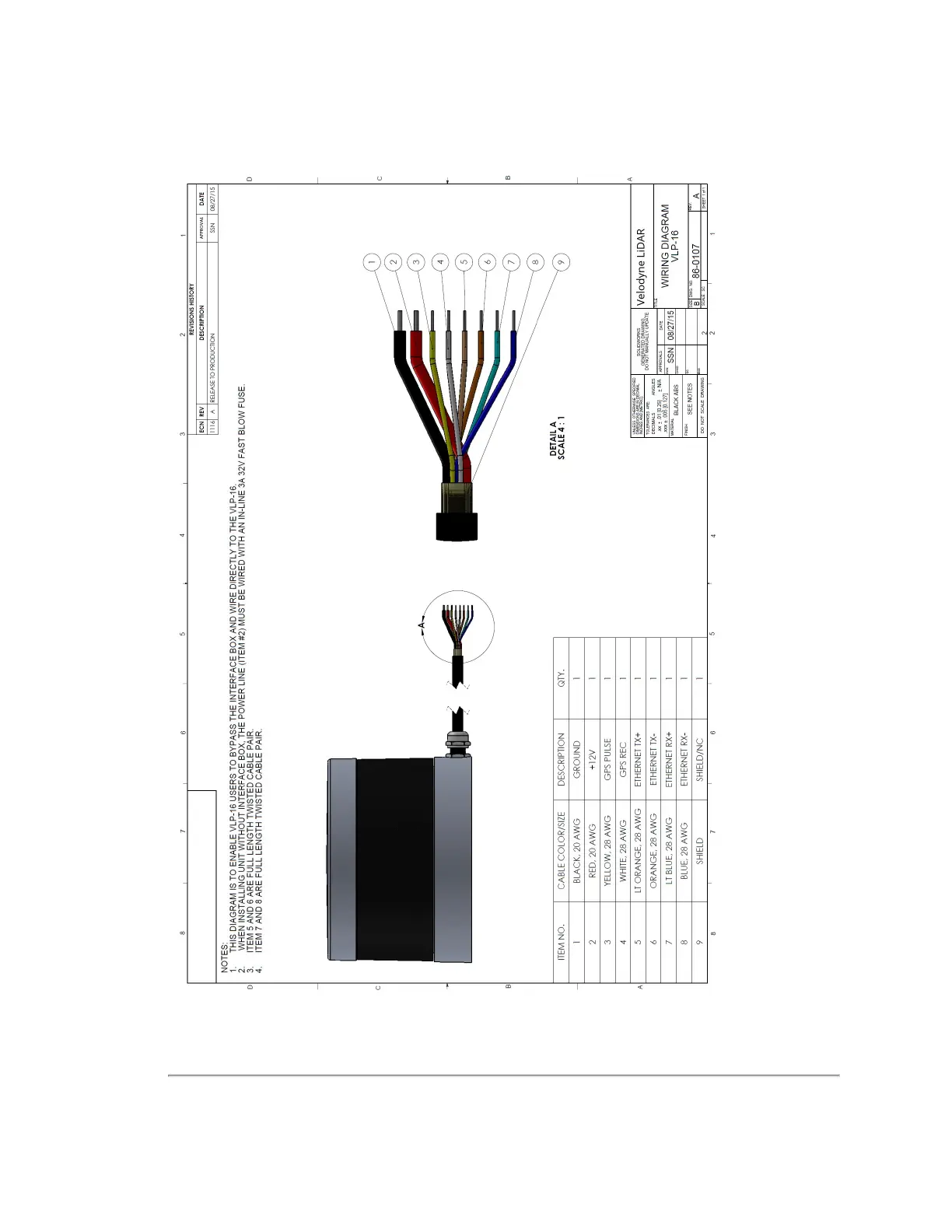

Figure D-1 Interface Box Wiring Diagram 86-0107A

106 VLP-32C User Manual
