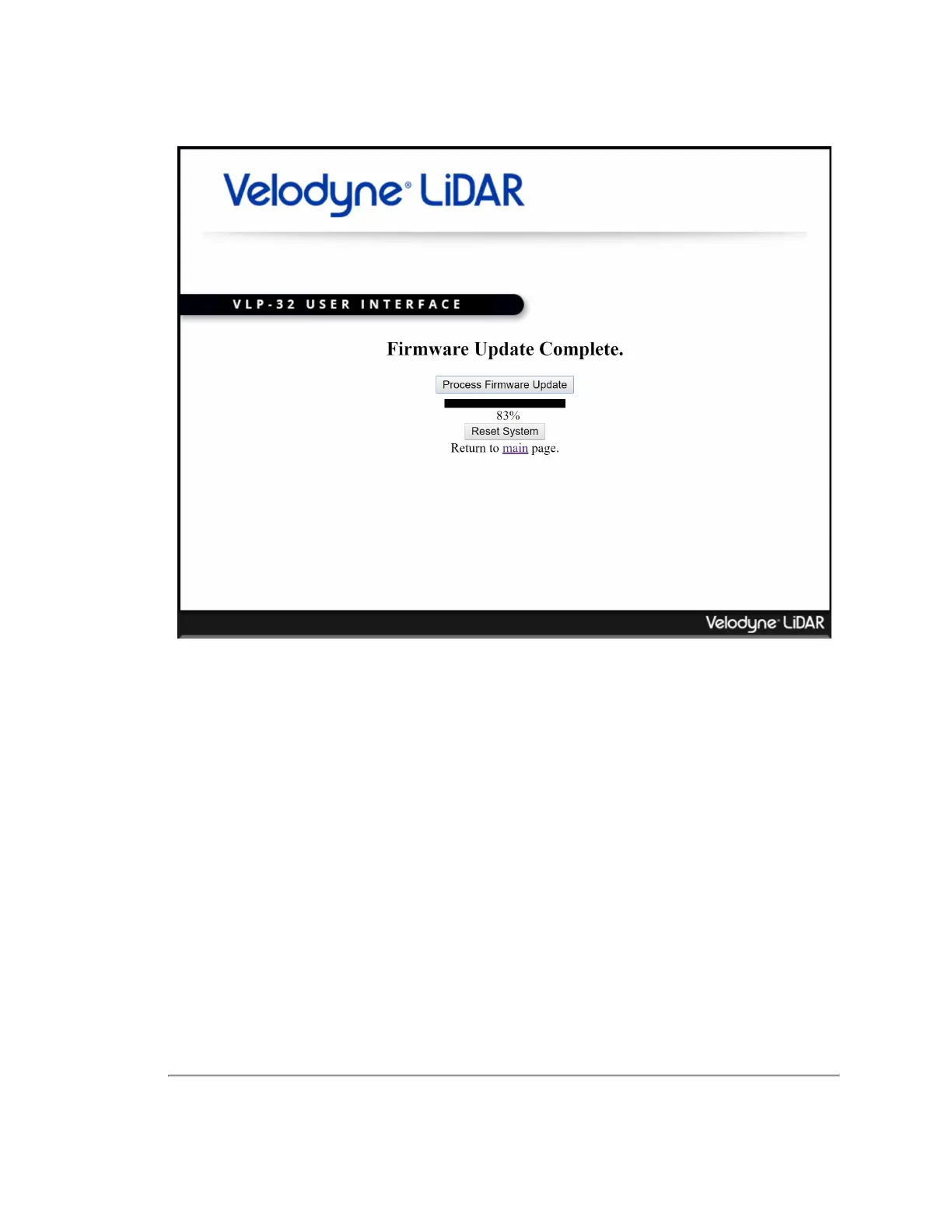

Figure B-6 Finalize Firmware Update

15. When processing completes, press the Reset System button to finalize the update. The sensor will perform a

warm boot.

16. The Configuration screen will be shown when the sensor finishes rebooting.

17. Return to the Info page.
