Velodyne VLP-32C - Info Screen; Table 10-3 Info Screen Functionality and Features; Figure 10-3 VLP-32 C Info Screen

To Next Page

To Previous Page

Function Description

PPS See description in

Table 10-1 on page 71

Motor State See description in

Table 10-1 on page 71

Laser State See description in

Table 10-1 on page 71

10.1.3 Info Screen

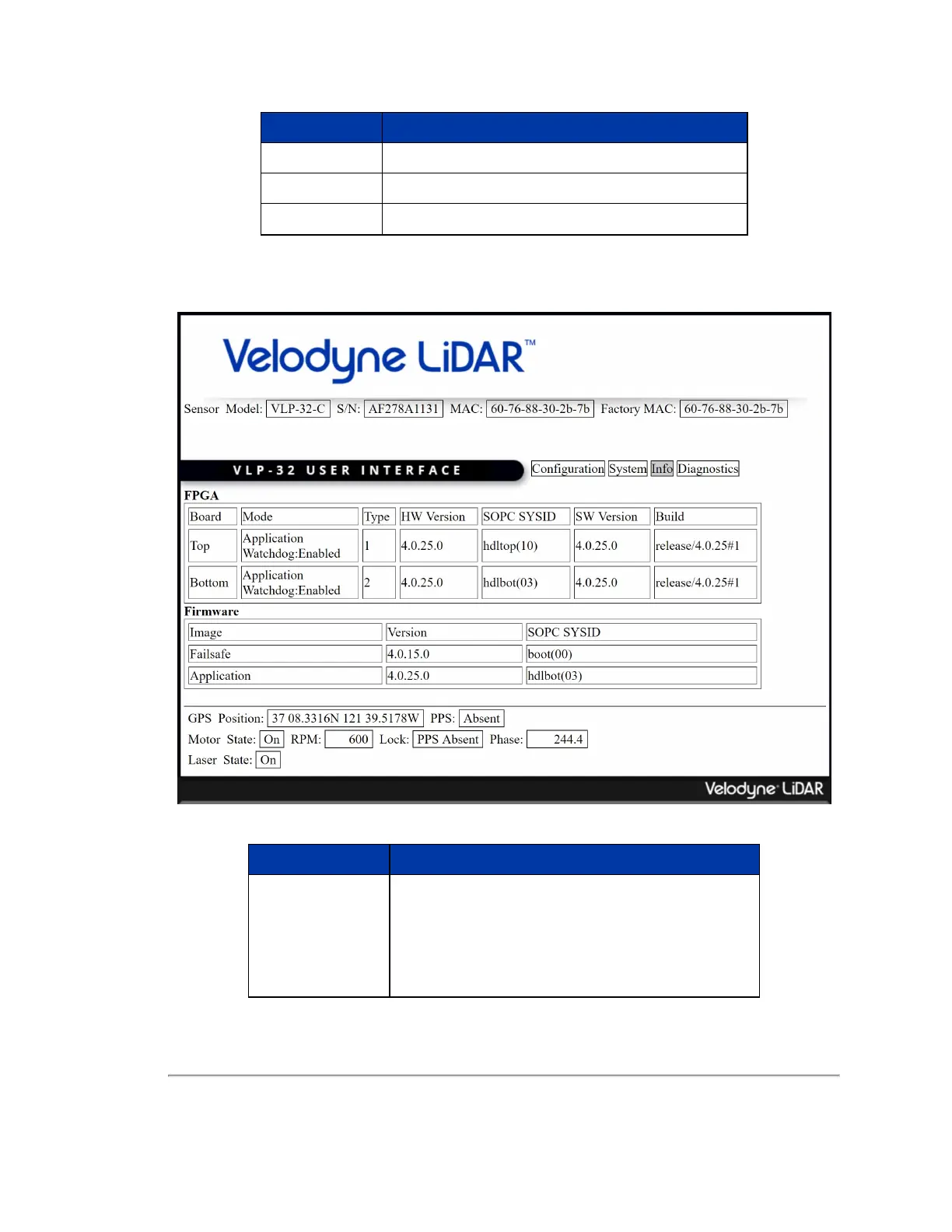

Figure 10-3 VLP-32C Info Screen

Function Description

FPGA (top board)

Board — Top or Bottom board information.

Mode — State of the Application Watchdog – Velodyne use only.

Type — Velodyne Use Only.

HW Version — Velodyne Use Only.

SOPC SYSID — Velodyne Use Only.

SW Version — Current operating firmware version.

Build — Velodyne Use Only.

Table 10-3 Info Screen Functionality and Features

Chapter 10 • Sensor Communication 75

Main Page
