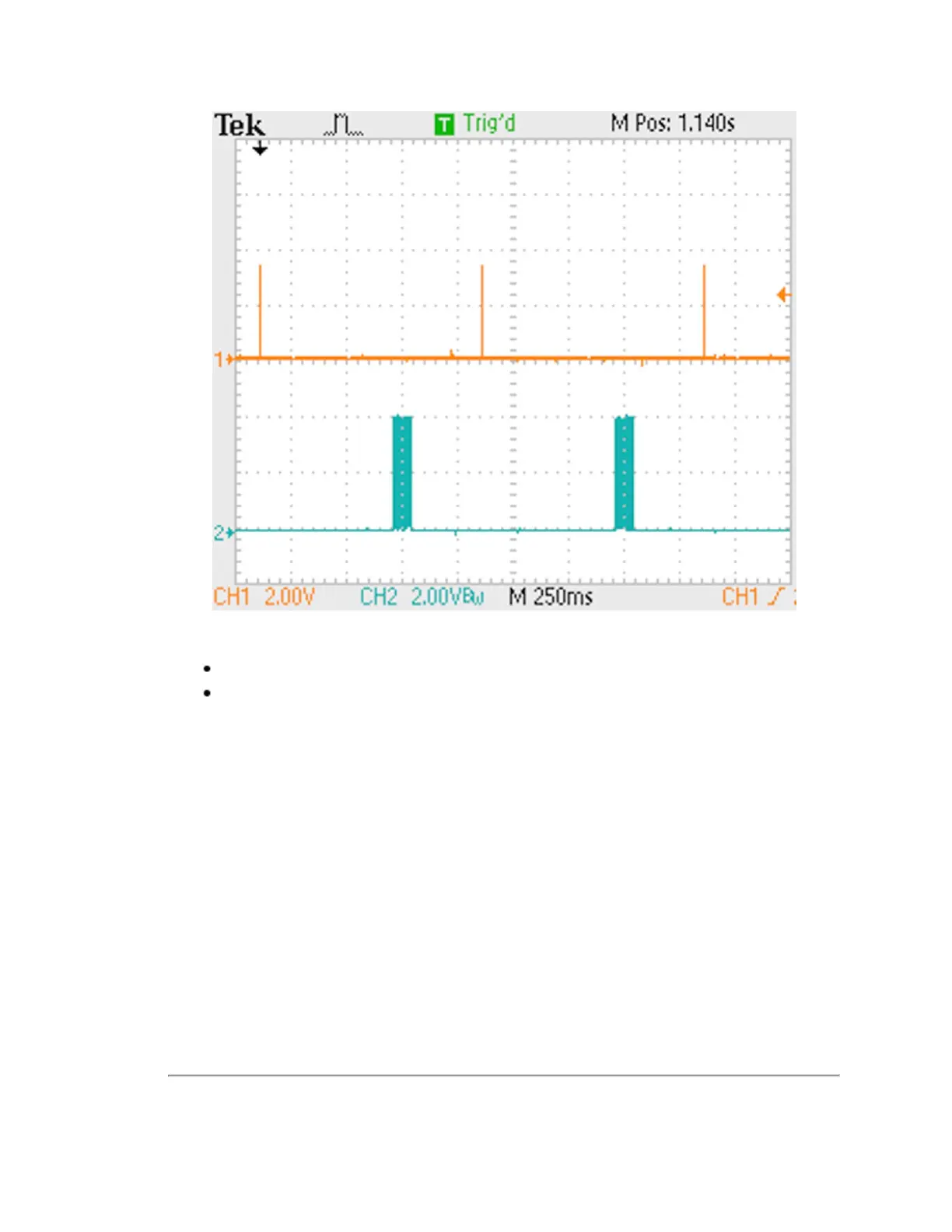

The serial connection for the NMEA message follows the RS232 standard. The interface is capable of handling voltages

between ±15 VDC.

Low voltages are marks and represent a logical 1.

High voltages are spaces and represent a logical 0.

The serial line idle state (MARK) is a low voltage indicating a logical 1. When the start bit is asserted, the positive voltage will

be asserted representing a logical 0. As an example, the transmission of an ASCII "$" character is shown in

Figure 7-5

below

Figure 7-5 RS-232 Example Transmission

Chapter 7 • Sensor Inputs 43
