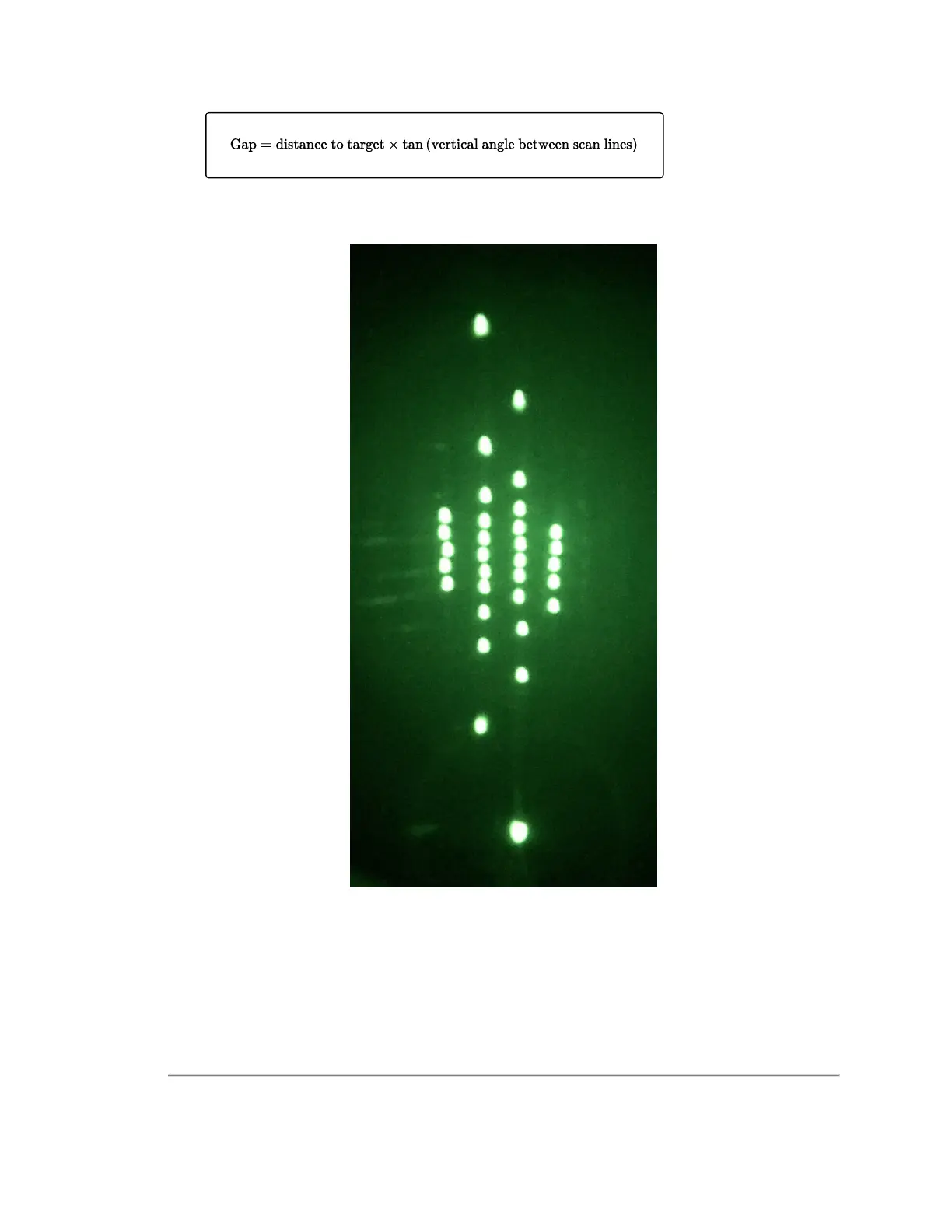

Figure F-3 Laser Spots on a Wall

Photo of sensor laser pattern reflecting off of a flat target a short distance away.

F.2.3 Beam Divergence

As a laser pulse propagates outward from the sensor the cross-section of the laser beam describing the path of the pulse

gradually, steadily grows larger. The angular measure of this increase in beam path diameter is called Beam Divergence.

Appendix F • Laser Pulse 119
