Chapter 2 • VLP-32C Overview
This chapter provides basic information on the sensor's hardware and software components.
2.1 Overview
18
2.2 Product Models
19
2.3 Time of Flight
19
2.4 Data Interpretation Requirements
19
2.1 Overview
The VLP-32C sensor uses 32 infra-red (IR) lasers paired with IR detectors to measure distances to objects. The device is
mounted securely within a compact, weather-resistant housing. The assembly of laser/detector pairs spins rapidly within
its fixed housing to scan the surrounding environment, firing each laser approximately 18,000 times per second, providing,
in real-time, a rich set of 3D point data.
Advanced digital signal processing and waveform analysis provide highly accurate long-range sensing, as well as cal-
ibrated reflectivity data, enabling easy detection of retro-reflectors like street-signs, license plates, and lane markings.
Sensor data is made available to your application via Ethernet in real-time in the form of UDP packets.

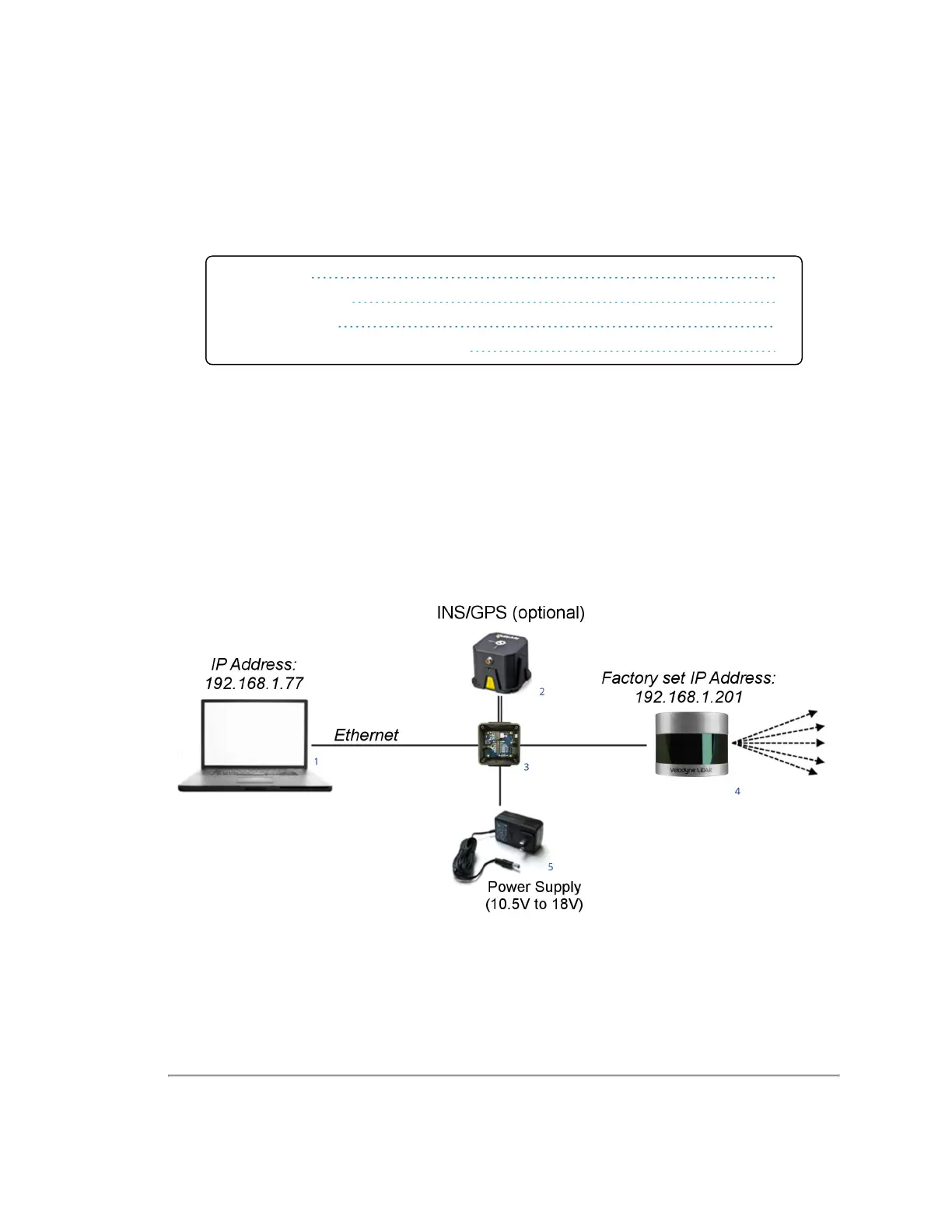

Figure 2-1 Example 3D Sensing System
18 VLP-32C User Manual
