Velodyne VLP-32C - Figure E-5 Veloview Open Capture File; Figure E-6 Veloview Play Button

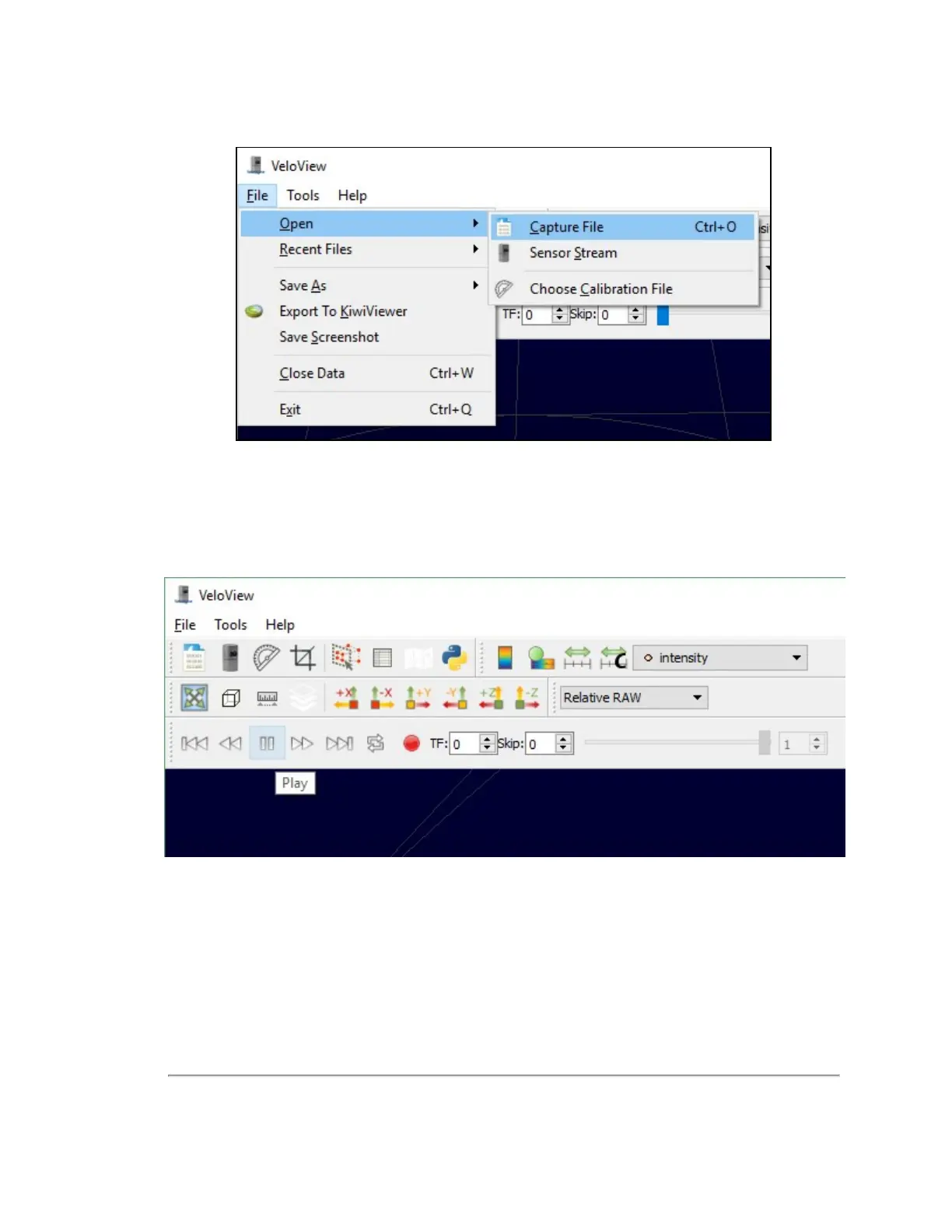

Figure E-5 VeloView Open Capture File
2. An Open File dialog will pop up. Navigate to a pcap file, select it, and click the Open button. The Sensor Con-
figuration dialog will pop-up.
3. Select your sensor type and click OK.
VeloView should display frame 0.
Figure E-6 VeloView Play Button
4. Press Play to replay/pause the data stream. Use the Scrub slider tool (it looks like an old-fashioned volume slider)
to move back and forth through the data frames. Both controls are in the same toolbar as the Record button.
5. To take a closer look at some data, scrub to an interesting frame and click the Spreadsheet button.
Appendix E • VeloView 113
