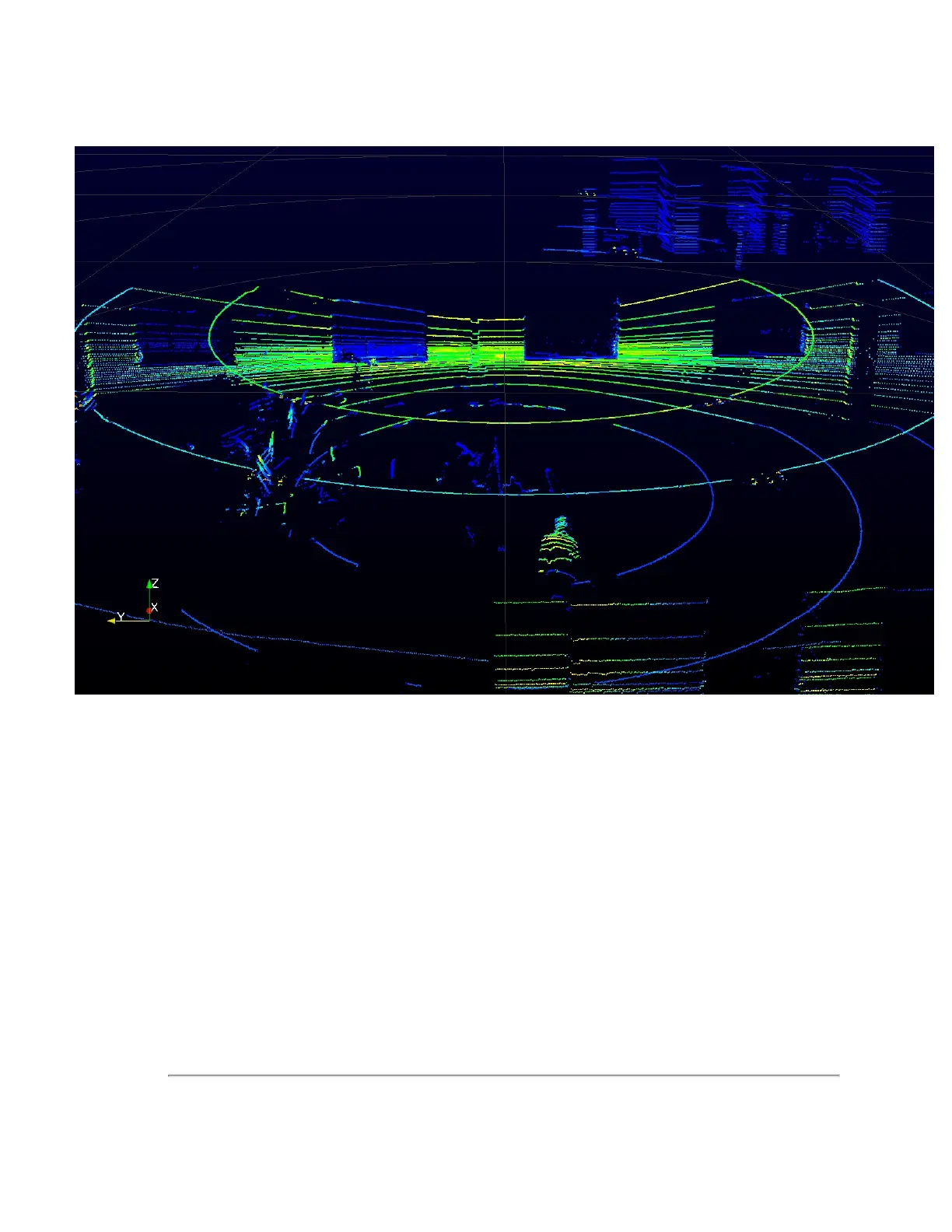

Figure E-3 VeloView Sensor Stream Display

The stream can be paused by pressing the Play button. Press it again to resume streaming.

E.4 Capture Streaming Sensor Data to PCAP File

1. Click the Record button.

Appendix E • VeloView 111
