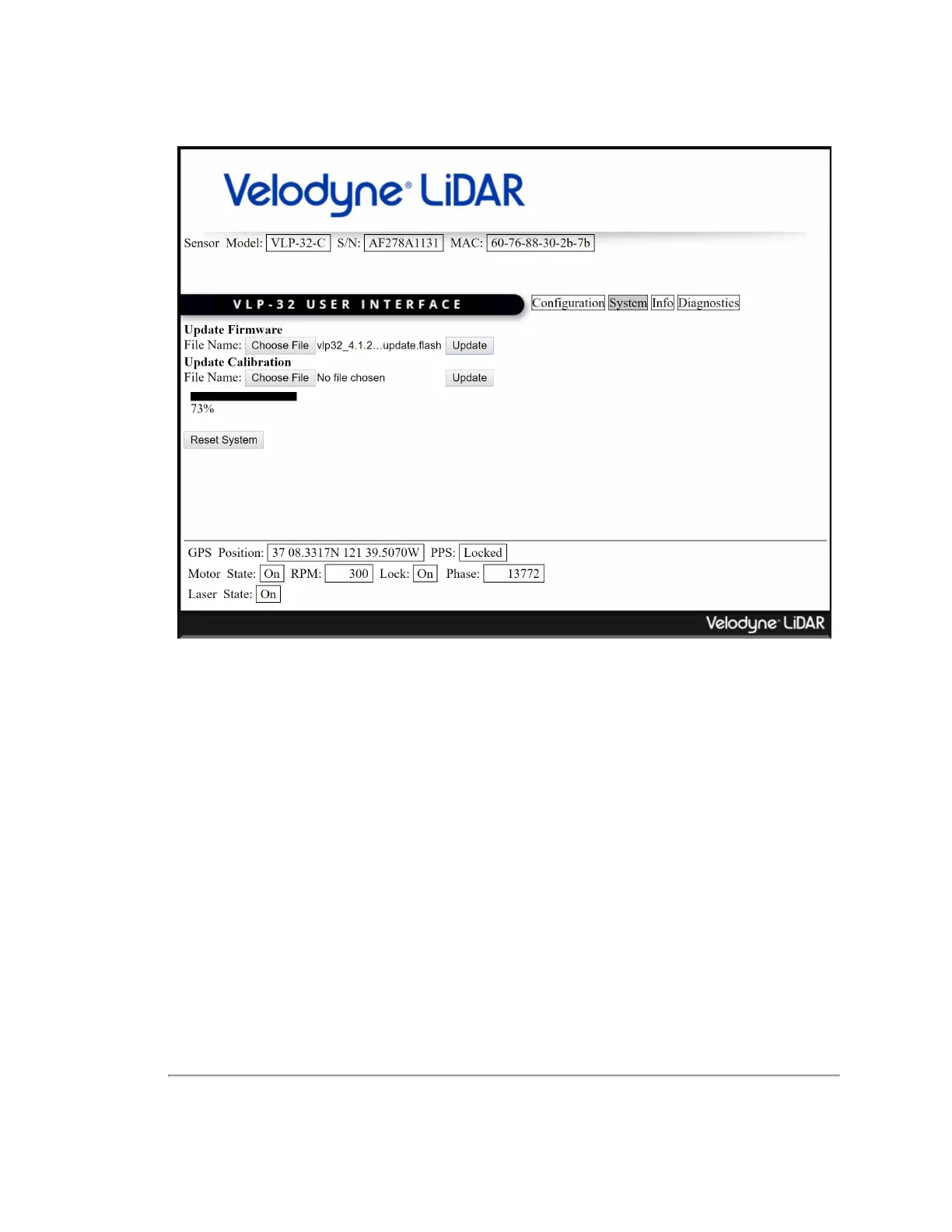

Figure B-4 Upload New Firmware Image

11. As shown in the figure above, a progress bar indicating the percentage of update completion is displayed.

12. When this first stage of the update is complete, the Firmware Update Complete screen (below) is displayed.

But

wait, there's more.

Internally, you've updated the bottom board but not the top, yet.

Appendix B • Firmware Update 97
