Velodyne VLP-32C - Figure 9-6 Example Data Point Timing Calculation

To Next Page

To Previous Page

Timestamp = 45,231,878 µs

TimeOffset = timing_offsets[15][23]

ExactPointTime = Timestamp + TimeOffset

ExactPointTime = 45,231,878 + 1,306.368 µs

ExactPointTime = 45,233,184.368 µs

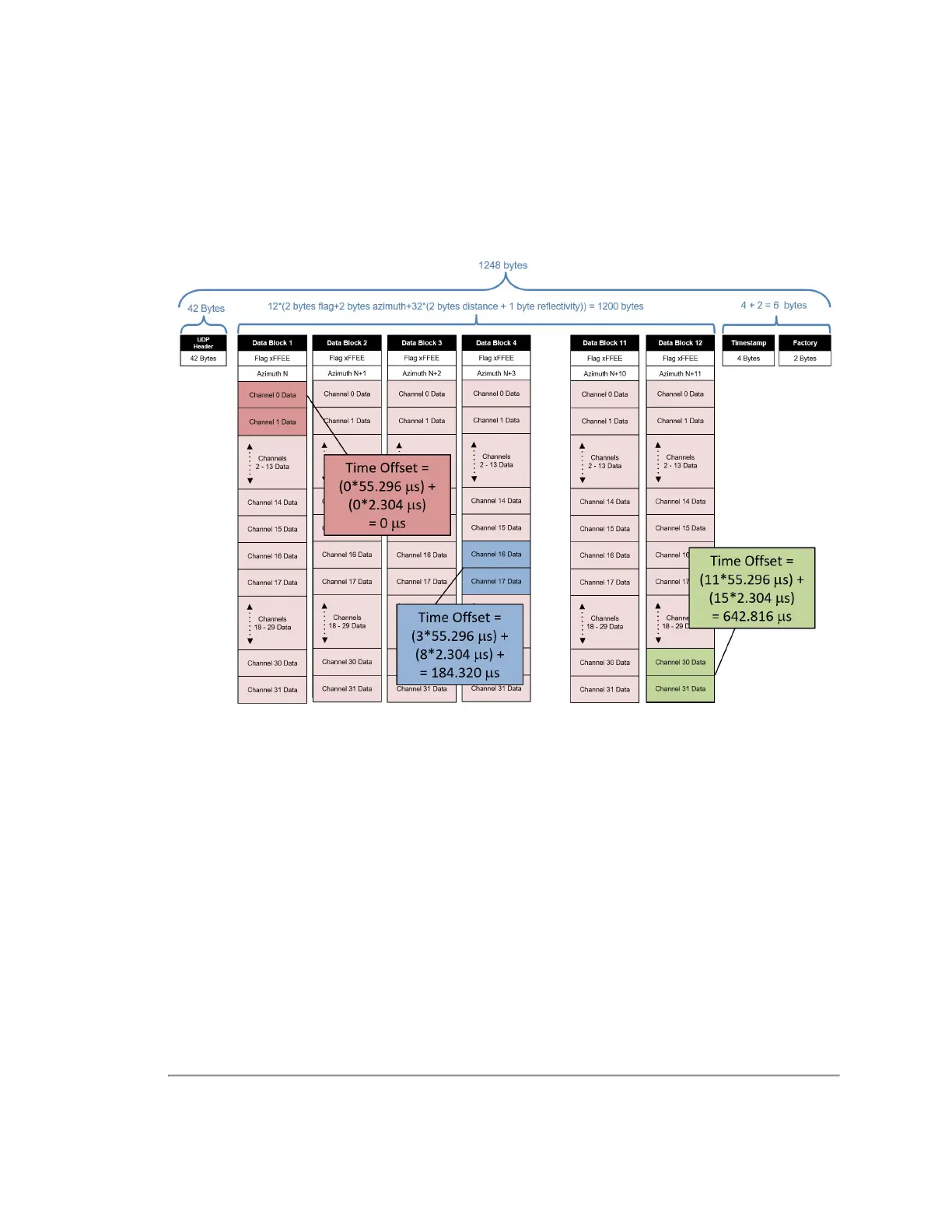

Figure 9-6 below

shows the timing calculation for a few data points.

Figure 9-6 Example Data Point Timing Calculation

64 VLP-32C User Manual
