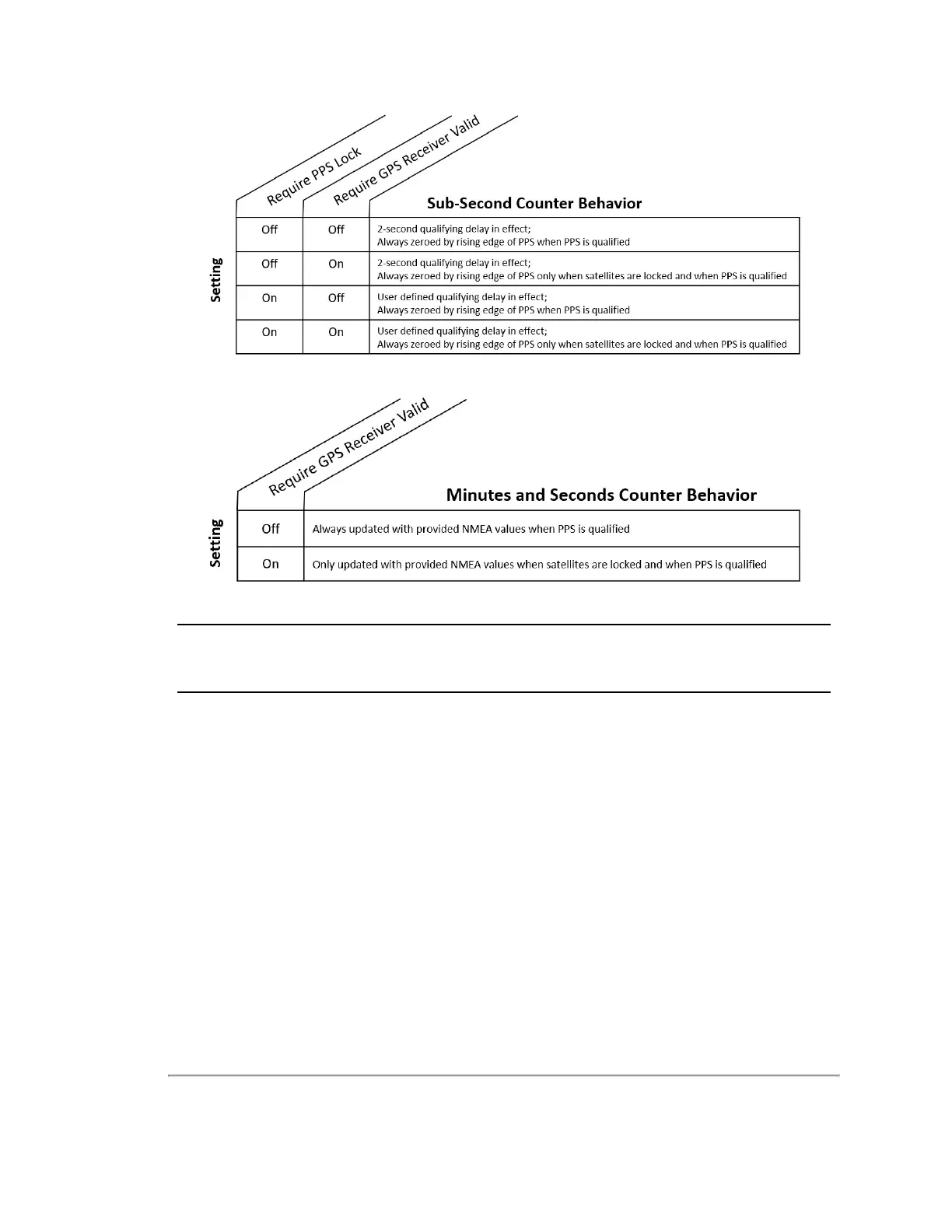

Figure G-4 Minutes and Seconds Counter Behavior

Note: If no NMEA sentence is provided, the Minutes and Seconds counter is driven by the rollover of the sub-seconds

counter.

124 VLP-32C User Manual
