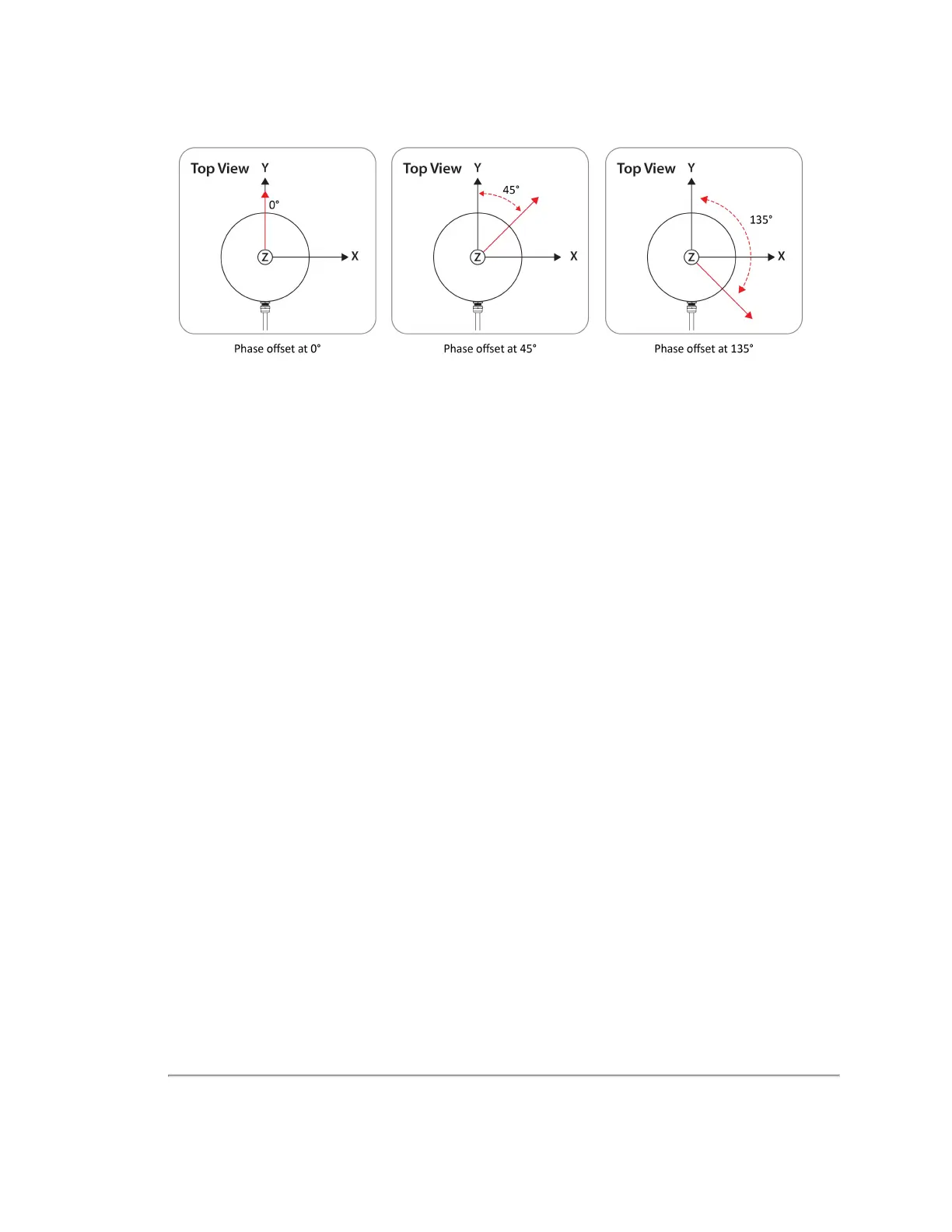

Figure 6-6 Phase Locking Example

The red arrows shown in

Figure 6-6 above

indicate the firing direction of the sensor's laser at the moment it receives the

rising edge of the PPS signal.

Additional information for phase locking multiple sensors is located in

Phase Lock on page 125
