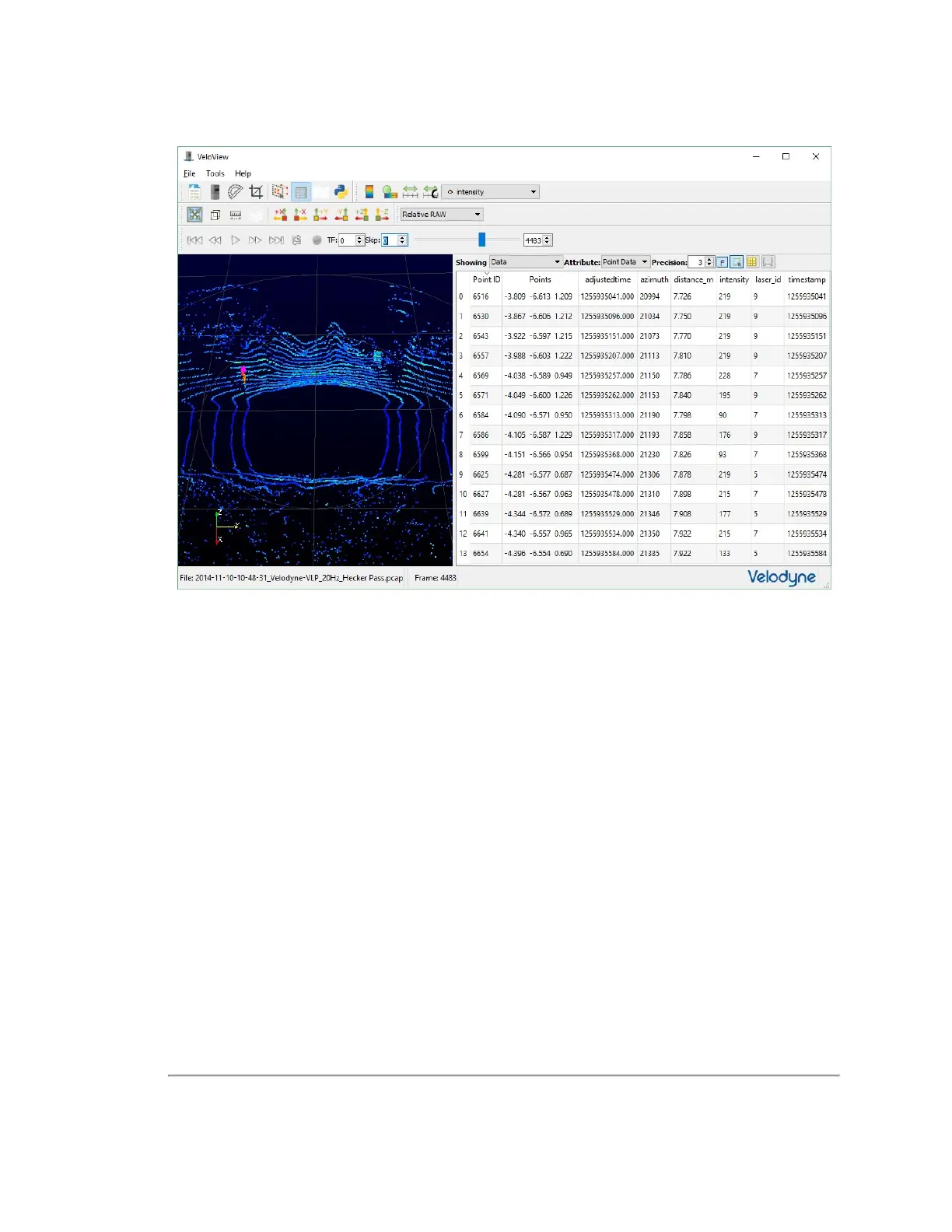

Figure E-11 VeloView List Selected Points

Figure E-11 above

, 14 data points were selected with a small selection rectangle. The points appear in pink. Their attrib-

utes are listed on the right. In this example, most of their intensity values exceed 100, indicating something retro-reflective

is there (see

Calibrated Reflectivity on page 32

for details). Azimuth is in hundredths of a degree. Distances are with

respect to the sensor’s origin.

At any point you can save a subset of data frames by doing File > Save As > Select Frames.
