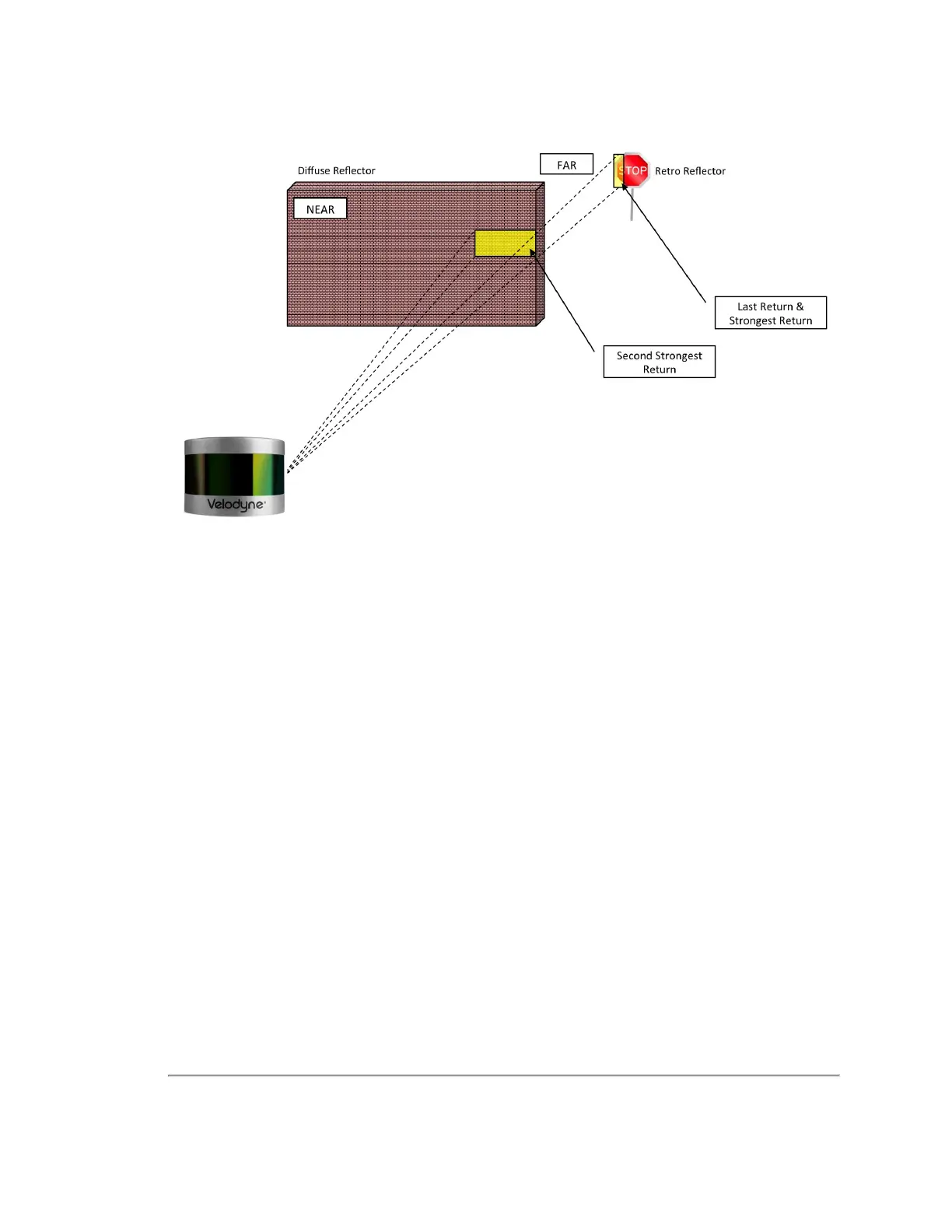

Figure 6-4 Dual Return with Far Retro-Reflector

The dual return function is often used in forestry applications where measurement of the height of trees is desired.

Figure

6-5 on the facing page

indicates a sample response when the laser pulse initially hits the upper canopy, penetrates it, and

eventually hits the ground, producing multiple returns. Which laser return mode would be best in this situation?

36 VLP-32C User Manual
