About connecting modules 3-18
Chapter 3: Setting Up the Wave IP 500 Server
Wave Server Installation Guide
Note: Some modular connectors look alike. Verify that your cables use the standard connectors
specified for a particular module.
Connecting an RJ-21X cable
Important: In order to ensure a secure fit when connecting an RJ-21X (25-pair amphenol)
cable to a station or trunk module, you should use 3/4-inch 4-40 captive (partially threaded) pan
head screws. Be aware that some RJ-21X cables may come with screws that are too short, and
you should replace them with 3/4-inch screws.
To connect an RJ-21X cable to a module:
1. Connect the cable(s) to the connector(s). There are 2 kinds of RJ-21X cables:
•

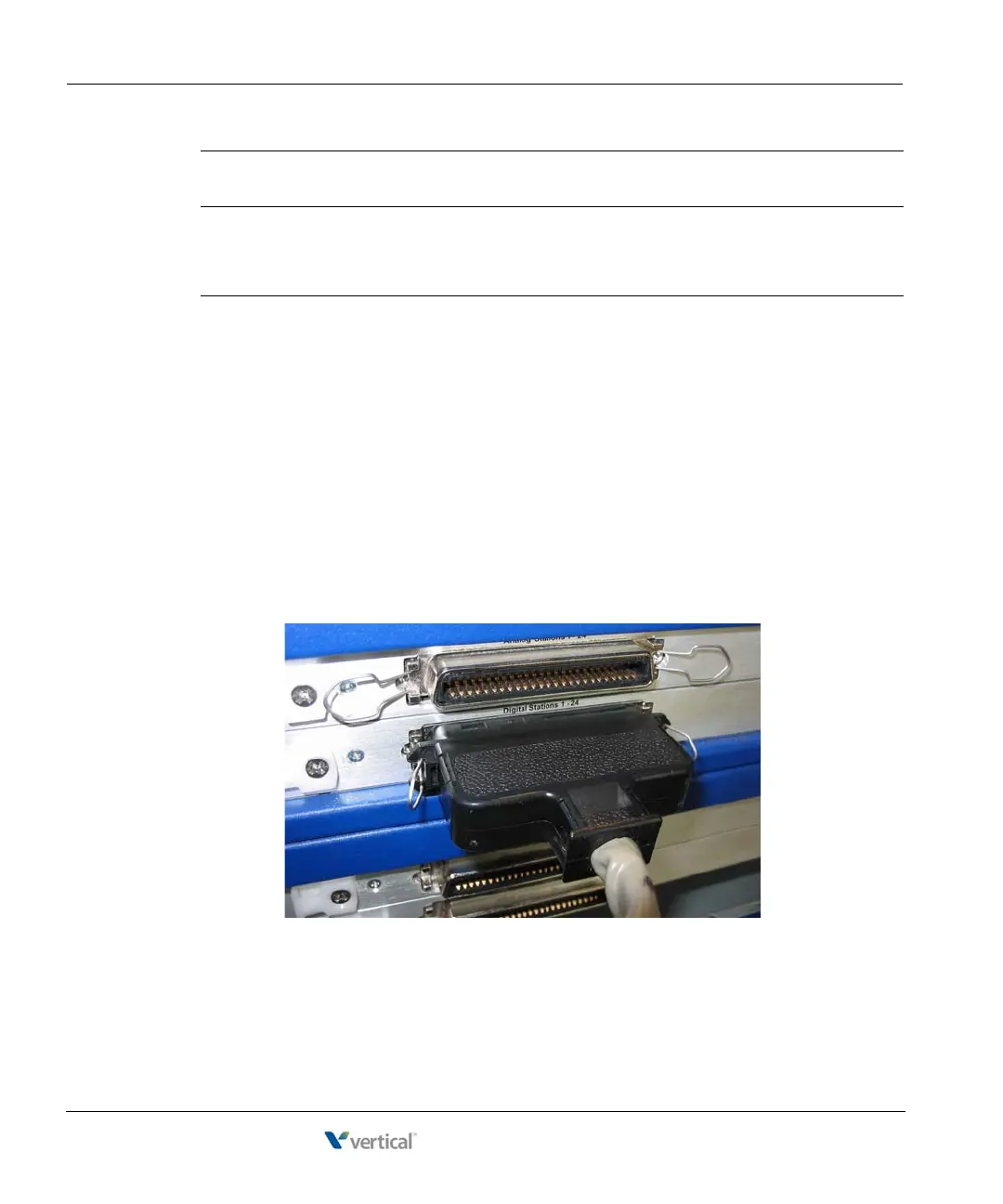

180° cable—The cable comes straight out the back of the connector.
You can connect a 180° cable using the bale clips on the module to connect to a slot
on the cable housing, or using screws.
E1 EuroISDN module
with serial interface
1
Quad BRI module
4
Module RJ-11 RJ-21X RJ-45 RJ-48C 3.5 mm
audio
USB
