Wall mounting the Wave IP 2500 Server
You can mount the Wave IP 2500 Server base unit onto a wall by first attaching a piece of
prepared plywood to studs in the wall, then attaching the base unit to the plywood.
Note: You can only wall mount the Wave IP 2500 Server base unit itself —wall mounting is
not an option if you are using one or more EXUs.
Caution: Do not attach the Wave IP 2500 Server base unit directly to a wall without using the
plywood as a support—the plywood must be firmly attached to wall studs in order to support
the weight of the base unit.
To wall mount the Wave IP 2500 Server base unit:
1. Prepare a piece of plywood that meets the following minimum dimensions for proper
ventilation and service access:
Thickness—0.75 inches (2 cm)
Height—24 inches (61 cm)
Width— 34 inches (86.4 cm)
2. Draw a vertical line on the plywood 4 inches (10.2 cm) from the left edge, and a
horizontal line 3-1/4 inches (8.3 cm) from the top edge:

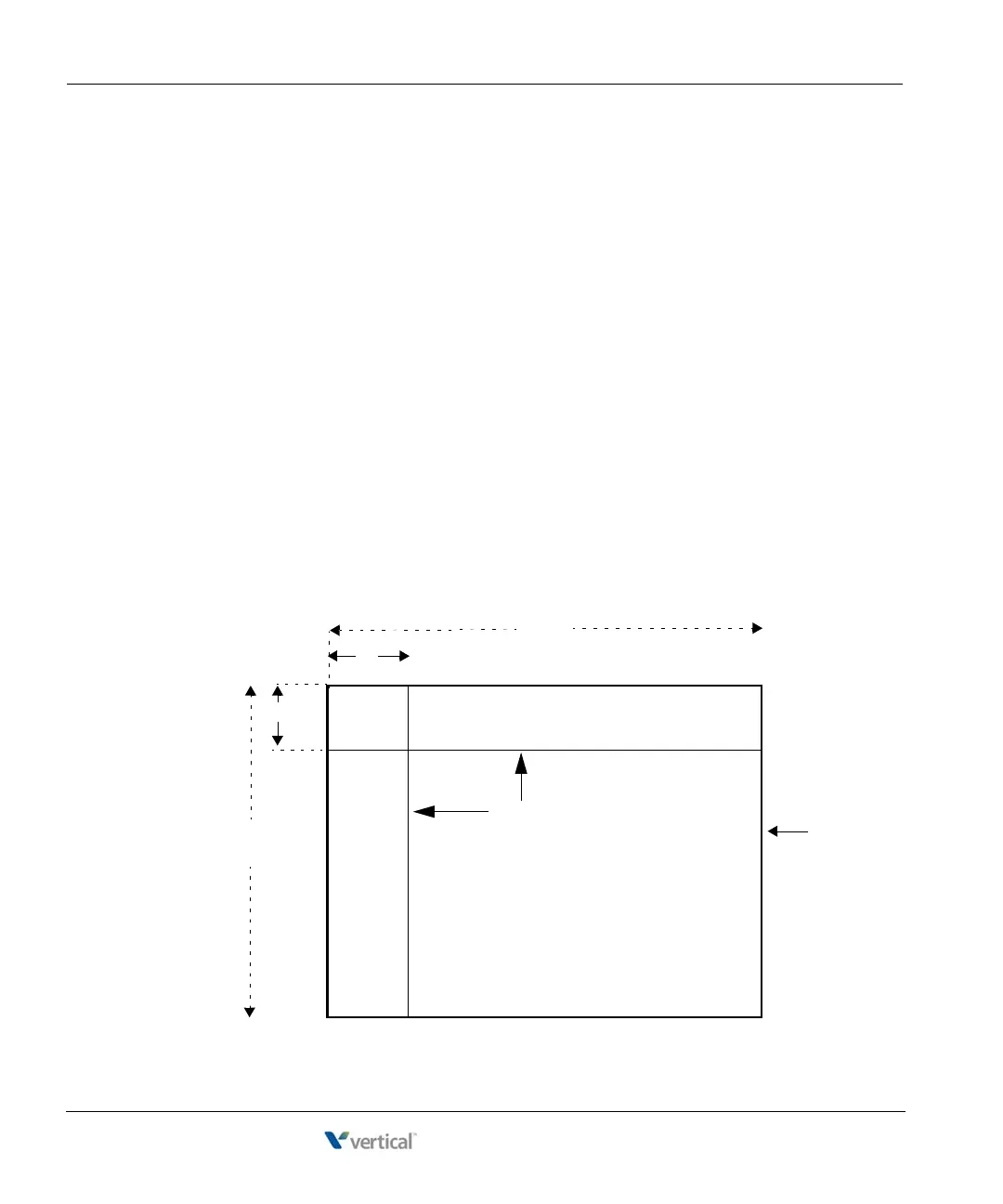

Plywood
24"
34 “
(10.2 cm)
3 1/4"
(8.3 cm)
4”
Two lines
(61 cm)
(6.4 cm)
