• Integrated Services Card (ISC1), an embedded processor that provides primary system
control including voice processing and packet switching elements.
The ISC1 includes the following:
• 4 SIP Gateway ports
• 4 analog FXO trunk ports
• 4 analog FXS station ports
• 2 10/100 Mbps Ethernet ports (see “About the Ethernet ports on the Wave IP 2500
Server” on page 4-13 for important information about using these ports.)
• 2 partial-width slots that can accommodate 2 expansion modules
• 2 full-width universal slots that can accommodate 2 expansion cards or modules
• 1 USB device port
• 1 USB host port
• RJ-21X connector (with embedded FXS and FXO ports)
• Audio port for an external music-on-hold source
• 1 port for an external paging system
• V.34 Fax modem
• Status LEDs (described in detail in Appendix C)

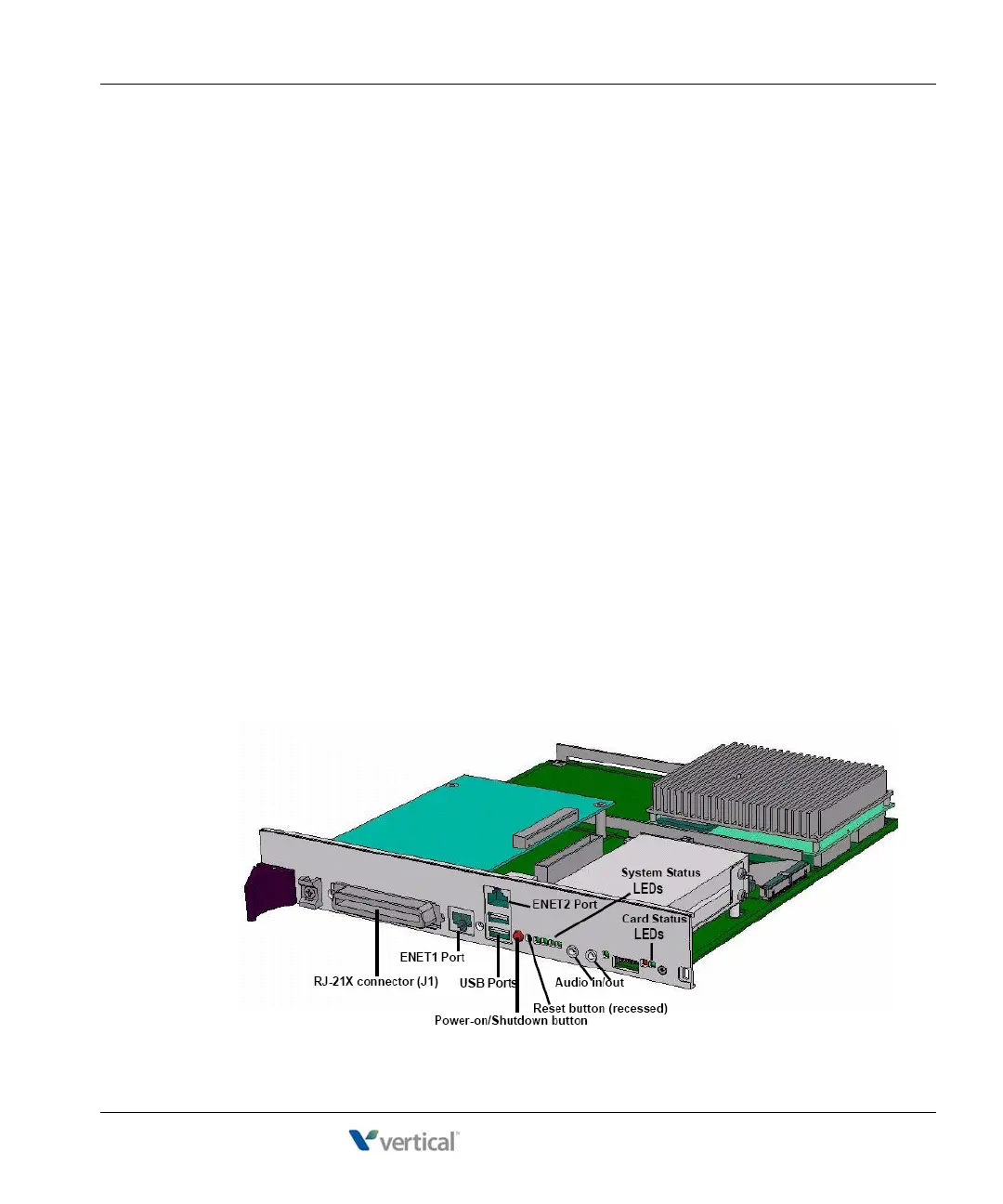

The following diagram illustrates the system ports, LEDs, and buttons on the front of the
ISC1:
