About connecting modules and cards 4-22
Chapter 4: Setting Up the Wave IP 2500 Server
Wave Server Installation Guide
To connect an RJ-21X cable to a module or card:
1. Connect the cable(s) to the connector(s). There are 2 kinds of RJ-21X cables:
•

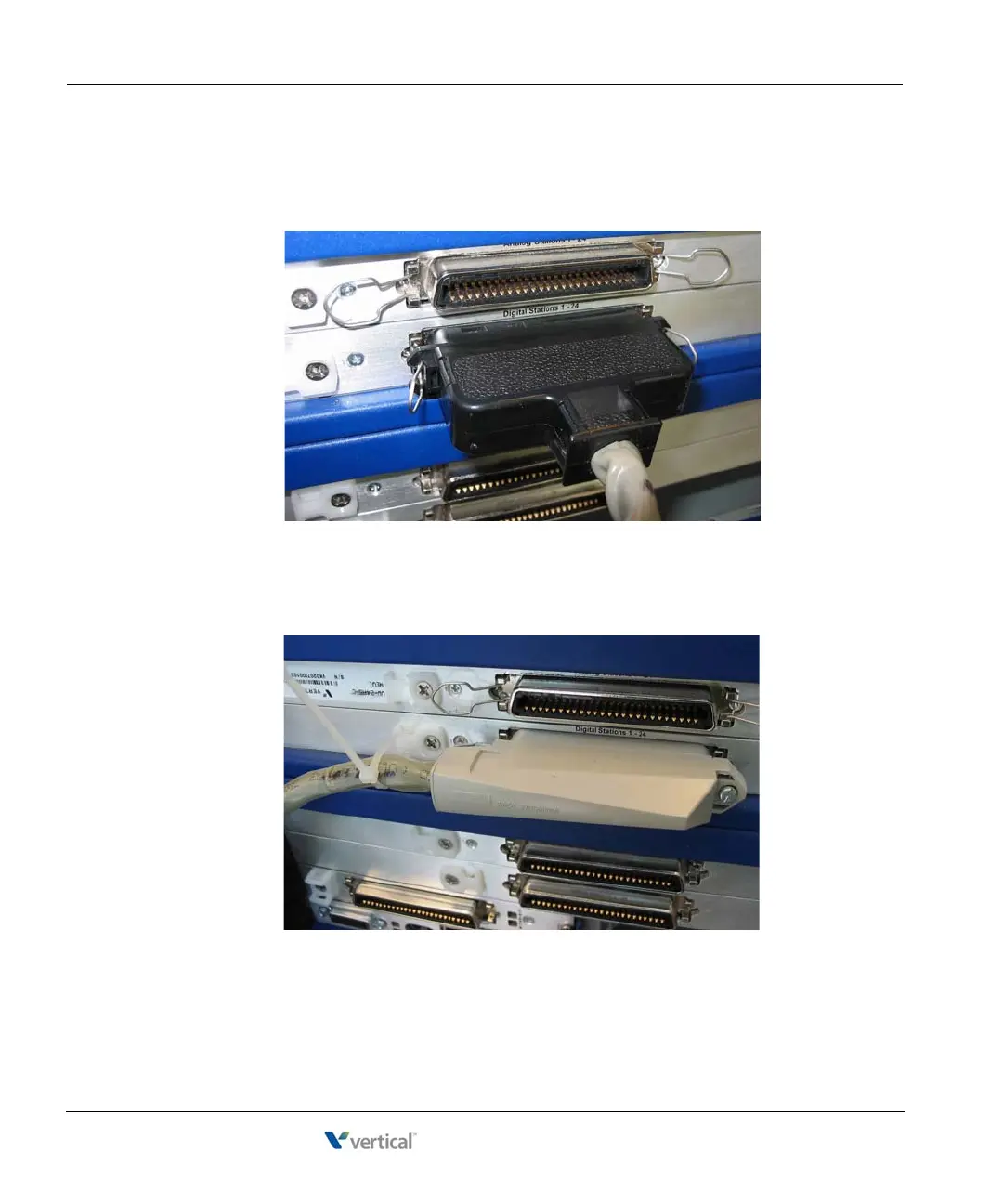

180° cable—The cable comes straight out the back of the connector.
You can connect a 180° cable using the bale clips on the module or card to connect
to a slot on the cable housing, or using screws.
•
90° cable—The cable comes out of the side of the connector and then makes a 90°
turn.
You can connect a 90° cable on only one side using a screw. On the other side, use a
tie down on the module or card to secure the cable to the board with a tie wrap.
2. Make sure that the cables are securely connected. The tabs on modular connectors click
in when the cables are secure. Secure the cable to an RJ-21X connector with the cable
strap.
