9.2.22 LBS Adapter
The LBS adapter is designed to extend the LBS function up to 150m between the two UPS units or systems of a dual bus
system, and it also enables an EXM2 UPS to synchronize with other UPS models.
App earance

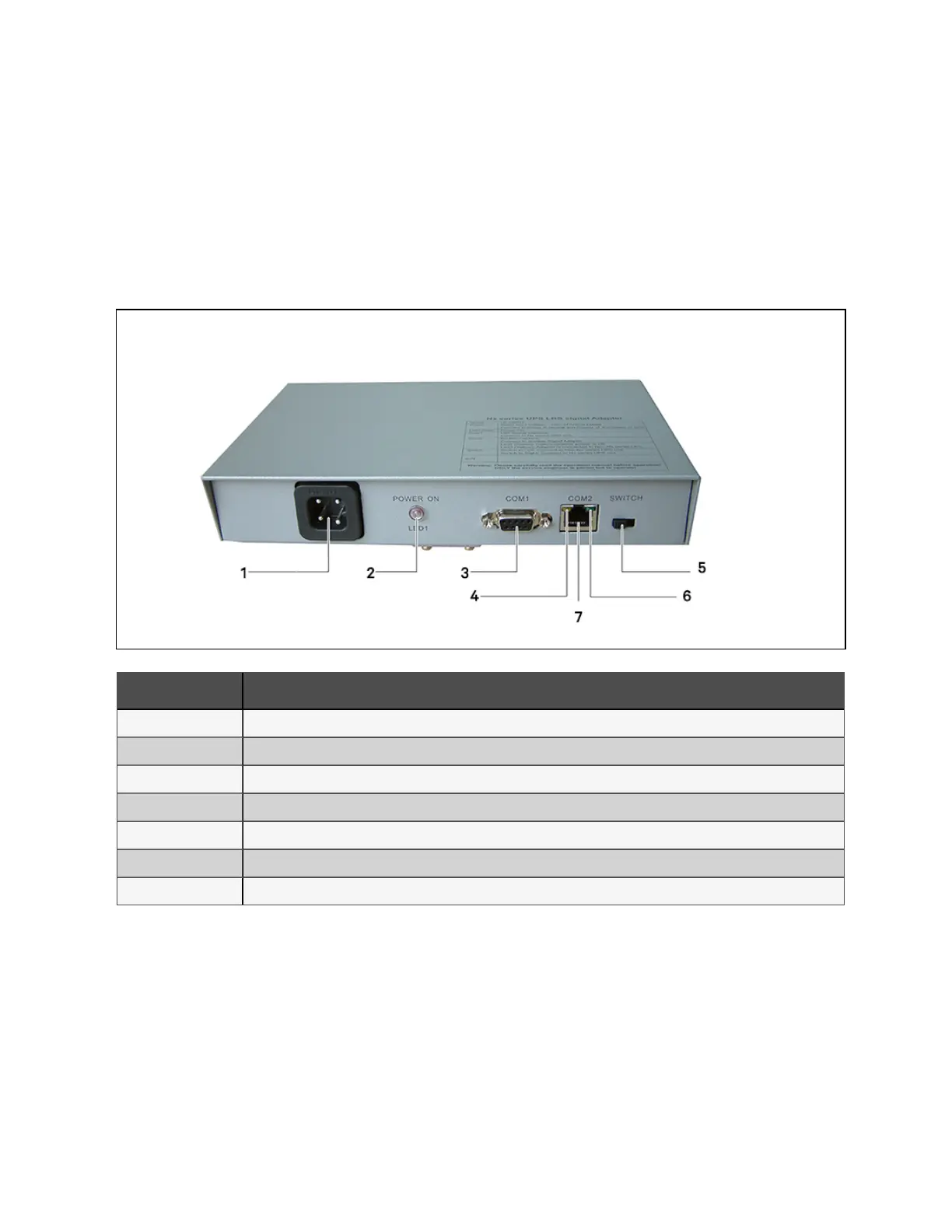

The appearance of the LBS adapter is shown in Figure 9.18 below.
Figure 9.18 A ppearance of LBS ad apter
N O. Description
1 Power port
2 LED1
3 COM1
4 Yellow LED
5 Switch
6 Green LED
7 COM2
For details about how to install and connect cables, see Dual-Bus UPS LBS
TM
Expander/Adapter Installation Manual.
