4. Refer to Figure 3.6 below, install the decorative plate at the position of the removed fixed part.

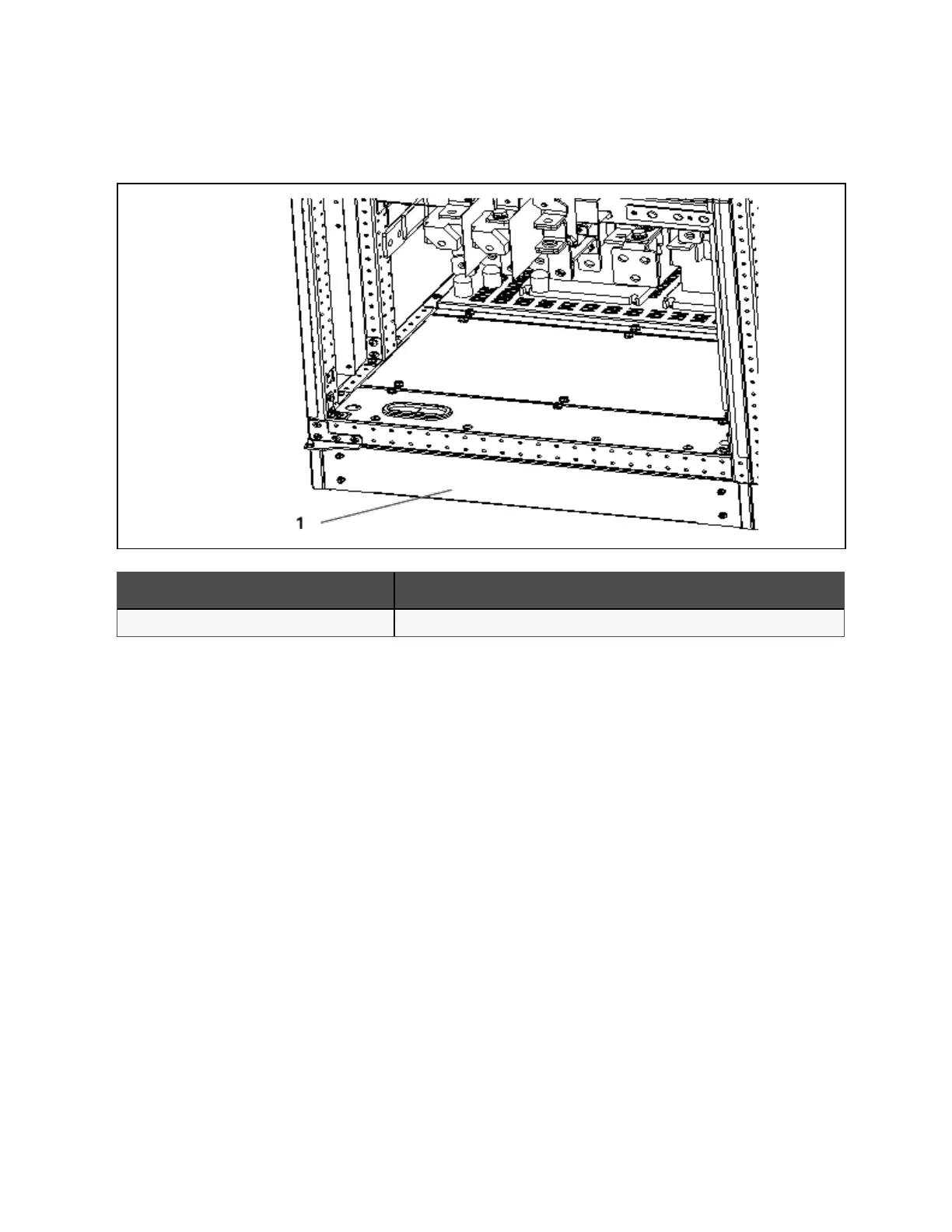

Figure 3.6 Installing decorative plate
N O. Description
1 Decorative plate
5. Use the forklift to move the UPS to its installation position, and fasten it to the ground.
3.5 Initial Inspection
Before installing the UPS, carry out the following inspections:
1. Ensure that the environment of the UPS equipment room meets the environmental requirement specified in the
product technical specifications, especially the ambient temperature, ventilation conditions, and the dust
situations.
2. Unpack the UPS and battery under the guidance of authorized service engineer. Visually inspect whether the
UPS and battery have any transportation damage. If there is any damage, report to the Carrier / Vertiv
representative immediately.
3. Verify the UPS label and confirm the correctness of the UPS. The UPS label is attached on the back of the door.
The model, capacity and main parameters of the UPS are marked on the label.
3.6 Environmental Requirement
3.6.1 UPS Location Selection
The UPS should be located in a cool, dry, clean-air indoor environment with adequate ventilation, and should be located on
concrete or other nonflammable and flat surfaces. The ambient environment should be free of conductive powder (such as
metallic powder, sulfide, sulfur dioxide, graphite, carbon fiber, conductive fiber, etc.), acid mist or other conductive media
(strongly ionized substances). The environment specifications should comply with relevant international standard and
specifications and the operating range (see Table 12.2 on page183) specified in this manual.
3 Mechanical Installation
29
