Vertiv Liebert EXM2 - Unpacking

3.4 Unpacking
Unpack the UPS and battery packages under the guidance of authorized service engineer. Steps:
1. Remove the packing belt.

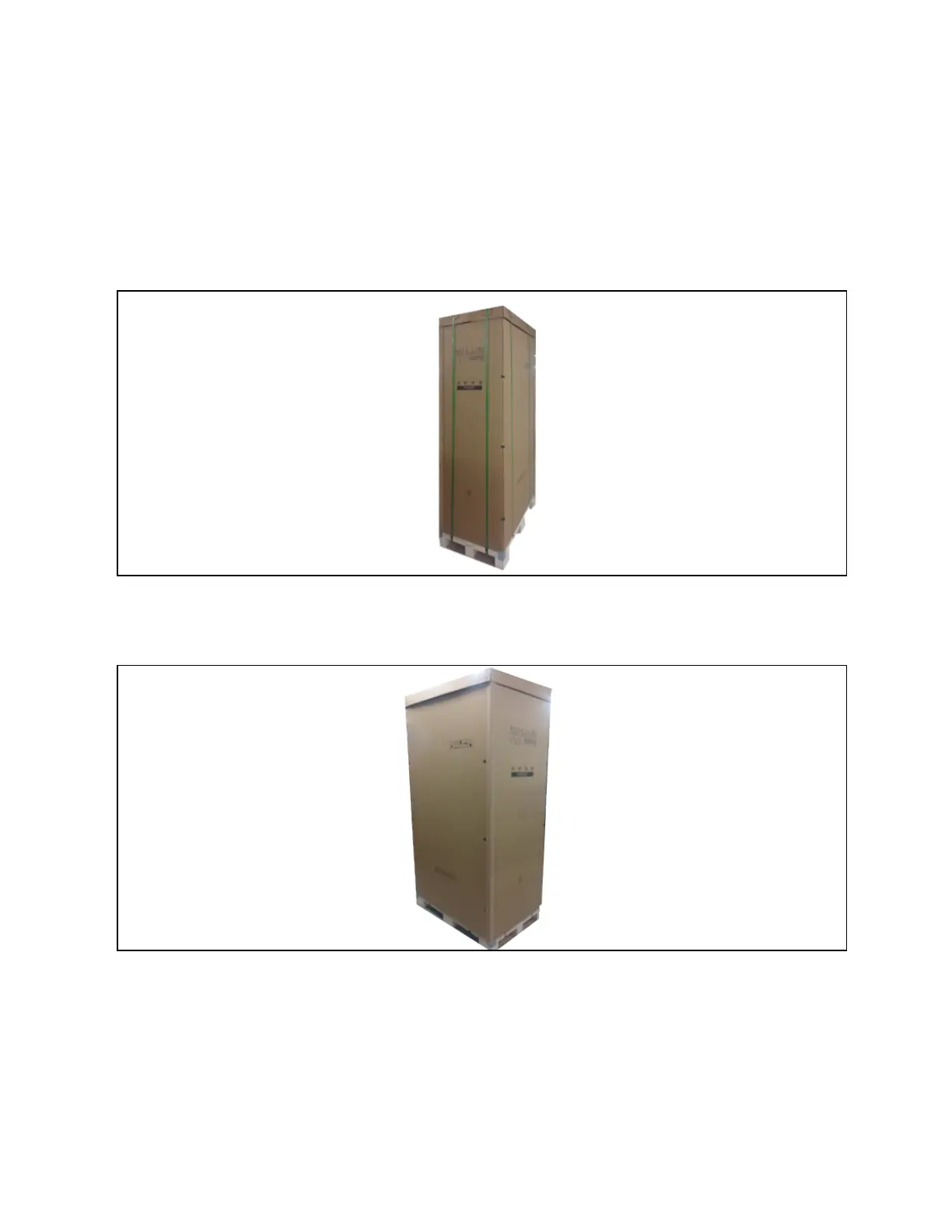

Use a cutting plier to cut off the packing belt, as shown in Figure 3.2 below
Figure 3.2 Packing belt
As shown in Figure 3.3 below, remove the top cover and carton box.
Figure 3.3 Rem oving top cover and carton box
3 Mechanical Installation
27
Vertiv™ Liebert® EXM2 UPS User Manual
