5.2.2 Vertiv Liebert EXM2 Touchscreen Control Panel Components
The main areas of the Vertiv™ Liebert® EXM2 Touchscreen Control Panel are shown in Figure 5.2 below. The display
arrangement and the information displayed can be changed. At log-in for all access levels, the Vertiv Liebert EXM2
Touchscreen Control Panel opens to the STATUS screen in graphic display. The STATUS screen will show the animated
mimic and system status readings at each log-in level. The appearance will differ only in the function menus displayed (see
Figure 5.3 below).

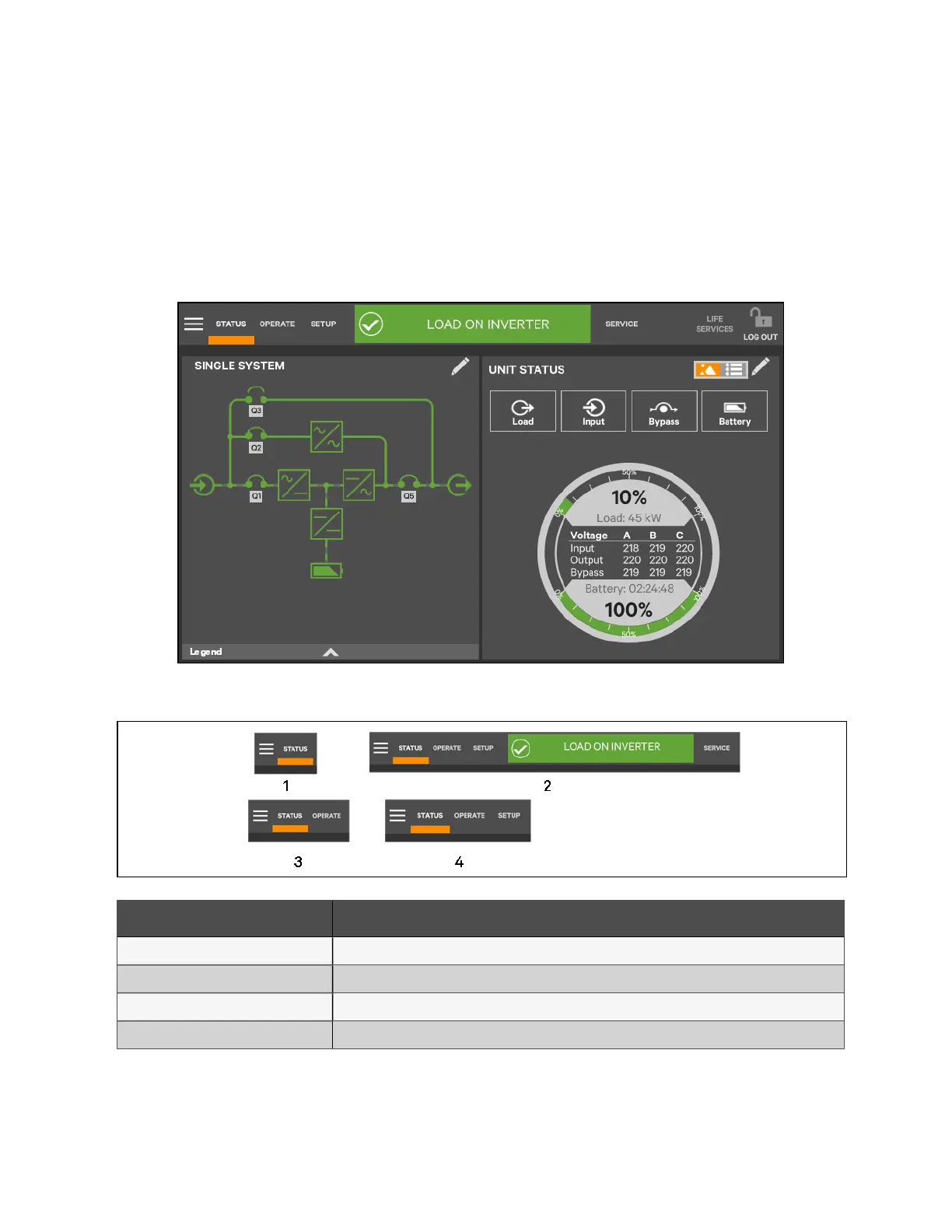

Figure 5.2 Interface o verview — ST A T U S screen; graphic display
Figure 5.3 Control display by access level
N o. Description
1 Observer level (or no log-in)
2 Service level
3 Operator level
4 Administrator level
Information and control are different under each Function Menu. The Function Menus displayed are specific to the access
level.
5 Operator Control and Display Panel
60
Vertiv™ Liebert® EXM2 UPS User Manual
