• STA TU S: Condition of the UPS components and data affecting operation and performance; visible to all access
levels.
• O P ERA TE: UPS operation controls, such as inverter on, inverter off, energy saving status; visible to Operator,
Administrator and Service.
• SETU P: Manage permissions through PINs; visible to Administrator and Service.
• SERV ICE : Input wiring and breaker configuration, protocol used and battery charging method; visible to
Service.
Context M enu
The Context Menu, available by touching the icon at the top left corner of the interface, displays information about the UPS
and permits changing various settings. The functions possible through the Context Menu are determined by the user’s access
level and on the Function Menu that is active (see Figure 5.4 below).
The menus under Display Options on STATUS, for example, differ for each access level. Some information available through
the Context Menu, such as alarms and run hours, are available through other areas of the Vertiv™ Liebert® EXM2
Touchscreen Control Panel.

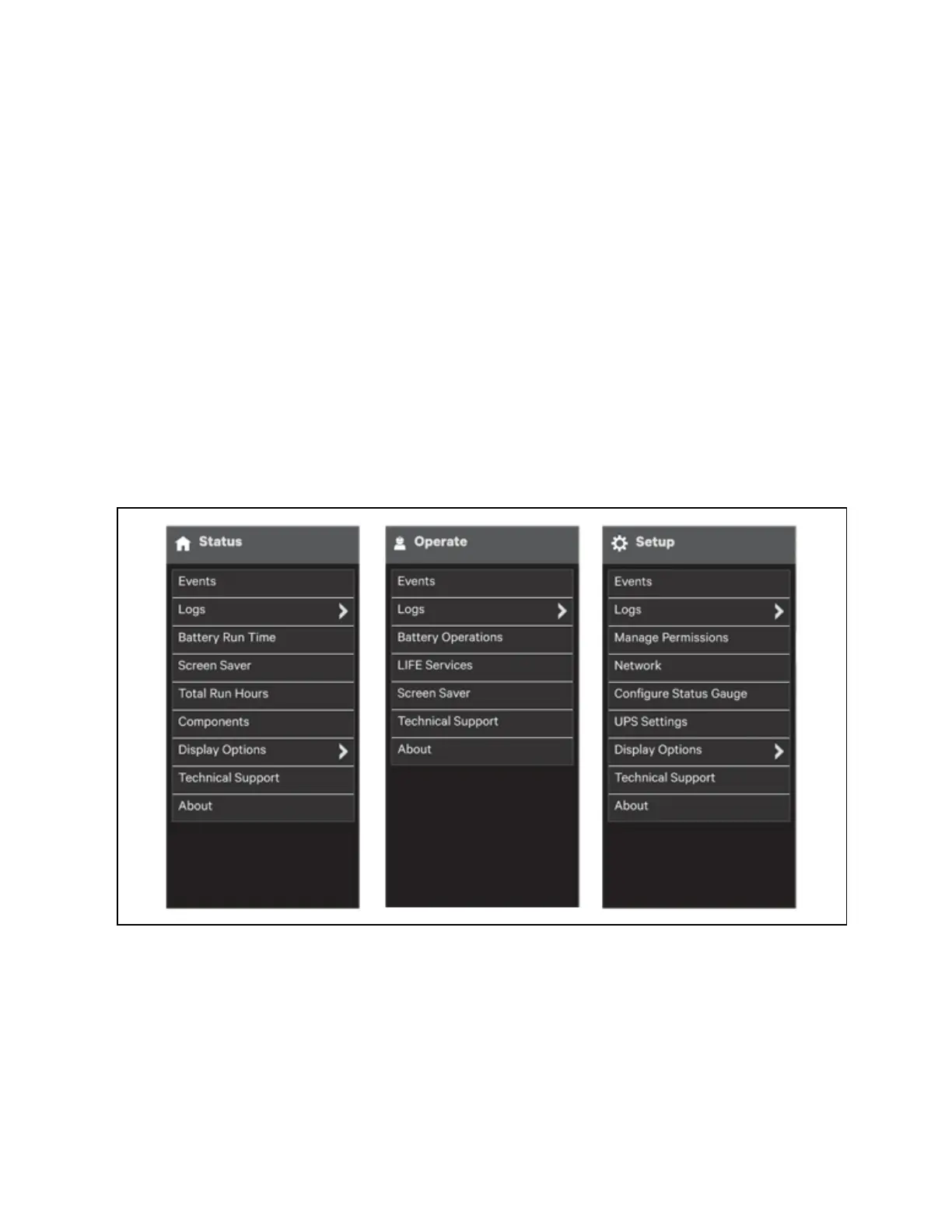

Figure 5.4 Context M enus
Touching a menu item will reveal data or expand the menu to show additional options.
• Alarms: Date and time of occurrence, type of alarm, Event ID, component affected and description; see also Using
the Edit Icon to Customize Layout; same options for all access levels except Observers cannot acknowledge
alarms.
• Logs: UPS Event Log with date and time of occurrence, type of event, Event ID, status; component affected and
description; see also Using the Edit Icon to Customize Layout; same options for all access levels
• Battery Run Time: Battery Cycle Monitor with duration and count; same options for all access levels
5 Operator Control and Display Panel
61
Vertiv™ Liebert® EXM2 UPS User Manual
