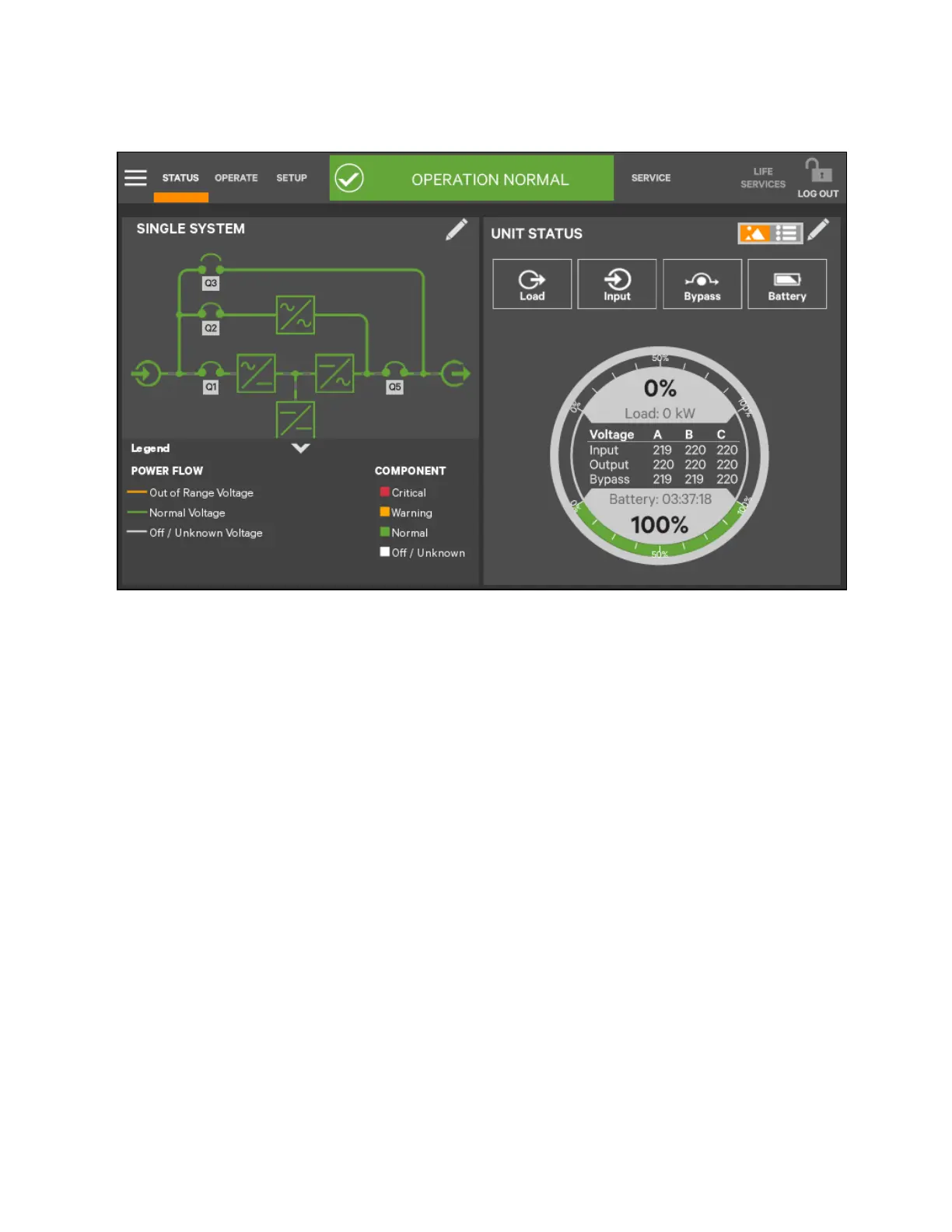

Figure 5.5 M im ic display, norm al operation
UN IT STA TU S Pan e Com ponents
The UNIT STATUS pane is identical for all PIN access levels (see Figure 5.6 on the next page) Observers will not have the
pencil edit icon. In the default graphic view, the UNIT STATUS pane shows:
• Status Gauge-- Connected load shown in kW and as a percentage of capacity; input, output and bypass voltage
for each phase (default data may be changed; see Viewing UPS Data with the Status Gauge
• Input Detail Icon
• Battery Detail Icon
• Bypass Detail Icon
• Load Detail Icon
• Environmental Detail Icon
Touching any of the detail icons reveals additional data about that selection in the opposite pane. The data pane may be
closed by touching the Close radio button or by touching the same or another detail icon. The read-only information is
available to all access levels (see Figure 5.7 on the next page).
N O T E: If the Status Gauge is show ing, no m ore than fou r detail icons will be visib le at a tim e.
Rem oving the Status G auge perm its show ing all five detail icon s. The view m ay be cu stom ized to
show fewer than four.
5 Operator Control and Display Panel
63
