Vertiv | SmartCabinet | User Manual 122
System Operation

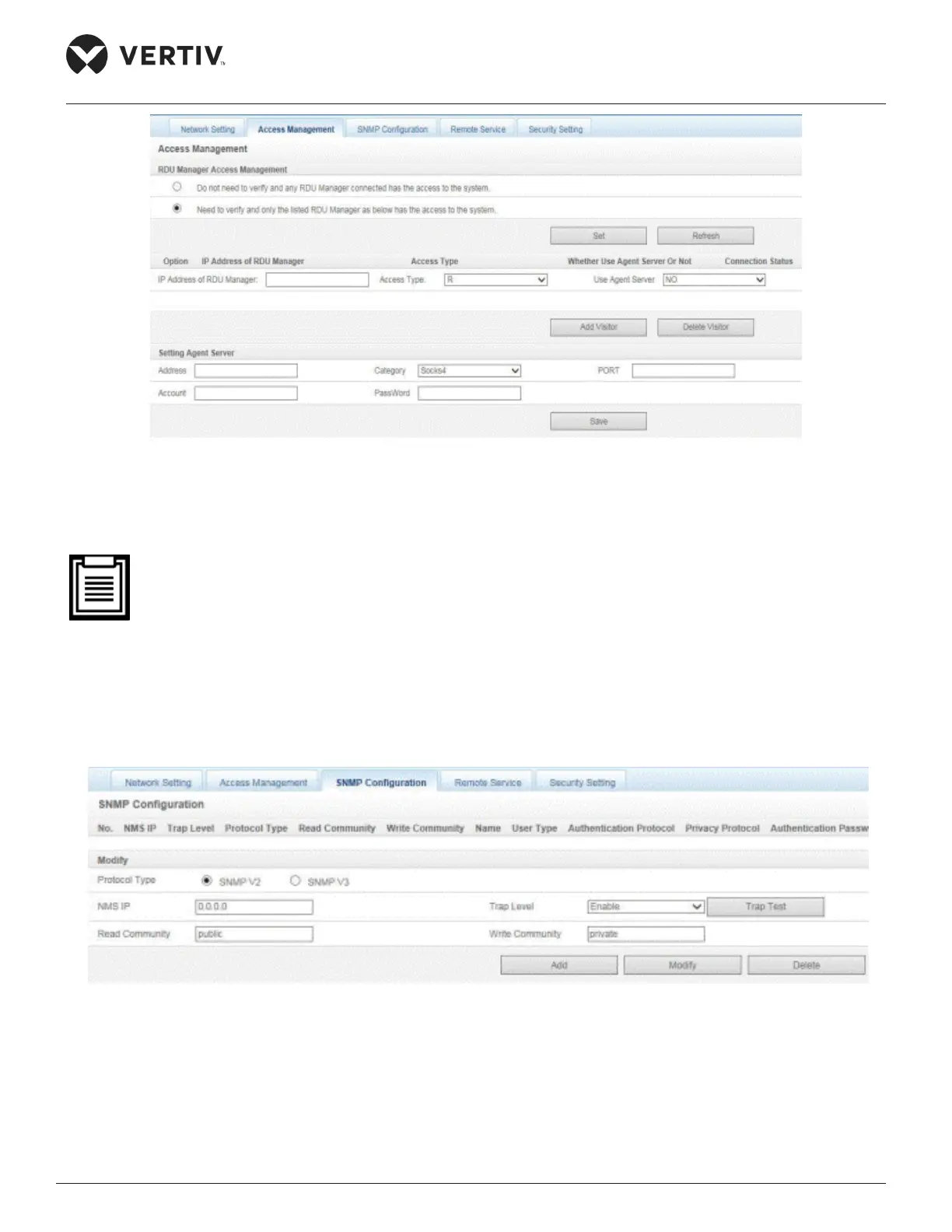

Figure 4-97 Access Management
Enter the IP address of the RDU manager and click on Add Visitor to add a visitor in the system.
• A maximum of 3 RDU managers can be added to the system.
• While adding a visitor, if an agent is to be used, the agent server conguration must be set.
SNMP Conguration
The MSC intelligent monitoring system supports both V2 and V3 versions of the SNMP agent. Refer
Figure 4-98 to view the SNMP V2 setting.
Figure 4-98 SNMP V2 setting
» For SNMP V2, enter the NMS IP and set the Trap Level to Enable or Disable.
»
» Click on Add to add the NMS.
