Vertiv | SmartCabinet | User Manual 29
System Installation

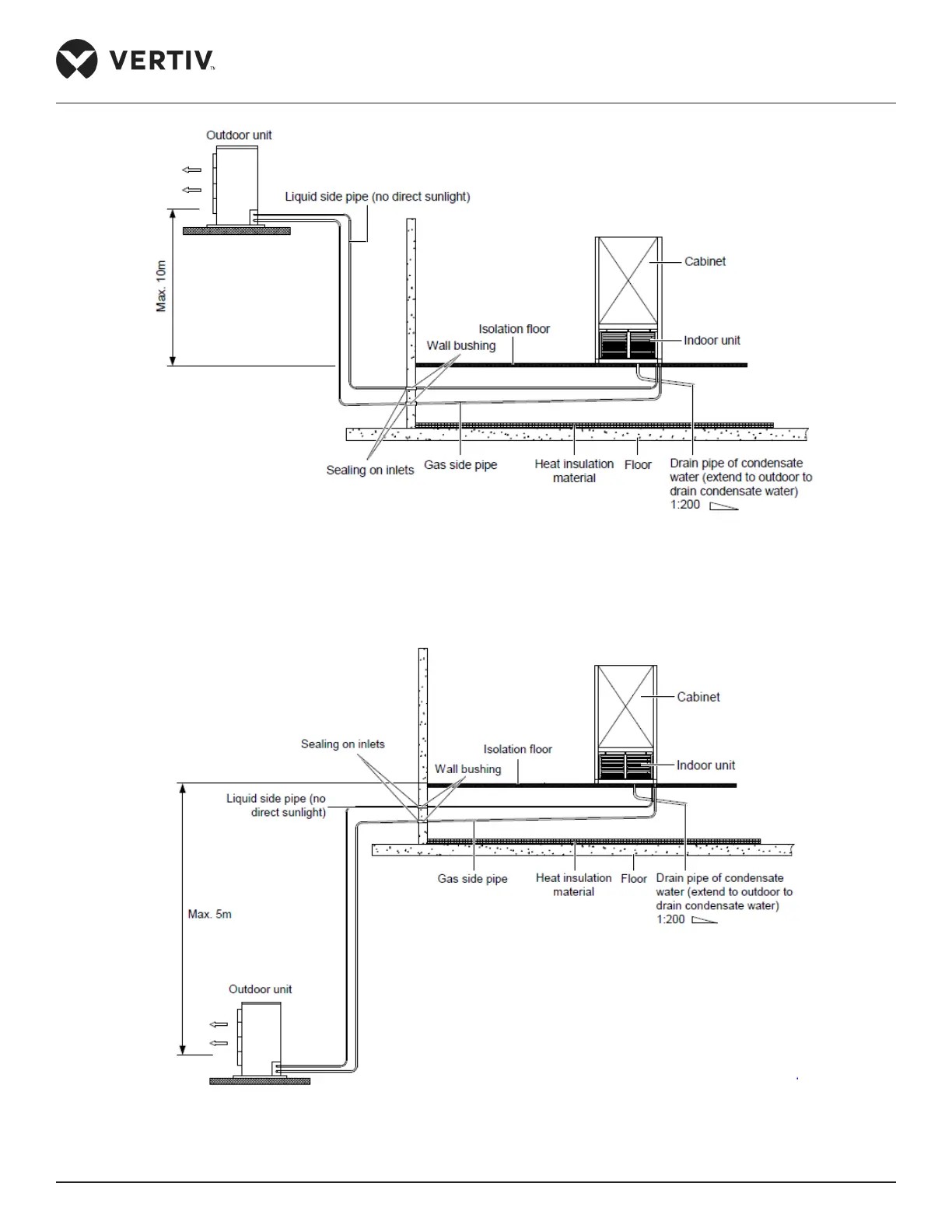

Figure 2-20 The Outdoor unit is installed higher than the indoor unit
Figure 2-21 shows the scenario where the outdoor unit is installed lower than the indoor unit:
Figure 2-21 The Outdoor unit is installed lower than the indoor unit
