Vigilant MX1 - Test Alarm Devices

Document: LT0344 Vigilant MX1 Operator Manual
Issue 2.4 8 August 2017 Page 8-11

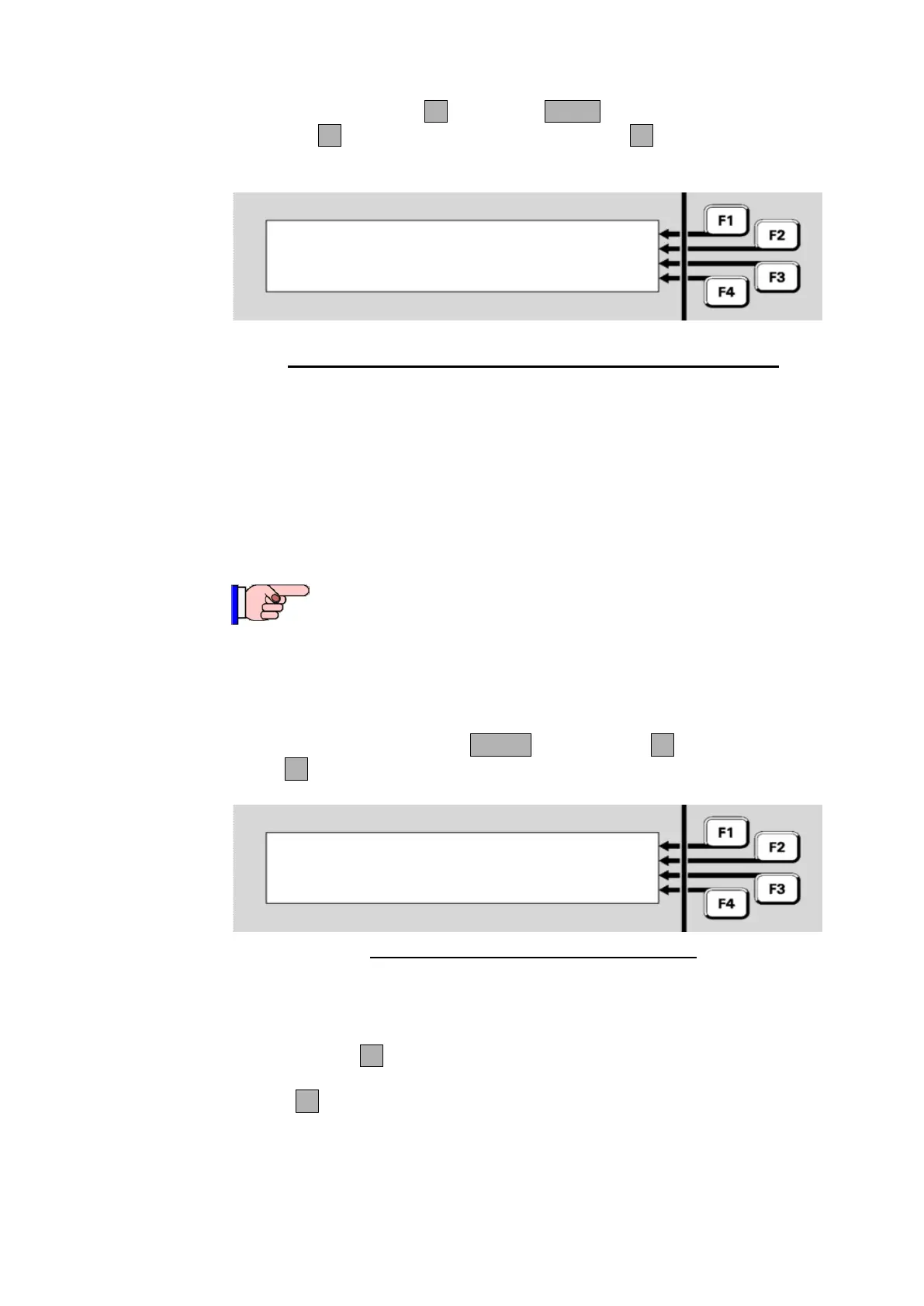

Press the INITIATEF4 option and MENU twice so that a
SYSTEMF1 option is shown. Press SYSTEMF1 to show the following
screen.
MX1 Vv.vv
Firmware CRC: xxxxxxxx
Config 1 CRC: xxxxxxxx yyyy
Config 2 CRC: xxxxxxxx yyyy
Fig 8-12 – Tests System Screen Shows Firmware and Config CRCs
The top line shows the MX1 Controller firmware version, Vv.vv. The
second line shows the firmware CRC. The third and fourth lines show
the internal checksum (xxxxxxxx) and CRC (yyyy) for the two
configuration datafiles. The CRC of the datafiles is the CRC as shown by
the SmartConfig Show CRC command and can be used to confirm the
datafiles are identical or the same as the file on the PC.
This function requires Access Level 2.
The Test Alarm Devices command allows all the alarm devices to be
operated simultaneously, for example, during a trial evacuation of the
building. The alarm devices operate until the test is stopped.
From the base display press TESTS, INITIATEF4 and press ALARM
DEVF3 so the alarm devices test status screen is shown.
Alarm Devices Test: | START
Inactive |
|
|
Fig 8-13 – Alarm Devices Test Status Screen
This shows the status of the test (Inactive or Active) and allows the test
to be started (if the test is inactive) and stopped (if the test is active).
Press STARTF1 to initiate the test – all alarm devices will operate
unless they have been disabled. Conduct the test and then press
STOPF4 when complete.
The test can also be started by OpOn testing point 241.1.0 (the Alarm
Devices point) and stopped by resetting this point.
