Vigilant MX1 - Recalling Off-Normal Points and Zones

Document: LT0344 Vigilant MX1 Operator Manual
Issue 2.4 8 August 2017 Page 5-3
The POINTSF1 option in the Recall menu (see Figure 5-2) allows the
off-normal points to be recalled.

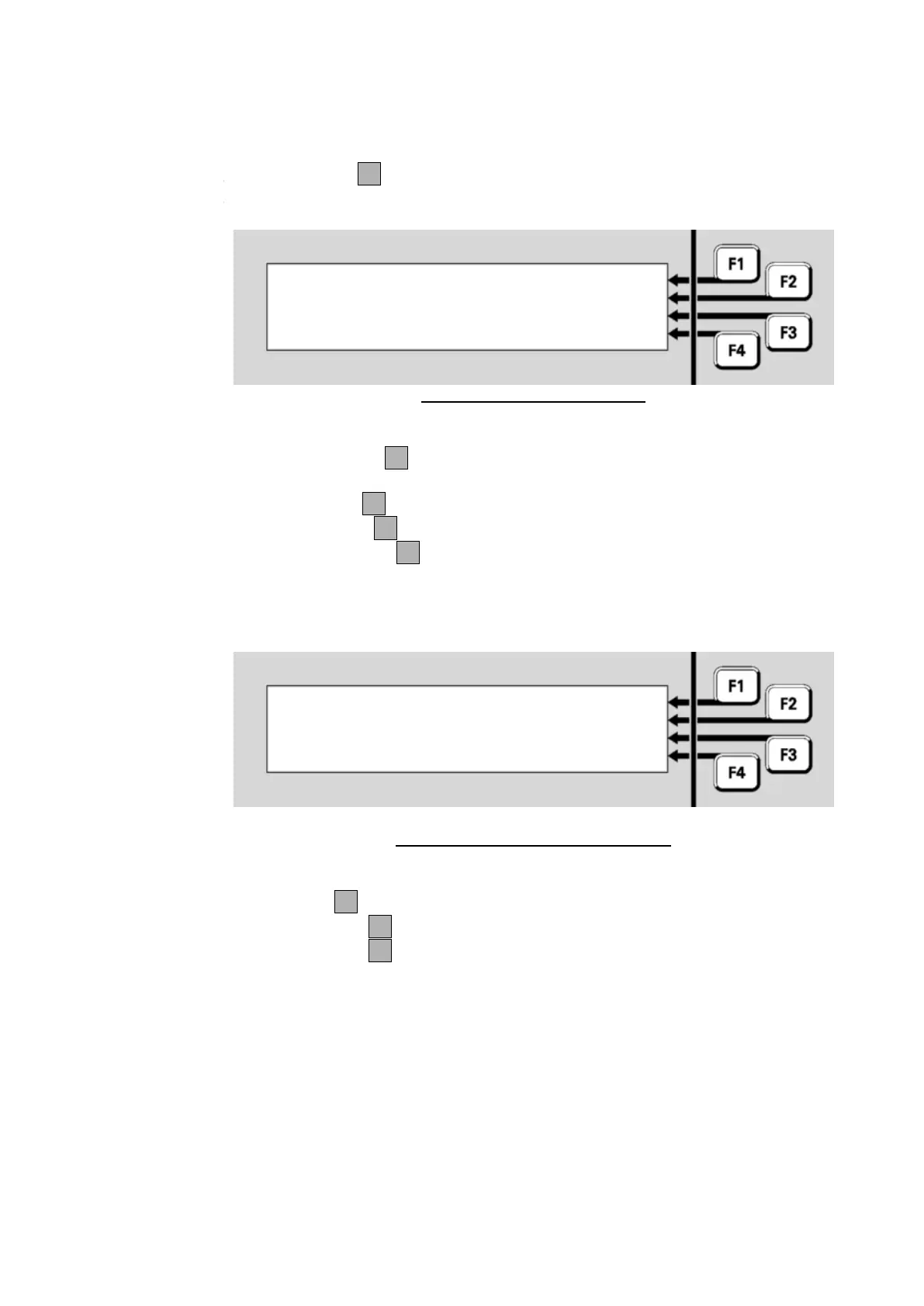

Fig 5-3 – Recall Points Display
Press:
 OFF NMLF1 to show all the off-normal points (i.e., not in a
Normal state)
 DIRTYF2 to show all points in the dirty condition
 FAULTSF3 to show all points in fault
 DISABLESF4 to show all disabled points.
If your panel is connected to a network you will see the following menu
after you select one of the menu items:
Fig 5-4 – Recall Points Network Menu
Press:
 LOCALF1 to show the selected points on the local MX1
 ALL SIDSF2 to show the selected points on the network
 ENTR SIDF3 to show the selected points on a particular MX1
panel. This will prompt you to enter the SID of the panel to search.
The points are displayed in numerical order, starting with the lowest
numbered point. An example is shown in Figure 5.5.
Recalling Off-Normal Points and Zones
O
f
f
-
N
o
r
m
a
l
P
o
i
n
t
s
Recall points : xxxxx
|
LOCAL
|
ALL SIDS
|
ENTR SID
Select SIDs to search |
Recall points
|
OFF NML
|
DIRTY
|
FAULTS
|
DISABLES
Recall
Points
