Using the VX65
VX65 User Guide
43 / 86

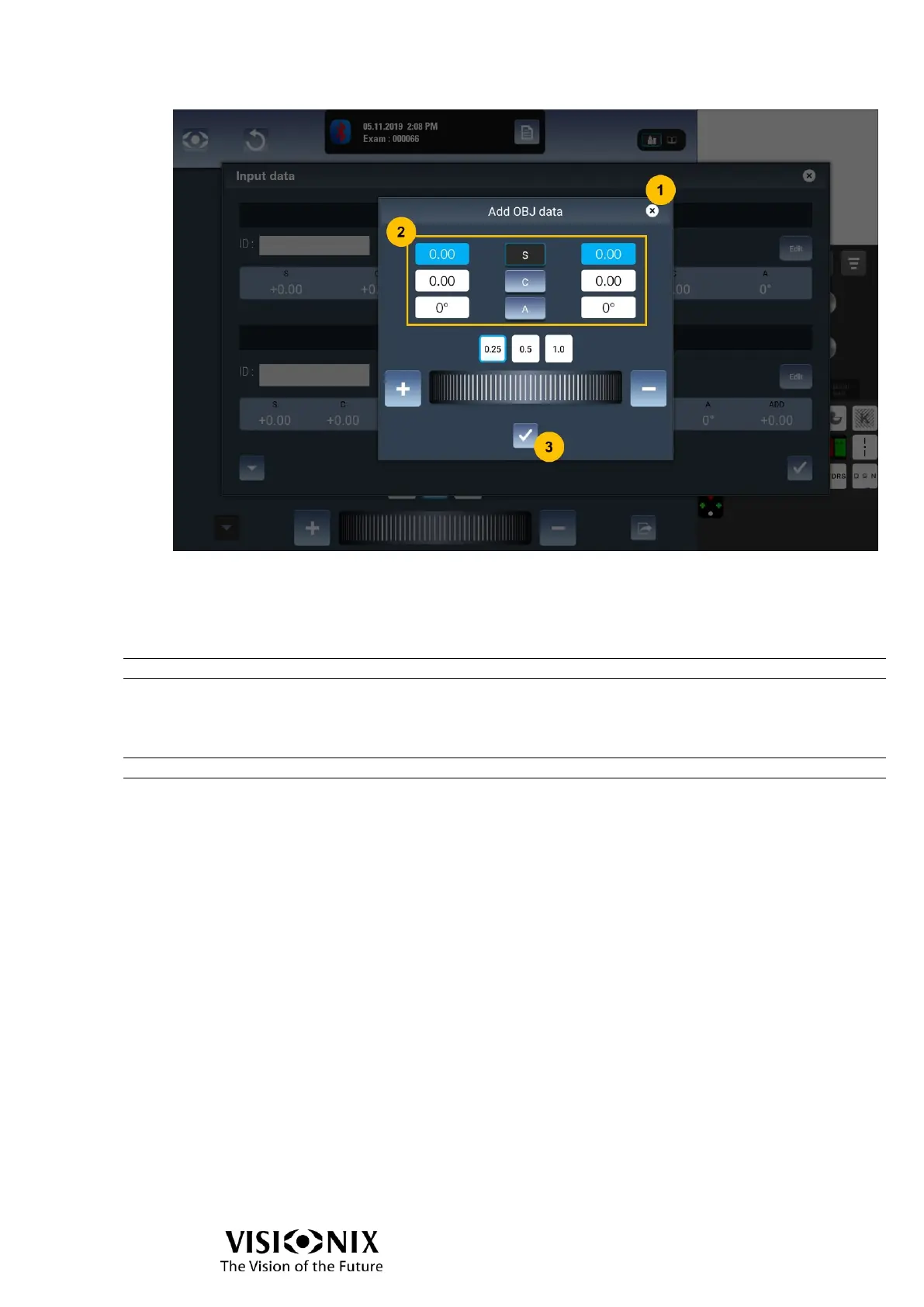

Add OBJ data window
The functionalities of selection and modifications are the same than in automatic interface.
(1) Close the window without saving the changes.
(2) OBJ data: sphere, cylinder and axis.
(3) Validate the modifications and close the window.
6
LM data area
7
ID of LM (job number of LM)
When “Load data by ID” is activated in the setting, there is a field to select the ID of LM data
to load.
Else, it displays the ID of selected data.
8
Values of LM
9
Set manually LM data button
Tap on this area opens Add LM data window.
